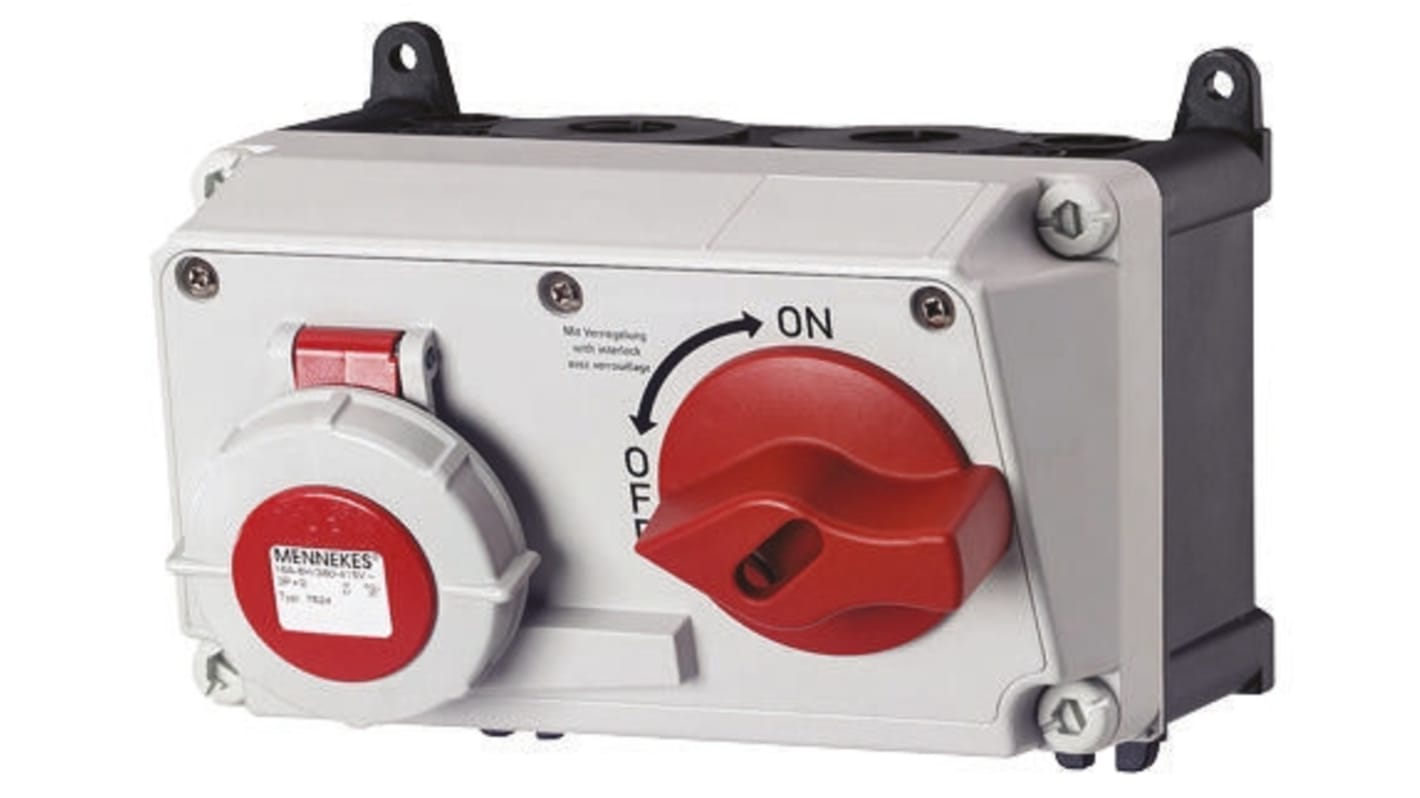

MENNEKES Right Angle Switchable IP67 Industrial Interlock Socket 3P+E, Earthing Position 6h, 16A, 400 V

  • RS-artikelnummer 679-7000
  • Tillv. art.nr 7624RS
  • Tillverkare / varumärke MENNEKES
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): DE
Produktdetaljer

Horizontal

16A surface mounting switched socket outlets.

Two M25mm conduit entries on top (one closed) and two at the bottom (closed)
IP44 or IP67 options available

Specifikationer
Attribute Value
Plug/Socket Socket
Pole Format 3P+E
Switchable Yes
Colour Red
IP Rating IP67
Voltage Rating 400 V
Current Rating 16A
Body Orientation Right Angle
Dimensions 225 x 168 x 185mm
Earthing Position 6h
Body Material PC
Depth 185mm
Length 225mm
Width 168mm
2 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
3 159,34 kr
(exkl. moms)
3 949,18 kr
(inkl. moms)
Enheter
Per unit
1 +
3 159,34 kr
