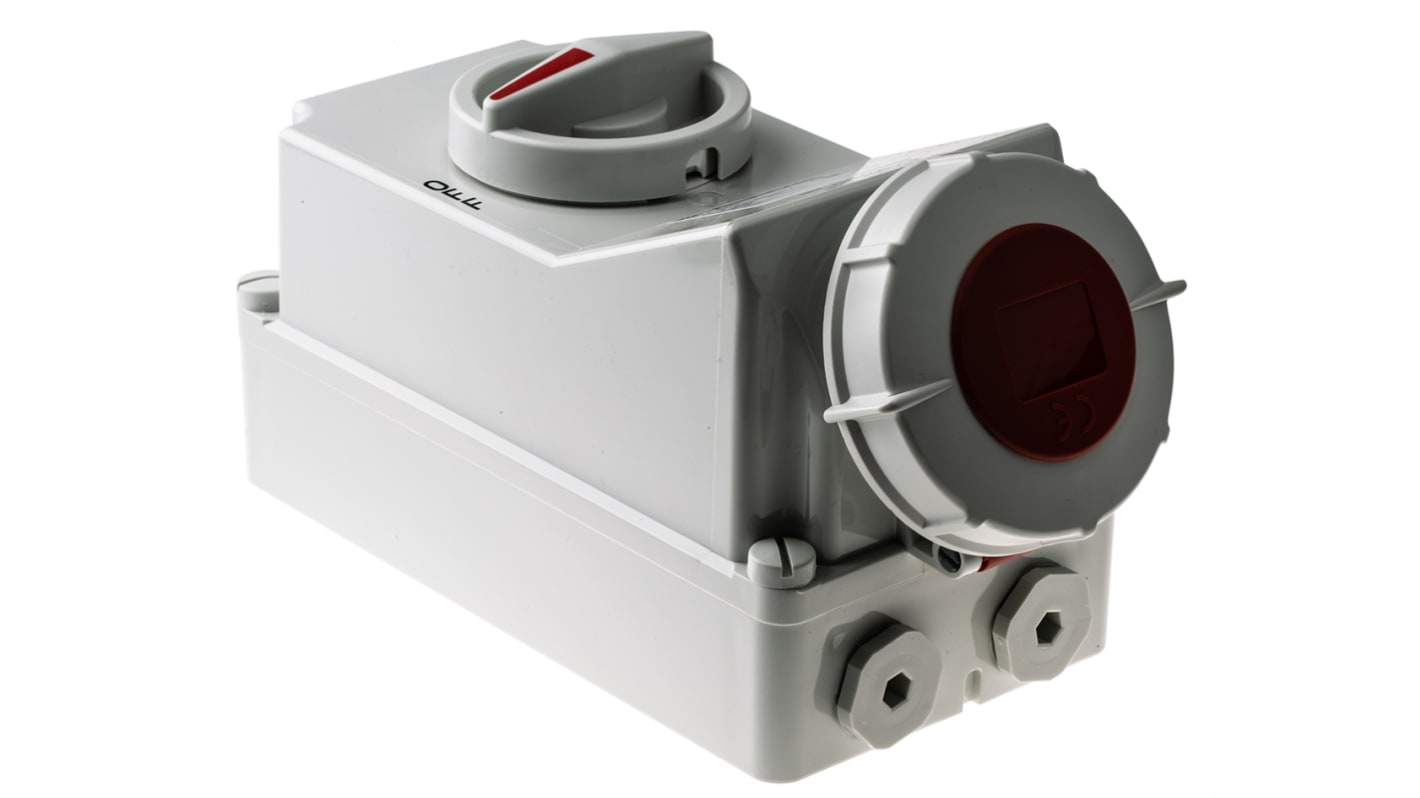

MENNEKES Switchable IP67 Industrial Interlock Socket 3P+E, Earthing Position 6h, 32A, 400 V
- RS-artikelnummer:
- 367-4070
- Tillv. art.nr:
- 5605A
- Tillverkare / varumärke:
- MENNEKES
Tillfälligt slut i lager – restorder för leverans 2024-05-02
Lagt till varukorgen
Pris (ex. moms) Varje
3 550,36 kr
(exkl. moms)
4 437,95 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 3 550,36 kr |
Alternatives
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.
- RS-artikelnummer:
- 367-4070
- Tillv. art.nr:
- 5605A
- Tillverkare / varumärke:
- MENNEKES
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Vertical
Fully interlocked switched (phase) sockets give enhanced electrical safety.
Switch cannot be energised until the plug is inserted
Plug cannot be withdrawn with the switch in the ON position, which prolongs contact life
16A - 63A can be padlocked in the OFF position
Housings are moulded from thermoplastic materials, giving insulation, strength and durability properties
Continuous polyurethane gasket between lid and base
Neutral block must be removed first before fitting auxillary contact block
Plug cannot be withdrawn with the switch in the ON position, which prolongs contact life
16A - 63A can be padlocked in the OFF position
Housings are moulded from thermoplastic materials, giving insulation, strength and durability properties
Continuous polyurethane gasket between lid and base
Neutral block must be removed first before fitting auxillary contact block
* Has metric threads on mounting box cable entries
Standards
BS4343 (IEC/EN 60309-2)
Specifikationer
Attribute | Value |
|---|---|
| Plug/Socket | Socket |
| Pole Format | 3P+E |
| Switchable | Yes |
| Colour | Red |
| IP Rating | IP67 |
| Voltage Rating | 400 V |
| Current Rating | 32A |
| Body Orientation | Straight |
| Dimensions | 268 x 118 x 152mm |
| Earthing Position | 6h |
| Body Material | Thermoplastic |
| Depth | 152mm |
| Length | 268mm |
| Width | 118mm |
