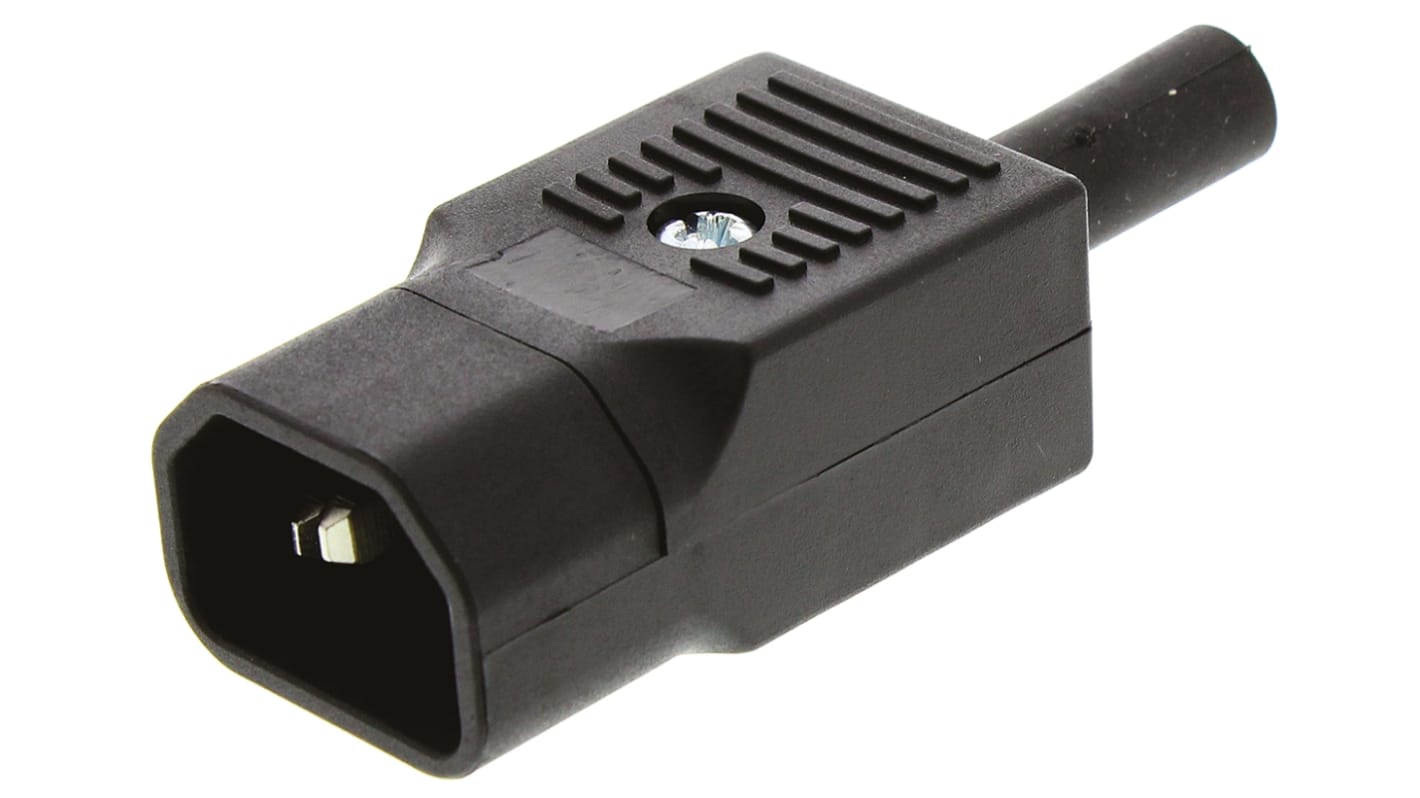

Bulgin C14 Cable Mount IEC Connector Male, 10A, 250 V ac

  • RS-artikelnummer 449-922A
  • Tillv. art.nr PX0686
  • Tillverkare / varumärke Bulgin
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TN
Produktdetaljer

Rewireable IEC Plugs (C14)

This Bulgin brand IEC C14 plug is a cable mounted connector that is compatible with C13 plugs, meaning it has a wide variety of applications, including desktop computers and instrument amplifiers. The accessible screw terminals result in a connector that is convenient to rewire if necessary.

Note

Retaining clip available separately: RS stock no. 195-928.

Approvals

UL recognised component, CSA certified, VDE, IMQ, BSI

//media.rs-online.com/t_line/L449281-01.gif

Bulgin IEC Plug

The Bulgin IEC plug has a straight male C14 connector and a cable mount device. The plug connector is compatible with the C13 plug. It has a voltage rating of 250VAC and current rating of 10A.

Note:
Retaining clip is available separately.

Features and Benefits

Easy to connect and rewirable
Screw terminal
Contact resistance is less than 10mΩ
Insulation resistance is greater than 10⁴MΩ
Operating temperature ranges between -40°C and 70°C

Applications

Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives

Certifications

UL approved
CSA certified
VDE
SEMKO
IMQ

Approvals

UL recognised component, CSA certified, VDE, SEMKO, IMQ

Specifikationer
Attribute Value
IEC Connector Type C14
Mounting Type Cable Mount
Gender Male
Current Rating 10A
Body Orientation Straight
Termination Method Screw
Number of Fuses None
Voltage Rating 250 V ac
Rewireable Yes
Shuttered No
1000 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 100)
24,493 kr
(exkl. moms)
30,616 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
100 - 100
24,493 kr
2 449,30 kr
200 - 300
23,158 kr
2 315,80 kr
400 - 900
21,961 kr
2 196,10 kr
1000 +
21,23 kr
2 123,00 kr
