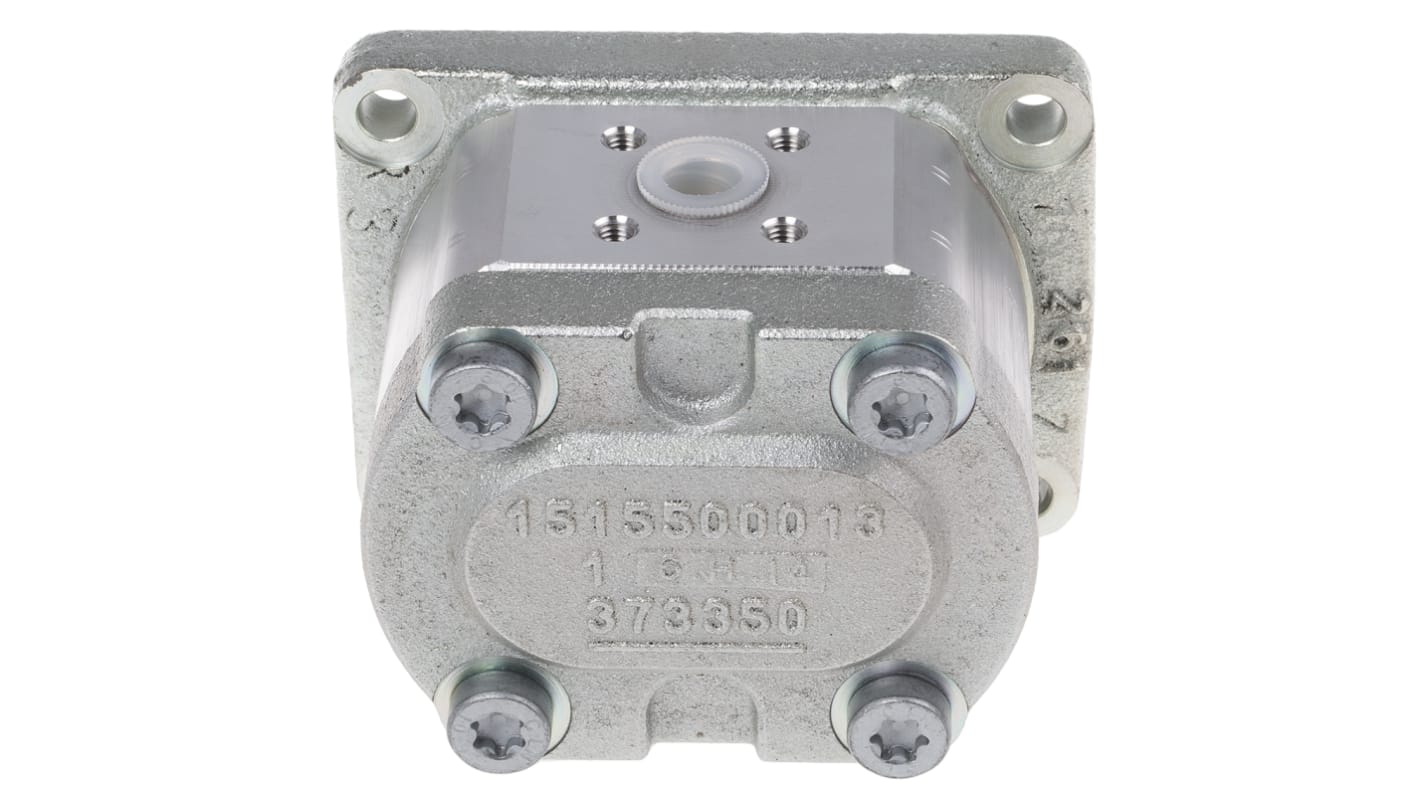

Bosch Rexroth Hydraulic Gear Pump 0510225006, 4cm3

  • RS-artikelnummer 511-5652
  • Tillv. art.nr 0510225006
  • Tillverkare / varumärke Bosch Rexroth
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): DE
Produktdetaljer

Self Aspirating External Gear Pump, 1:5 Tapered Shaft

Plain bearings cater for high load applications
To assist with installation, a range of flanged fittings for pipe connection is available separately, in right angle pattern
Each fitting is supplied complete with fixing screws, 0-ring, cutting ring and retaining nut

Note

Maximum permissible degree of contamination of pressure fluid to NAS 1638, Class10. To achieve this, we recommend a filter with a minimum retention rate of B20 ≥100. To ensure a long service life; filtration to NAS 1638, Class 9 is recommended - this is achievable with a filter retention rate of B10≥100.

Supplied with

Instruction leaflet.

//media.rs-online.com/t_line/L728758-01.gif
//media.rs-online.com/t_line/L728764-01.gif
//media.rs-online.com/t_line/L728770-01.gif
//media.rs-online.com/t_line/LD728758-01.gif
//media.rs-online.com/t_line/LD728764-01.gif
//media.rs-online.com/t_line/LD728770-01.gif

Gear Pumps

Direction of rotation is clockwise. Nominal displacement is between 4cm³/rev and 22.4cm³/rev for maximum working pressures. Seal material is NBR (nitrile rubber). Fluid working temperature range is -15°C to +80°C. Recommended fluid is mineral oil and recommended viscosity is 10mm²/s to 300mm²/s.

Specifikationer
Attribute Value
Manufacturer Series AZP
Displacement 4cm³
Direction of Rotation Clockwise
Maximum Rotational Speed 4000rpm
Minimum Rotational Speed 1000rpm
Minimum Speed At Maximum Pressure 1200rpm
Maximum Operating Pressure 280 bar
Body Dimensions 85 x 90 x 120mm
Weight 3.2kg
Body Height 120mm
Body Length 85mm
Body Width 90mm
2 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
2 255,98 kr
(exkl. moms)
2 819,98 kr
(inkl. moms)
Enheter
Per unit
1 +
2 255,98 kr
