Parker Hydraulic Filter IL.1115 IL, 90L/min 1 in

  • RS-artikelnummer 196-2707
  • Tillv. art.nr IL.1115
  • Tillverkare / varumärke Parker
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
Produktdetaljer

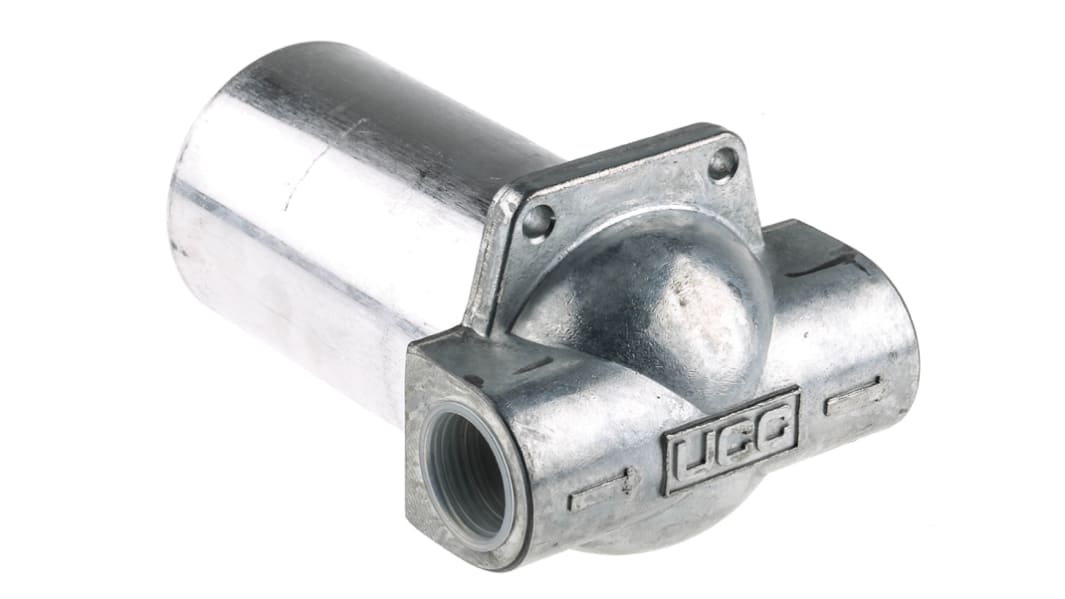

Hydraulic In-line Filter

Designed for use with mineral and petroleum based fluids, fuel oils, cutting oils, machine oils etc.
Fitted into the return pipe work of the fluid reservoir, the in-line filter prevents fluid contamination
The tube and cap are made from Zintec and bowl from BS 1470/1050A.1987 aluminium
Each filter is supplied complete with a Zintec stainless steel 125micron element
Replacement elements available as separate items
Flows upto 90 l/min – G1 Port (1 in. BSP)
Working temperature -30°C to +80°C
Nitrile Seal
Maximum working pressure 7 bar

//media.rs-online.com/t_line/L196270-02.gif
//media.rs-online.com/t_line/L196271-02.gif
//media.rs-online.com/t_line/LD196270-01.gif
//media.rs-online.com/t_line/LD196271-01.gif
//media.rs-online.com/t_line/LF196271-10.gif
//media.rs-online.com/t_line/LI196270-02.gif
//media.rs-online.com/t_line/LI196271-02.gif
Specifikationer
Attribute Value
Manufacturer Series IL
Filtration Size 125µm
Maximum Flow Rate 90L/min
Connection Thread G 1
Maximum Operating Pressure 7 bar
Thread Standard G
Thread Size 1in
Maximum Operating Temperature +80°C
Minimum Operating Temperature -30°C
13 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
787,13 kr
(exkl. moms)
983,91 kr
(inkl. moms)
Enheter
Per unit
1 +
787,13 kr
