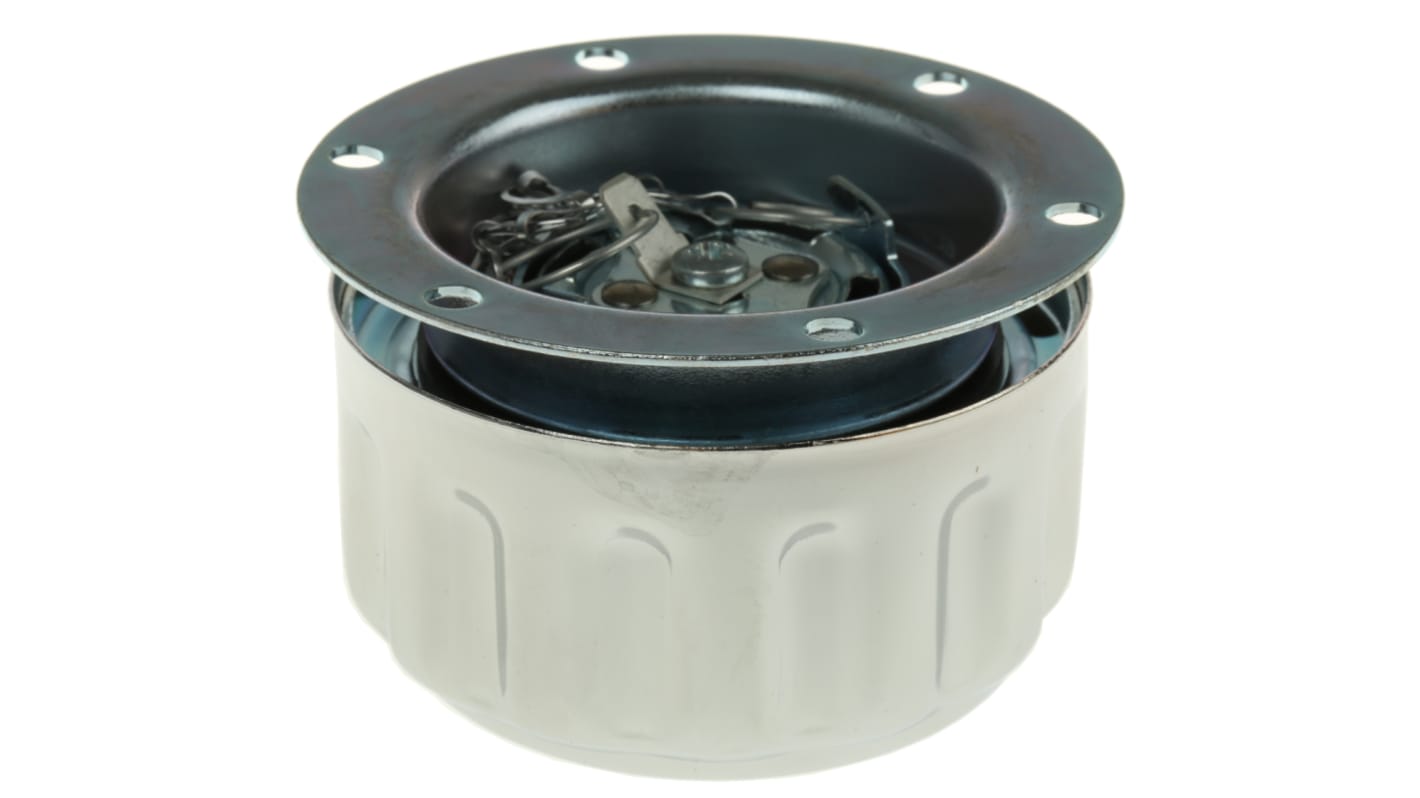

Parker Hydraulic Filler Breather Filter PAB.1730.10.5
- RS-artikelnummer:
- 331-9521
- Tillv. art.nr:
- PAB.1730.10.5
- Tillverkare / varumärke:
- Parker
6 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 018,31 kr
(exkl. moms)
1 272,89 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 1 018,31 kr |
| 5 - 9 | 987,23 kr |
| 10 + | 955,17 kr |
- RS-artikelnummer:
- 331-9521
- Tillv. art.nr:
- PAB.1730.10.5
- Tillverkare / varumärke:
- Parker
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
Produktdetaljer
Metal Cap
The AB breather fillers from Parker are lightweight and compact reservoir solutions. The moulded, non-corrodible, glass filled nylon air breathers/fillers combine strength and design.
Together with metal filler-breathers, air breathers and lockable filler-breathers, a quality reservoir solution is provided.
Together with metal filler-breathers, air breathers and lockable filler-breathers, a quality reservoir solution is provided.
Features and Benefits
• Moulded in non-corrodible, glass filled nylon
• Single hole, 6 hole and 3 hole installation
• Screw-on breather range – G1/2 and G3/4
• Compact range – G1/4, G3/8, R1/2 and R3/4
• Metal filler breathers
• Flange mounting type options
• Lockable range for reservoir security and oil protection
• Plated mild steel
• Single hole, 6 hole and 3 hole installation
• Screw-on breather range – G1/2 and G3/4
• Compact range – G1/4, G3/8, R1/2 and R3/4
• Metal filler breathers
• Flange mounting type options
• Lockable range for reservoir security and oil protection
• Plated mild steel
Standards
IP65
Supplied with
Mounting gaskets and self tapping screws
Specifikationer
Attribute | Value |
|---|---|
| To Fit Hole Diameter | 49.5mm |
| Cap Diameter | 76.2mm |
| Cap Material | Metal |
| Filtration Size | 10µm |
| Pressurised | Yes |
| Seal Material | Nitrile Rubber |
| Valve Cracking Pressure | 0.35bar |
| Maximum Operating Temperature | +90°C |
