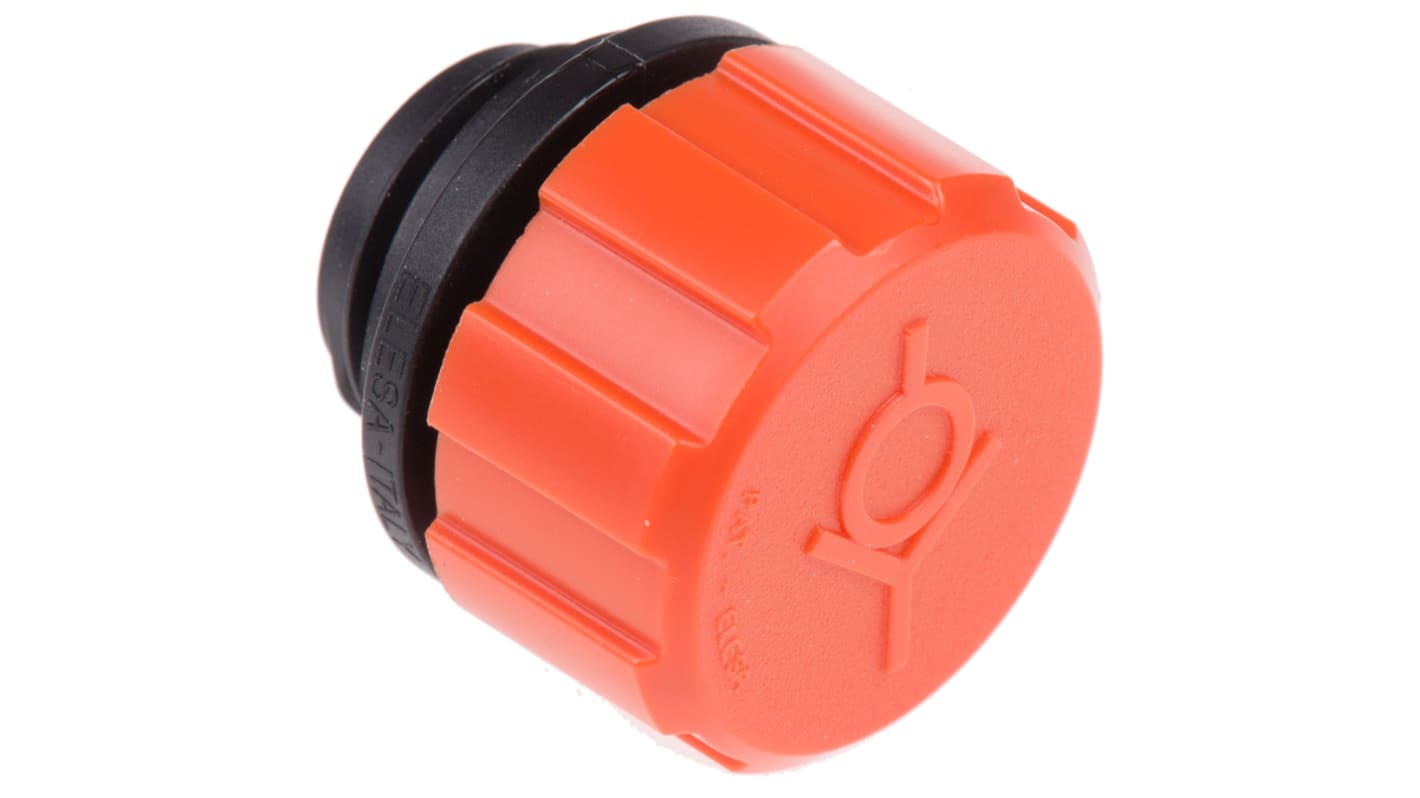

Elesa-Clayton Hydraulic Breather Cap 54671, G 1/2" , 31mm diameter

  • RS-artikelnummer 283-3234
  • Tillv. art.nr 54671
  • Tillverkare / varumärke Elesa-Clayton
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
COO (Country of Origin): IT
Produktdetaljer

Valve Type

Resistant to solvents, oils greases and other chemical agents
Cap has a valve which opens when pressure exceeds 10 mb
This type of valve breather cap is used when air that has exceeded a certain pressure has to be expelled
A sealing disc prevents dust from getting in and oil loss
Polyamide Technopolymer
NBR synthetic rubber seal
Maximum Temperature: 120°C

//media.rs-online.com/t_line/L283321-01.gif
//media.rs-online.com/t_line/LI283321-01.gif
Specifikationer
Attribute Value
Connection Thread G 1/2
Cap Diameter 31mm
Colour Orange
Cap Material Polyamide
Finish Semi Matte
Maximum Operating Temperature +120°C
Thread Size 1/2in
Thread Standard G
115 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
42,10 kr
(exkl. moms)
52,62 kr
(inkl. moms)
Enheter
Per unit
1 - 4
42,10 kr
5 - 9
40,42 kr
10 - 24
39,46 kr
25 +
38,62 kr
