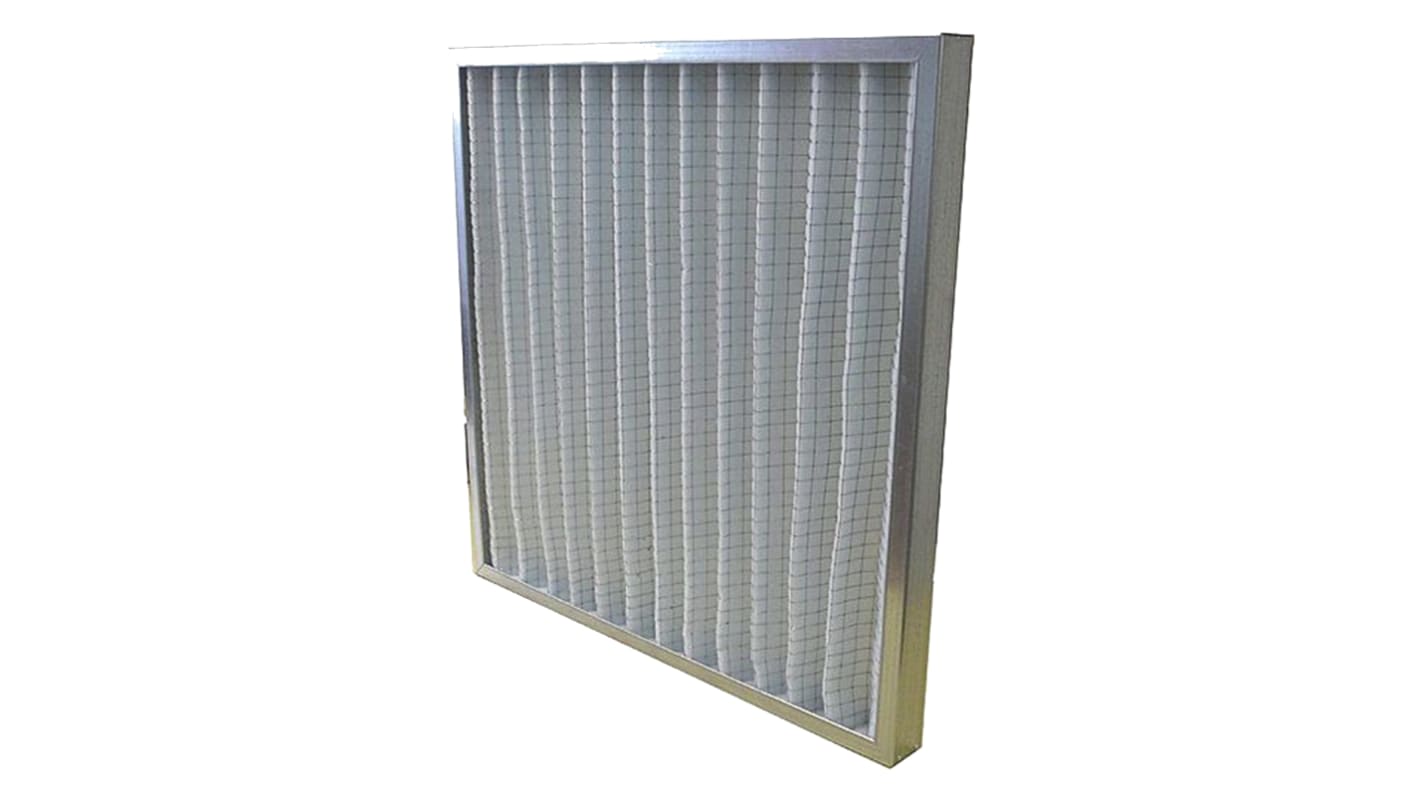

RS PRO PET Pleated Panel Filter, G4 Grade, 490 x 490 x 45mm

RS-artikelnummer:: 840-4703
Tillverkare / varumärke:: RS PRO

RS PRO PET Pleated Panel Filter, G4 Grade, 490 x 490 x 45mm

6 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Var (i ett paket med 6)

597,925 kr

(exkl. moms)

747,406 kr

(inkl. moms)

Enheter	Per unit	Per Pack*
6 +	597,925 kr	3 587,55 kr

RS-artikelnummer:: 840-4703
Tillverkare / varumärke:: RS PRO

Datablad

RS Pro Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: GB

Produktdetaljer

RS PLM4-2 Fire Rated Panel Filters with Galvanised Frames

The RS PLM4 pleated panel filters use media which is fire and toxicity rated to the most stringent European test standards.

These panel filters are constructed by sealing a welded mesh backed pleat pack into a galvanised steel frame. This filter utilises deep loft media to ensure long life, low energy consumption and robust service.

100% PET fibre filter media
Thermobonded non-woven
Moisture resistant
Rolled galvanised steel frame
Mitred frame corners
Rolled frame safety edges

Note

For reference when consulting the datasheet:
840-0685 = PLM4-2-2424
840-0694 = PLM4-2-1224
840-0697 = PLM4-2-2024
840-0691 = PLM4-2-1212
840-4703 = PLM4-2-2020

Approvals

DIN 53 438: K1/F1
NF P92-507: M1
NF F16-101: F1
CP413: COMPLIES

Specifikationer

Attribute	Value
Filter Type	Pleated Panel
Nominal Dimensions	20 x 20 x 2in
Actual Dimensions	490 x 490 x 45mm
Media Area	0.5m²
ISO 16890 Class	ISO-C-85
Filter Grade	G4
Maximum Air Flow	2340m³/h
Initial Pressure Drop	65Pa
Final Pressure Drop	250Pa
Colour	White
Case Material	Galvanised Steel
Media Material	PET
Actual Depth	45mm
Nominal Height	20in
Nominal Dimensions Height x Width	20 x 20 in, 20 x 20 x 2 in
Actual Height	490mm
Nominal Depth	2in
Actual Width	490mm
Nominal Width	20in

RS-artikelnummer:: 840-4703
Tillverkare / varumärke:: RS PRO

RS Pro Datasheet
