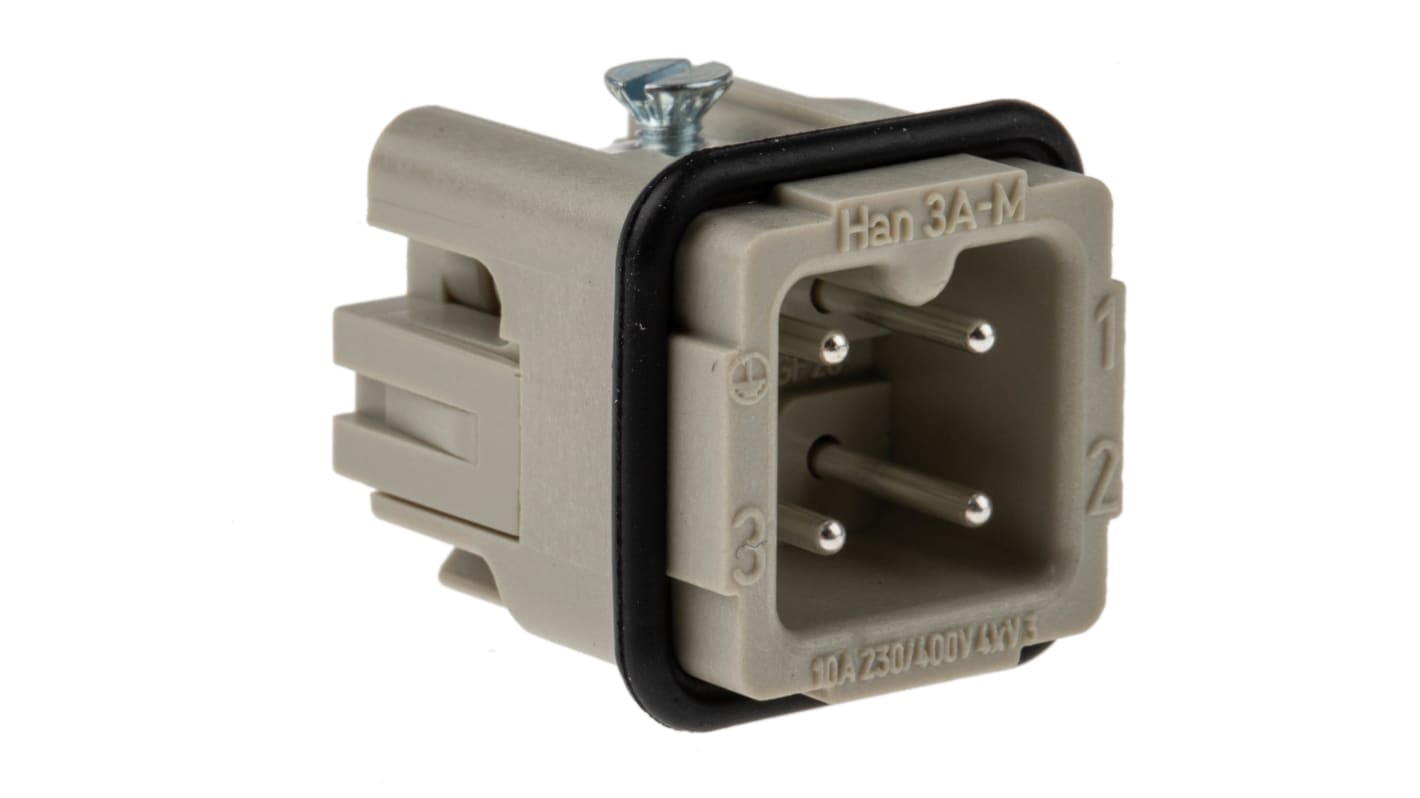

HARTING Han A Heavy Duty Power Connector Insert, 3 contacts, 10A, Male

  • RS-artikelnummer 181-0858
  • Tillv. art.nr 09200032611
  • Tillverkare / varumärke HARTING
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): RO
Produktdetaljer

Han A® Inserts

Harting contact inserts have a wide range of uses. Inserts are selected according to the desired number of poles and voltage and current ratings.

• Slim construction
• Poles: 3-16 (screw connection)

Note

Two 16P + E inserts may be accommodated within a ’Size’ 32A housing (typical stock no 363-7964)

Approvals

UL, CSA, SEV

//media.rs-online.com/t_line/L181048-01.gif
//media.rs-online.com/t_line/LI181085-11.gif

Han A® 10A to 16A Screw Series

These Han A® inserts are available in 10A and 16A current ratings. They are intended for use typically with hoods and housing; RS stock Nos. 114-8024, 181-0662 and 181-0690 and the associated ranges. These hoods and housings are associated to a specific Harting 'Size' number.

Warning

  • These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
Specifikationer
Attribute Value
Type Connector Insert
Number of Contacts 3
Current Rating 10A
Series Han A
Gender Male
Pole Format 3P+E
Voltage Rating 600 V
Mounting Type Cable Mount
Termination Method Screw
Body Orientation Straight
Number of Rows 2
