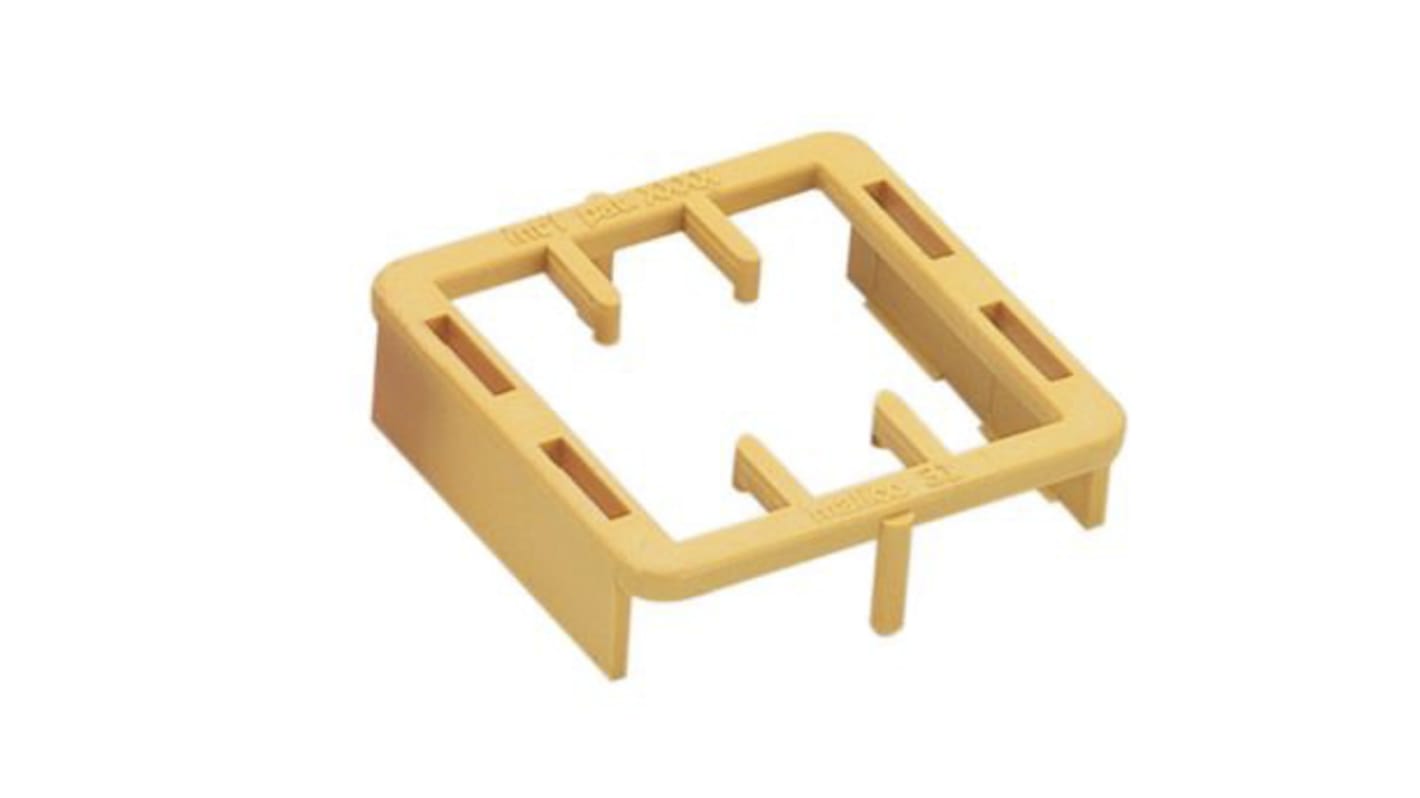

Heatsink Clip for use with MBH29 BGA Heatsink

  • RS-artikelnummer 489-5947
  • Tillv. art.nr CL-Y-29X29
  • Tillverkare / varumärke Malico
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

BGA Chipset TALON™ Clips

TALON™ Clips are a new way of mounting and fixing Malico BGA heatsinks
Heatsinks easily snap into place and self-align with no need for additional holes or mounting
Firm and uniform mount that is resilient to vibration and minor impacts
Claw fixes between board and BGA package
Different coloured clips to cover the wide range of BGA packages

Note

Clip selection must make allowance for the thickness of interface material used.

BGA Heatsinks

Specifikationer
Attribute Value
Accessory Type Clip
For Use With MBH29 BGA Heatsink
260 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
6,284 kr
(exkl. moms)
7,855 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 45
6,284 kr
31,42 kr
50 - 120
5,95 kr
29,75 kr
125 - 245
5,384 kr
26,92 kr
250 - 495
4,818 kr
24,09 kr
500 +
4,41 kr
22,05 kr
