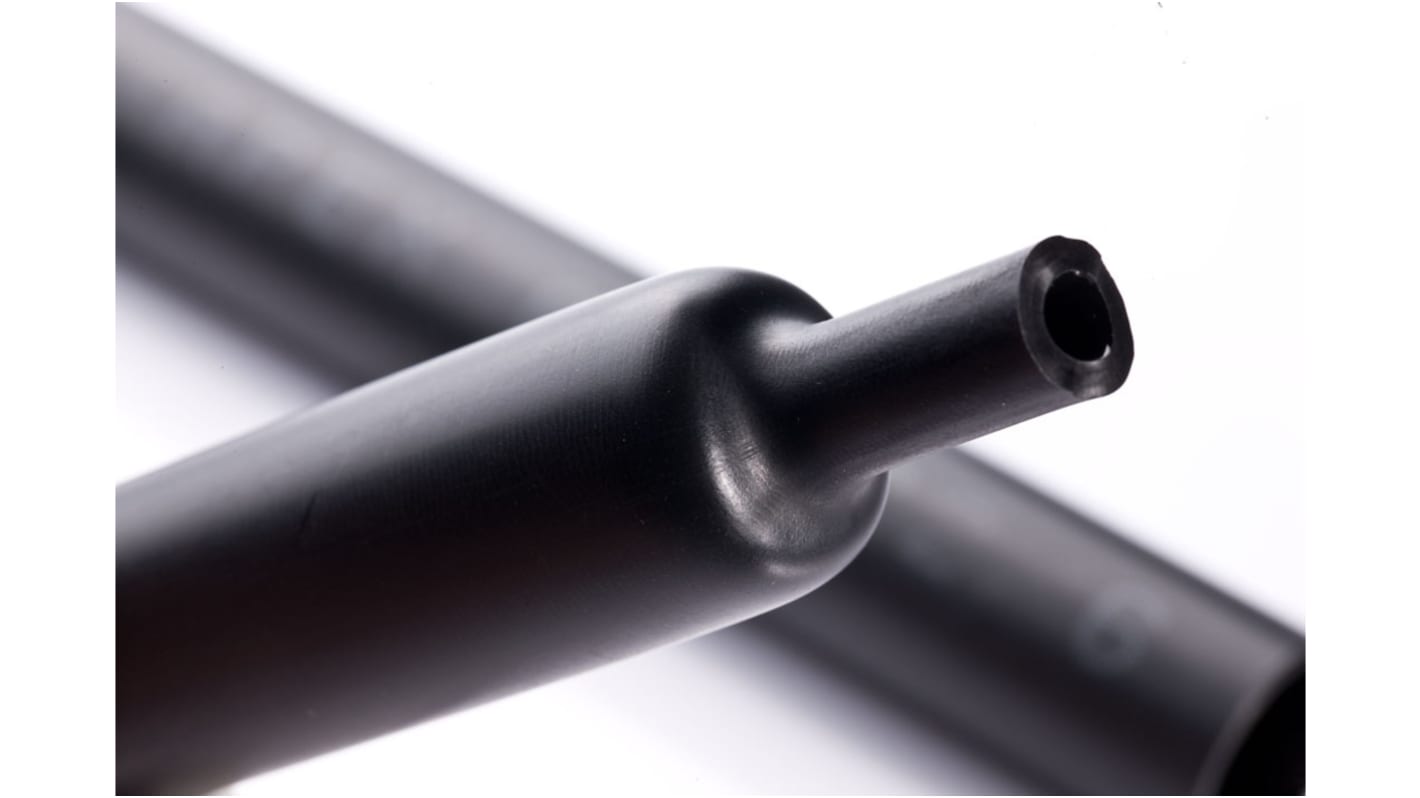

RS PRO Adhesive Lined Heat Shrink Tubing, Black 22mm Sleeve Dia. x 1.22m Length 3:1 Ratio
- RS-artikelnummer:
- 226-9084
- Tillverkare / varumärke:
- RS PRO
Mängdrabatt möjlig
Antal (1 enhet)*
107,28 kr
(exkl. moms)
134,10 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 421 enhet(er) är redo att levereras
- Plus 16 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 250 enhet(er) från den 19 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 14 | 107,28 kr |
| 15 - 49 | 101,92 kr |
| 50 + | 98,67 kr |
*vägledande pris
- RS-artikelnummer:
- 226-9084
- Tillverkare / varumärke:
- RS PRO
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | RS PRO | |
| Sleeve Diameter | 22mm | |
| Colour | Black | |
| Shrunk Diameter | 6mm | |
| Sleeve Type | Heat Shrink | |
| Adhesive Lined | Yes | |
| Shrink Ratio | 3:1 | |
| Sleeve Length | 1.22m | |
| Välj alla | ||
|---|---|---|
Brand RS PRO | ||
Sleeve Diameter 22mm | ||
Colour Black | ||
Shrunk Diameter 6mm | ||
Sleeve Type Heat Shrink | ||
Adhesive Lined Yes | ||
Shrink Ratio 3:1 | ||
Sleeve Length 1.22m | ||
- COO (Country of Origin):
- CN
RS PRO Heavy Wall Adhesive Lined Heat Shrink Tubing, 3:1 Ratio
From the trusted brand RS PRO, a range of heat shrinkable tubing commonly used as insulation protection for cables and terminals. This heavy wall heat-shrink tubing has a thick outer layer with excellent abrasion and corrosion resistance.
Once heated, the outer protective layer is formed and the inner forms an adhesive layer that protects against moisture and secures the object firmly. Adhesive lined heat shrink offers excellent insulation and adhesion to rubber, PVC, PE, aluminium and can be used in various fields such as communications, power cables, and chemical pipelines.
Once heated, the outer protective layer is formed and the inner forms an adhesive layer that protects against moisture and secures the object firmly. Adhesive lined heat shrink offers excellent insulation and adhesion to rubber, PVC, PE, aluminium and can be used in various fields such as communications, power cables, and chemical pipelines.
What are Heat Shrink Tubes?
Heat shrink tubing is a type of extruded plastic tubing that can be cut to size and fitted over a wire or cable joint to protect and insulate the connection. When heated is applied the tubing shrinks permanently providing a protective seal. The amount it shrinks depends on its shrink ratio. When you buy the tubing, it is in its expanded state, this expanded tubing has a memory so when it is heated it returns to its original state. Larger shrink ratios are required to cover materials with a greater size variation.
Features and Benefits
- Shrink ratio: 3:1
- Semi-rigid, abrasion resistant
- Waterproof, moisture and UV resistant
- Meet very strict requirements of mechanical performance
- Excellent electrical insulation properties
- Adhesive lined
- Sleeve length: 1.2 m
- Tube Colour: Black
- Compliance with RoHS and REACH environmental regulations
- Continuous operating temperature: 55˚C∼110˚C
- Minimum shrink temperature: 80˚C
- Full recovery temperature: Above 120˚C
Sleeve Diameter - Variants
Application
- Suitable for above and underground cable applications
- Electrical servicing
