- RS-artikelnummer:
- 200-6044
- Tillv. art.nr:
- 1552D5BK
- Tillverkare / varumärke:
- Hammond
- RS-artikelnummer:
- 200-6044
- Tillv. art.nr:
- 1552D5BK
- Tillverkare / varumärke:
- Hammond
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CA
Produktdetaljer

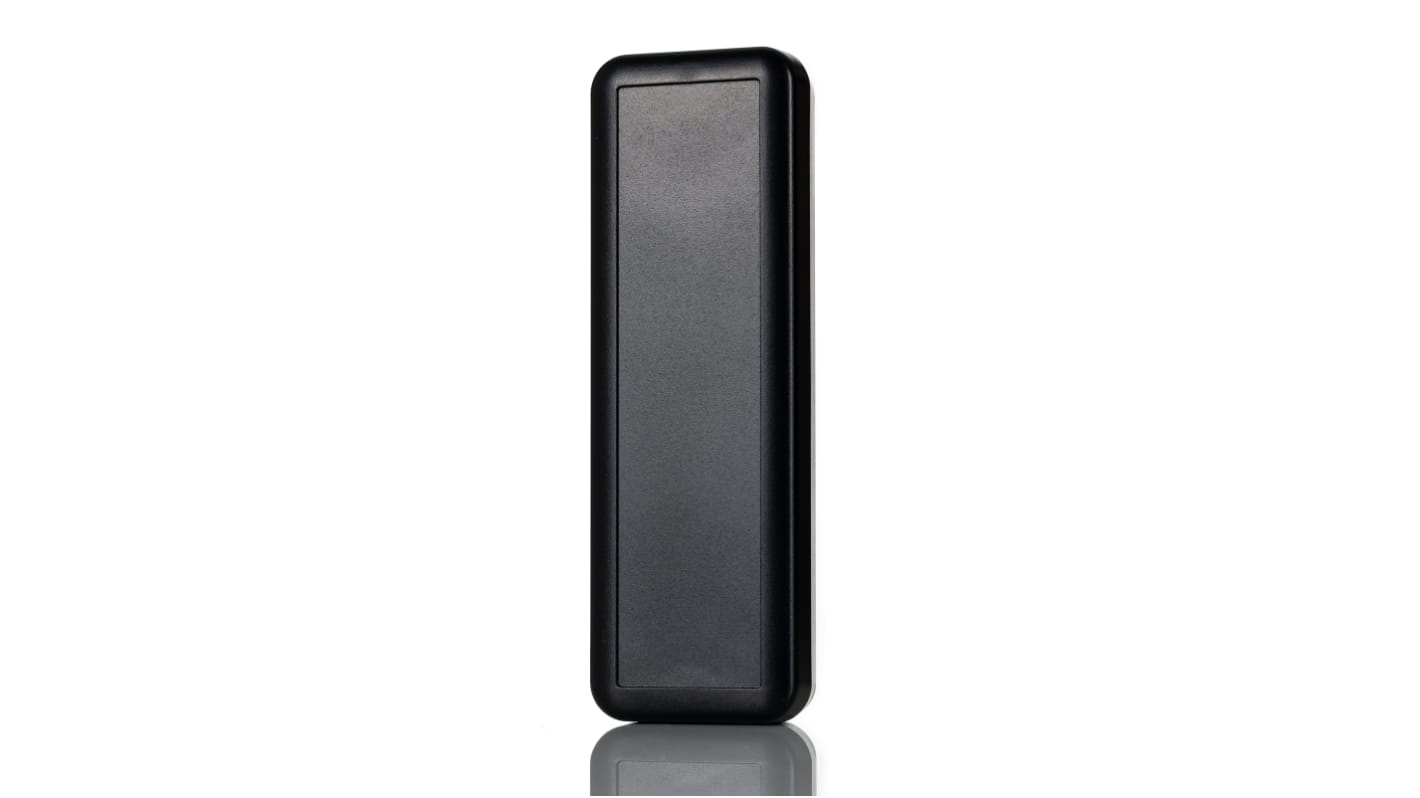

Hammond Handheld Enclosure, 150 (L) x 50 (W) x 30mm (H), 144.5mm Maximum PCB Length, Black Colour - 1552 Series - 1552D5BK
Want to give reliable protection to portable electronic devices? Pop your components into this handheld enclosure from Hammond. PCBs fit like a glove, thanks to inbuilt stand-offs that ensure a secure fix and correct spacing. The unit's hard-wearing ABS body keeps contaminants at bay and withstands impacts to keep your gadgets out of harm's way. It only takes a screwdriver to drive the four cover screws home, so set-up is speedy. This makes it ideal for jobs where you need constant access, as you can assemble or disassemble the box in two ticks.
Features & Benefits
Light 73g weight makes it easy to handle
Takes a keypad, thanks to a top cover recess
Self-extinguishing properties promote good fire safety
Ergonomic dimensions of 150 (L) x 50 (W) x 30mm (H) sit neatly in your hand
Takes a keypad, thanks to a top cover recess
Self-extinguishing properties promote good fire safety
Ergonomic dimensions of 150 (L) x 50 (W) x 30mm (H) sit neatly in your hand
Applications
Field measurement and testing
Communication devices
Remote monitoring and sensing
Communication devices
Remote monitoring and sensing
Does this device resist dust?
An IP54 rating means the enclosure offers dust protection and resists water sprays from any direction, so you can use it in challenging settings.
PCB Stand offs moulded into base and lid. Top cover is recessed for membrane display or keypad. Removable end panels for easy machining
Standards
Material Flamability Rating: UL94-V0
Specifikationer
Attribute | Value |
---|---|
Body Material | ABS |
External Length | 150 mm |
External Width | 50 mm |
External Height | 30 mm |
Integral Battery Compartment | No |
Weight | 72g |
IP Rating | IP54 |
Display Window | No |
Colour | Black |
External Dimensions | 150 x 50 x 30mm |
Push Buttons | No |
Special Features | Flame Resistant |
Internal Mounting Type | PCB Mounting Bosses |
Series | 1552 |
Standards Met | RoHS |
Keypad Recess | Yes |
