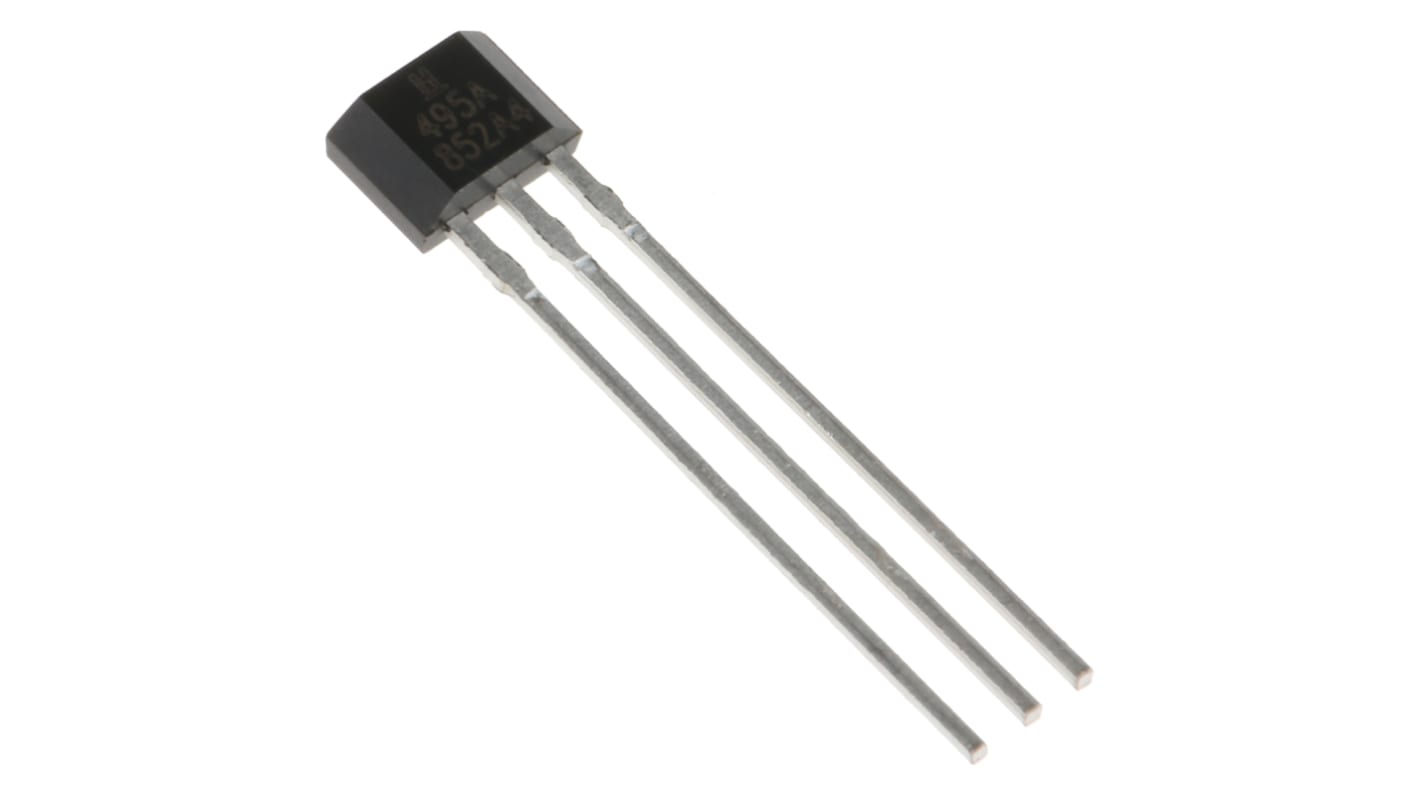

Honeywell Hall Effect Sensor, Ratiometric Output, 4.5 → 10.5 V dc
- RS-artikelnummer:
- 169-7668
- Tillv. art.nr:
- SS495A
- Tillverkare / varumärke:
- Honeywell
Tillfälligt slut i lager – restorder för leverans 2024-06-24
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 5000)
34,991 kr
(exkl. moms)
43,739 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 5000 + | 34,991 kr | 174 955,00 kr |
- RS-artikelnummer:
- 169-7668
- Tillv. art.nr:
- SS495A
- Tillverkare / varumärke:
- Honeywell
Lagstiftning och ursprungsland
Produktdetaljer
Miniature Ratiometric Linear Hall Effect Sensors
Hall effect sensors with output proportional to supply voltage and the strength of the magnet field
Single current sinking or current sourcing linear output
Rail-to-rail operation provides more useable signal for higher accuracy
Responds to either positive or negative gauss
Good temperature stability
Typical applications include; current sensor, motor control, position control, encoder, metal detection, vibration sensor etc
Single current sinking or current sourcing linear output
Rail-to-rail operation provides more useable signal for higher accuracy
Responds to either positive or negative gauss
Good temperature stability
Typical applications include; current sensor, motor control, position control, encoder, metal detection, vibration sensor etc
Specifikationer
Attribute | Value |
|---|---|
| Output Type | Ratiometric |
| Supply Voltage | 4.5 → 10.5 V dc |
| Terminal Type | PCB |
| Switching Current | 1.5 mA |
| Length | 4.06mm |
| Width | 3mm |
| Depth | 1.6mm |
| Dimensions | 4.06 x 3 x 1.6 mm |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -40°C |
