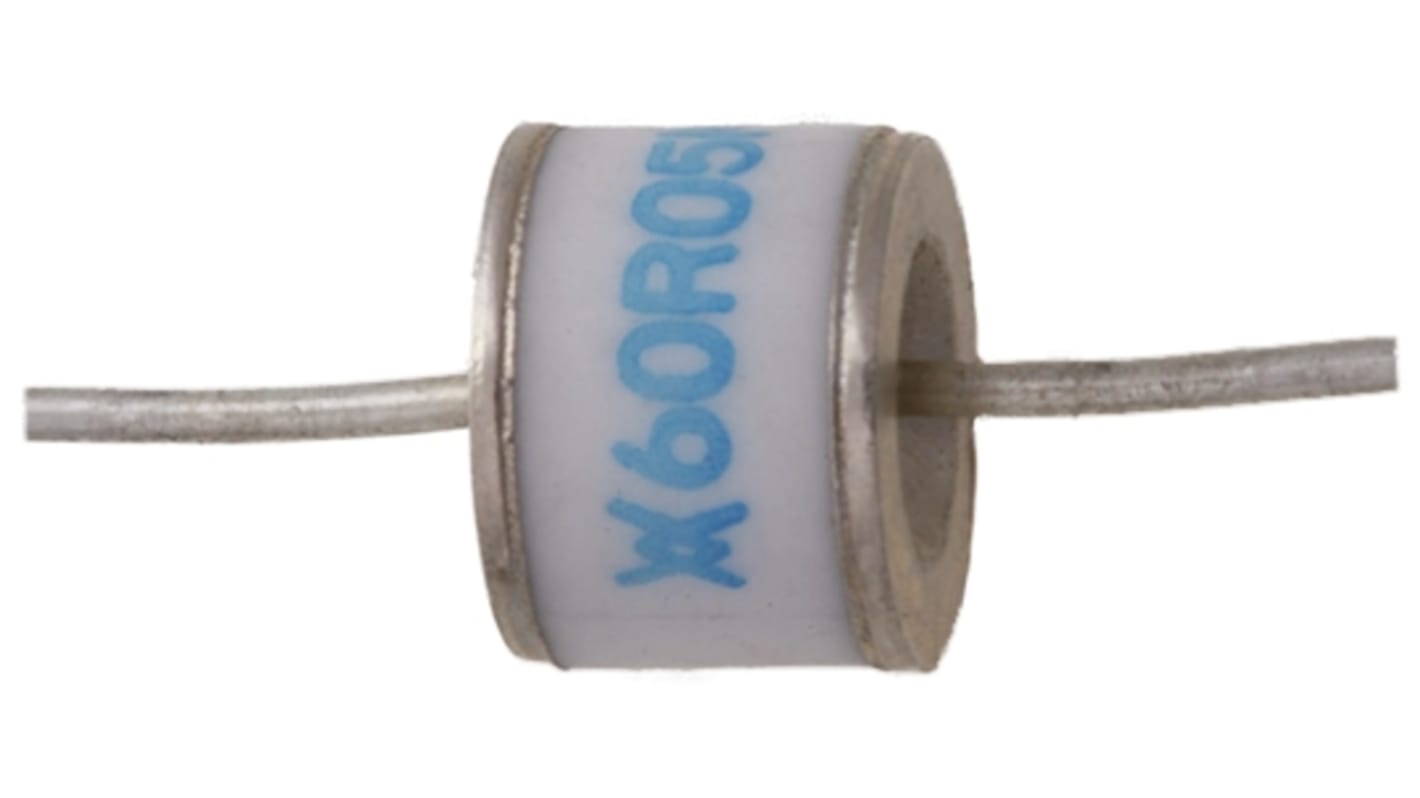

Littelfuse GTCX28-XXXM-R10 Series 420V Through Hole Gas Discharge Tube (GDT)

  • RS-artikelnummer 725-6705
  • Tillv. art.nr GTCA28-421M-R05
  • Tillverkare / varumärke Littelfuse
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Gas Discharge Tube - GTCX28-XXXM-R10 Series

GTCX28-XXXM-R10 Series Gas Discharge tubes by Tyco Electronics giving excellent surge protection characteristics, low capacitance and two breakover voltages. These Gas Discharge Tubes are suitable to protect sensitive equipment such as that used in high-data-rate telecom communication network protection i.e. ADSL , VDSL, Main distribution frame (MDF) modules and surge protection on power lines.

2-Poles, 8mm Devices
Two Voltages, 420V and 470V
Form factor: Axial Leads
Low capacitance and insertion loss

Applications include:

Telecommunications - MDF Modules, xDSL equipment, RF system protection, antenna, base station.
Industrial and consumer electronics - Surge protectors, alarm system.

Specifikationer
Attribute Value
Series GTCX28-XXXM-R10
DC Spark Over Voltage 420V
Impulse Spark Over Voltage 900 V @ 100 V/μs, 1000 V @ 1000 V/μs
Mounting Type Through Hole
Dimensions 6 x 8 x 8mm
Depth 8mm
Height 8mm
Length 6mm
Maximum Operating Temperature +90°C
Minimum Operating Temperature -40°C
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Pris (ex. moms) Each (In a Pack of 5)
26,326 kr
(exkl. moms)
32,908 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 45
26,326 kr
131,63 kr
50 - 120
19,254 kr
96,27 kr
125 - 245
16,296 kr
81,48 kr
250 - 495
15,49 kr
77,45 kr
500 +
14,476 kr
72,38 kr
Nästa dag-leverans inte möjlig
Förpackningsalternativ:
