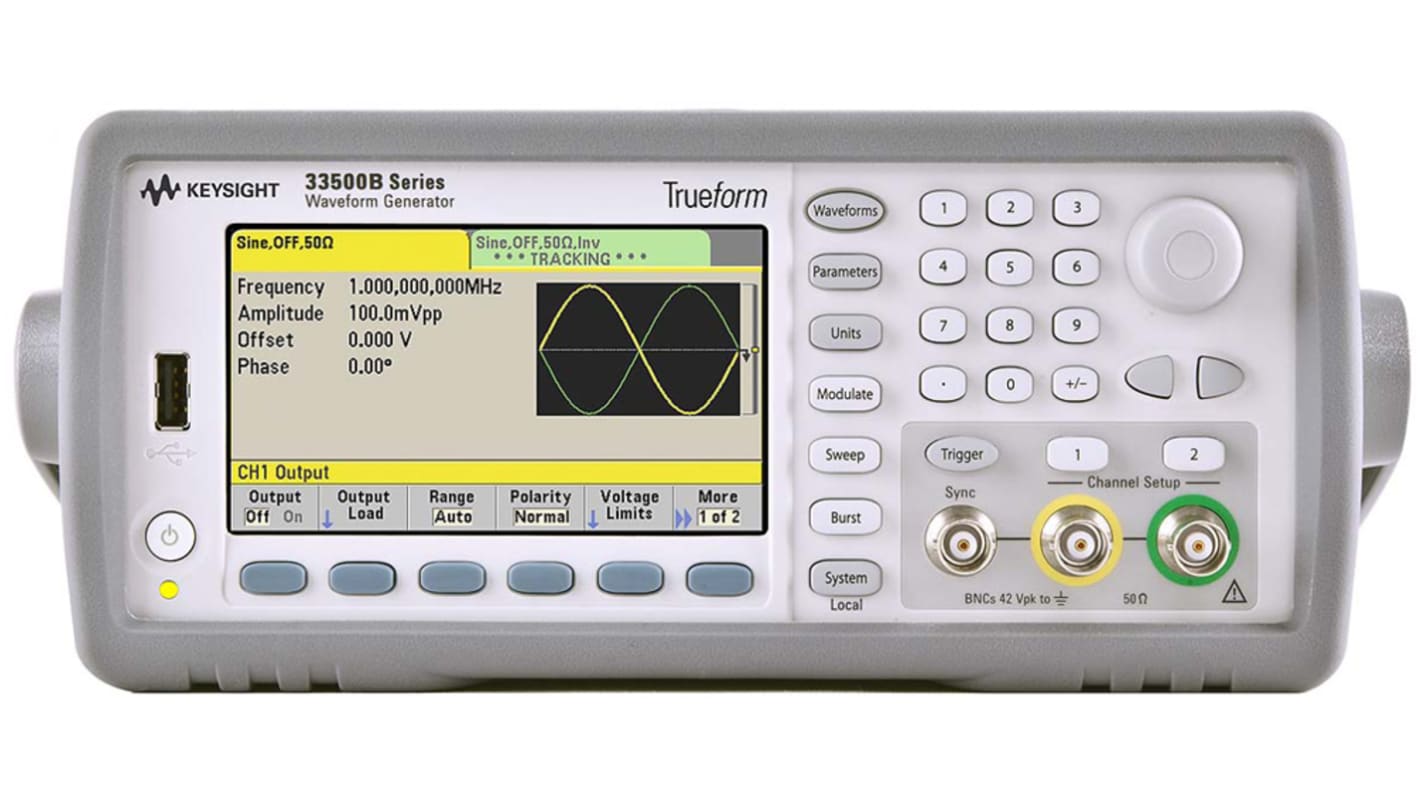

Keysight Technologies 33520B Function Generator, 1μHz Min, 30MHz Max, FM Modulation, Variable Sweep - With RS
- RS-artikelnummer:
- 761-1051
- Tillv. art.nr:
- 33520B
- Tillverkare / varumärke:
- Keysight Technologies
Tillfälligt slut i lager – restorder för leverans 2024-07-04
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
42 396,00 kr
(exkl. moms)
52 995,00 kr
(inkl. moms)
Enheter | Per unit |
1 + | 42 396,00 kr |
- RS-artikelnummer:
- 761-1051
- Tillv. art.nr:
- 33520B
- Tillverkare / varumärke:
- Keysight Technologies
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MY
Produktdetaljer
Keysight 33500B Series Waveform Generators
Keysight 33500B Series waveform generators incorporate Trueform signal-generation technology, which combines the best of direct digital synthesis (DDS) and point-by-point architectures. It delivers increased performance at a price associated with DDS only. The 33500B models offer lower jitter and lower harmonic distortion than alternative instruments in the same class.
The jitter performance gives users the ability to place edges more accurately, helping reduce timing errors in circuit designs. Total harmonic distortion is less than 0.04% and non-harmonic spurs are less than 75dBc. This means clean signals that do not introduce noise, giving users greater accuracy. The jitter rate, together with 8.4ns rise and fall times, enables users to set trigger points more accurately. The 16 bit resolution of the 33500B models facilitates output changes down to 1uV, providing users with the ability to test low-voltage circuits and designs.
The jitter performance gives users the ability to place edges more accurately, helping reduce timing errors in circuit designs. Total harmonic distortion is less than 0.04% and non-harmonic spurs are less than 75dBc. This means clean signals that do not introduce noise, giving users greater accuracy. The jitter rate, together with 8.4ns rise and fall times, enables users to set trigger points more accurately. The 16 bit resolution of the 33500B models facilitates output changes down to 1uV, providing users with the ability to test low-voltage circuits and designs.
Waveform summing and combining capability
Variable-bandwidth noise
Waveform sequencing
Pseudo-random binary sequence pattern generation
Variable-bandwidth noise
Waveform sequencing
Pseudo-random binary sequence pattern generation
Specifikationer
Attribute | Value |
---|---|
Series | 33500B |
Model Number | 33520B |
Calibrated | RSCAL |
Digital Frequency | Yes |
Minimum Frequency Range Sinewave | 1µHz |
Maximum Frequency Range Sinewave | 30MHz |
Maximum Frequency Range Square Pulse and Arbitrary Waveform | 30MHz |
Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz |
Maximum Frequency Range Triangle/Saw | 20kHz |
Minimum Frequency Range Triangle/Saw | 1µHz |
Digital Amplitude and Offset | Yes |
Internal Linear and Log Sweep | Yes |
Variable Sweep | Yes |
Internal and External Amplitude Modulation | Yes |
FM Modulation | Yes |
Time Base Accuracy | ±0.1ppm |
Length | 272.3mm |
Output Impedance | 50Ω |
Dimensions | 272.3 x 212.8 x 88.3mm |
Interface Type | Ethernet, GPIB, LAN, USB |
Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 30 MHz |
Minimum Operating Temperature | 0°C |
Height | 88.3mm |
Width | 212.8mm |
Input Impedance | 5 kΩ |
Weight | 3.3kg |
Maximum Operating Temperature | +55°C |
Output Amplitude | 20V Pk-Pk |
