RS PRO AFG-21025 Function Generator, 0.1Hz Min, 25MHz Max - RS Calibration

Se alla Function Generators
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
124-0252
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Model Number

AFG-21025

Calibrated

RSCAL

Digital Frequency

Yes

Maximum Frequency Range Sinewave

25MHz

Minimum Frequency Range Sinewave

0.1Hz

Minimum Frequency Range Square Pulse and Arbitrary Waveform

0.1 Hz

Maximum Frequency Range Square Pulse and Arbitrary Waveform

25MHz

Digital Amplitude and Offset

Yes

Internal Linear and Log Sweep

Yes

Internal and External Amplitude Modulation

Yes

Time Base Accuracy

±20ppm

Dimensions

266 x 293 x 107mm

Minimum Operating Temperature

0°C

Height

107mm

Maximum Operating Temperature

+40°C

Output Impedance

50Ω

Length

266mm

Weight

2.5kg

Output Amplitude

1 mV Pk-Pk → 10 V Pk-Pk

Frequency Range Square Pulse and Arbitrary Waveform

0.1 Hz → 25 MHz

Interface Type

USB

Width

293mm

COO (Country of Origin):
CN

RS Pro AFG-21000 and AFG-21100 Series Arbitrary Function Generators

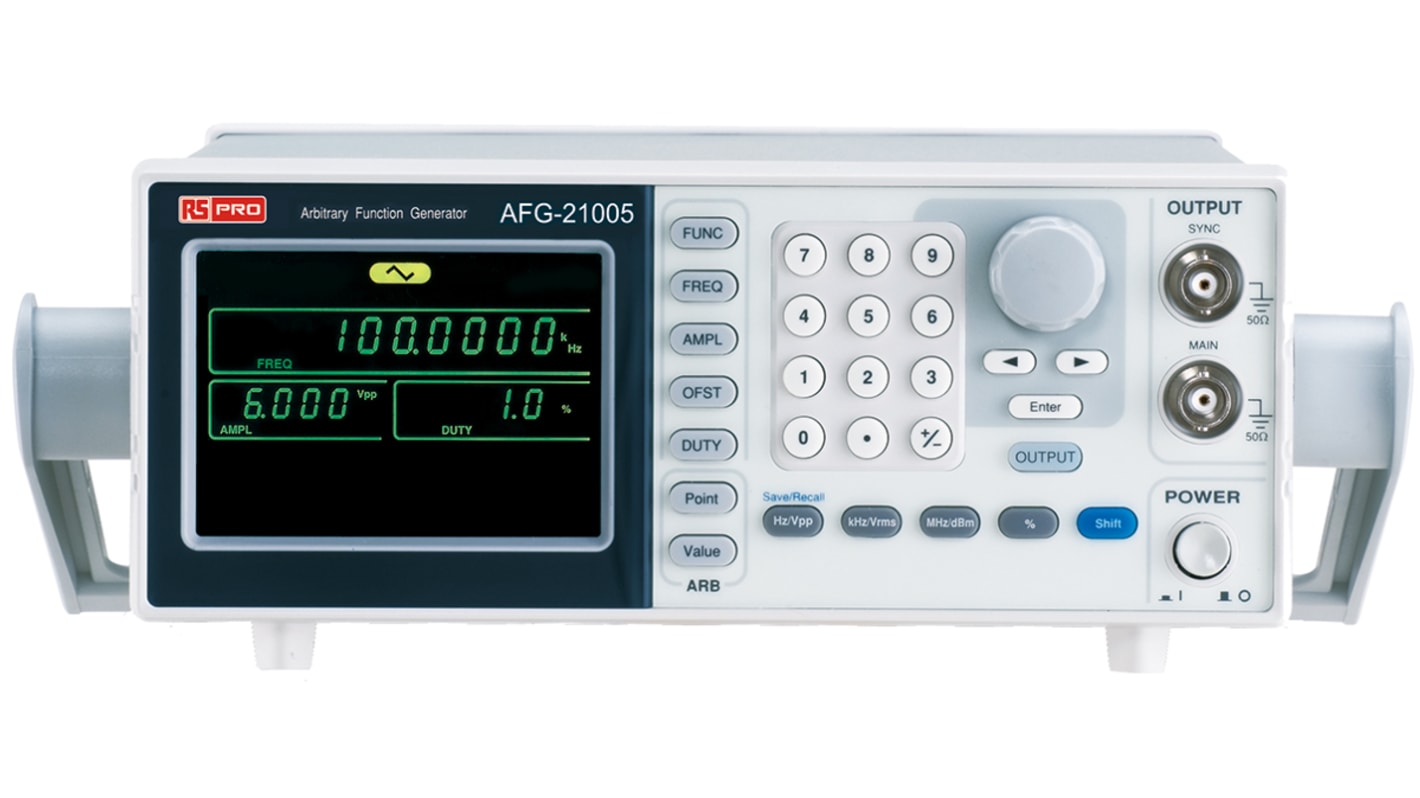

RS Pro AFG-21000/AFG-21100 AFGs use direct digital synthesis (DDS) to generate signals at precise frequencies through a unique memory access and clocking mechanism. They offer an accurate and affordable signal source covering the output of Sine, Square (Pulse), Ramp (Triangle), Noise and Arbitrary waveforms. The 20 MSa/s sampling rate, 10 bit vertical resolution and 4 Kpts memory of the AFG-21000/AFG-21100 Series provide users with a flexible environment in which specific waveform output can be created as required. The application range of these user-friendly instruments is greatly extended by their 0.1 Hz resolution of Sine, Square and Triangle waveforms and the 1% ∼ 99% adjustable duty cycle of the Square (Pulse) waveform. The individual AFG-2000/AFG-2100 models are differentiated by frequency band and the AFG-2100 models have the additional features of AM/FM/FSK Modulation, Sweep and Frequency Counter.

Features and Benefits


Sine, Square, Triangular, Noise and Arbitrary waveforms
0.1 Hz resolution of Sine, Square and Triangular waveforms
20 MSa/s sampling rate, 10 bit vertical resolution and 4 Kpts memory
1% ∼ 99% adjustable duty cycle for Square waveform
Waveform parameter setting through numeric keypad entry and knob selection
Amplitude, DC offset and other key setting information displayed simultaneously on the 3.5 in LCD screen
USB device interface for remote control and waveform editing
PC arbitrary waveform editing software
AM/FM/FSK Modulation, Sweep and Frequency Counter (AFG-21100 models only)

Areas of Application


Education sector
Basic industrial

Supplied with

Power cord, test lead, quick start guide, user manual CD

RS PRO Arbitrary Function Generator


The RS PRO arbitrary function generator is a new-age device with a range of up to 25MHz. It uses direct digital synthesis (DDS) to generate signals at precise frequencies through unique memory access and clocking mechanism. The function generator offers an accurate and affordable signal source covering the output of sine, square (pulse), ramp (triangle), noise, and arbitrary waveforms. The function generator provides its users with a flexible environment to create specific waveform outputs. The application range of this user-friendly instrument is greatly extended by its high resolution and adjustable duty cycle.

Features and Benefits


Sine, square, triangular, noise, and arbitrary waveforms
0.1Hz resolution of sine, square, and triangular waveforms
20MSa/s sampling rate
10 bit vertical resolution
4Kpts memory
1% to 99% adjustable duty cycle for square waveform
Waveform parameter setting through numeric keypad entry and knob selection
Amplitude, DC offset and other key setting information displayed simultaneously on the 3.5 in LCD screen
USB device interface for remote control and waveform editing
PC arbitrary waveform editing software

Applications


Audio products frequency characteristics measurement
Pulse signal as trigger or synchronization signal for electronic product testing
Pulse noise simulation
Reference clock signal of electronic device
Vibration signal simulation
Noise simulation for communication system educational lab

Certifications


ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
