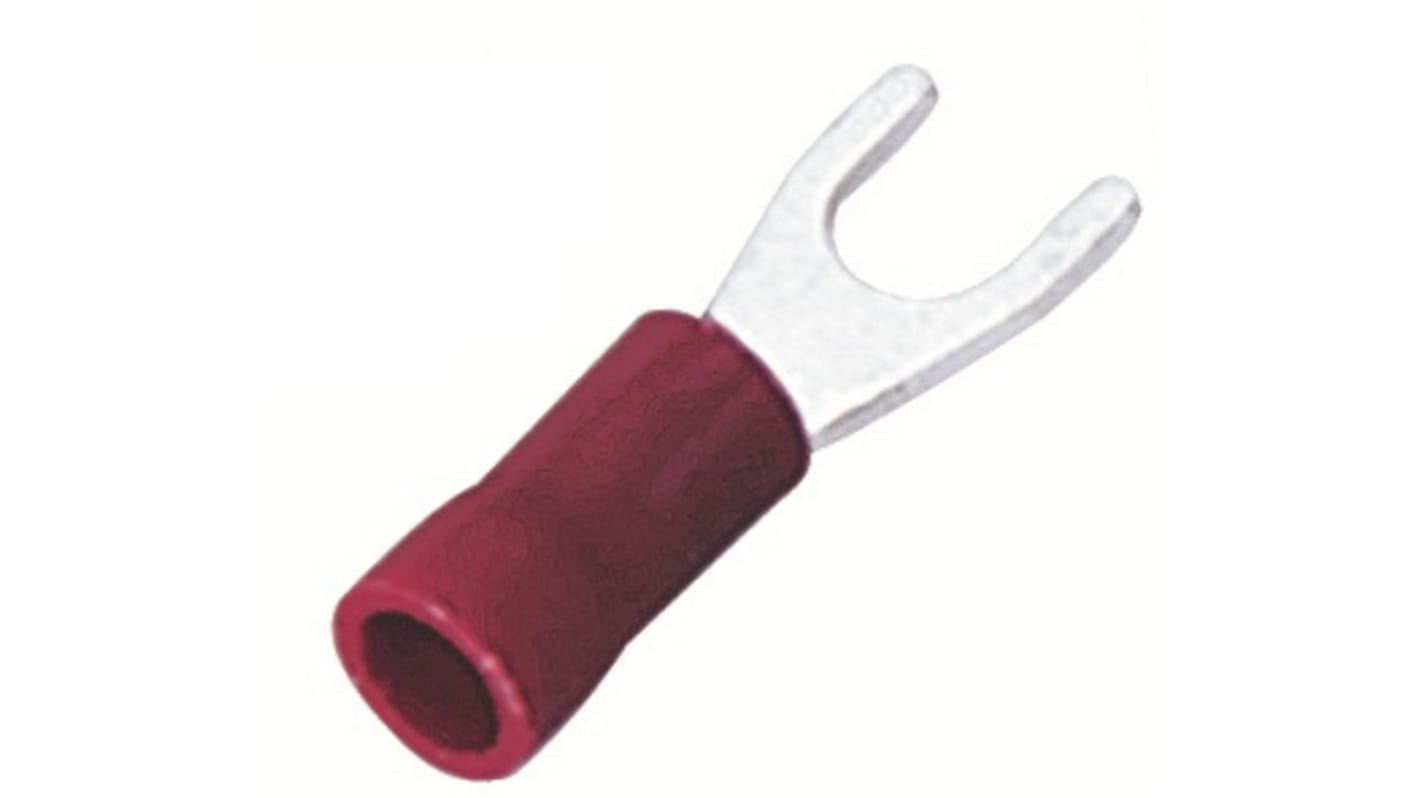

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 5.3mm Stud Size Vinyl, Red
- RS-artikelnummer:
- 178-8714
- Tillverkare / varumärke:
- RS PRO
4300 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 100)
0,577 kr
(exkl. moms)
0,721 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 100 - 900 | 0,577 kr | 57,70 kr |
| 1000 - 1900 | 0,524 kr | 52,40 kr |
| 2000 - 4900 | 0,477 kr | 47,70 kr |
| 5000 - 9900 | 0,442 kr | 44,20 kr |
| 10000 + | 0,405 kr | 40,50 kr |
- RS-artikelnummer:
- 178-8714
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
The RS PRO Insulated spade connector has overall length of 21mm with thickness of 0.75mm and wire size of 16AWG.
Colour: Red
Maximum Temperature Range: 105°C
Maximum Temperature Range: 105°C
Specifikationer
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Width | 8.1mm |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | 5.3mm |
| Colour | Red |
| Overall Length | 21mm |
| Contact Material | Copper |
| Thickness | 0.75mm |
