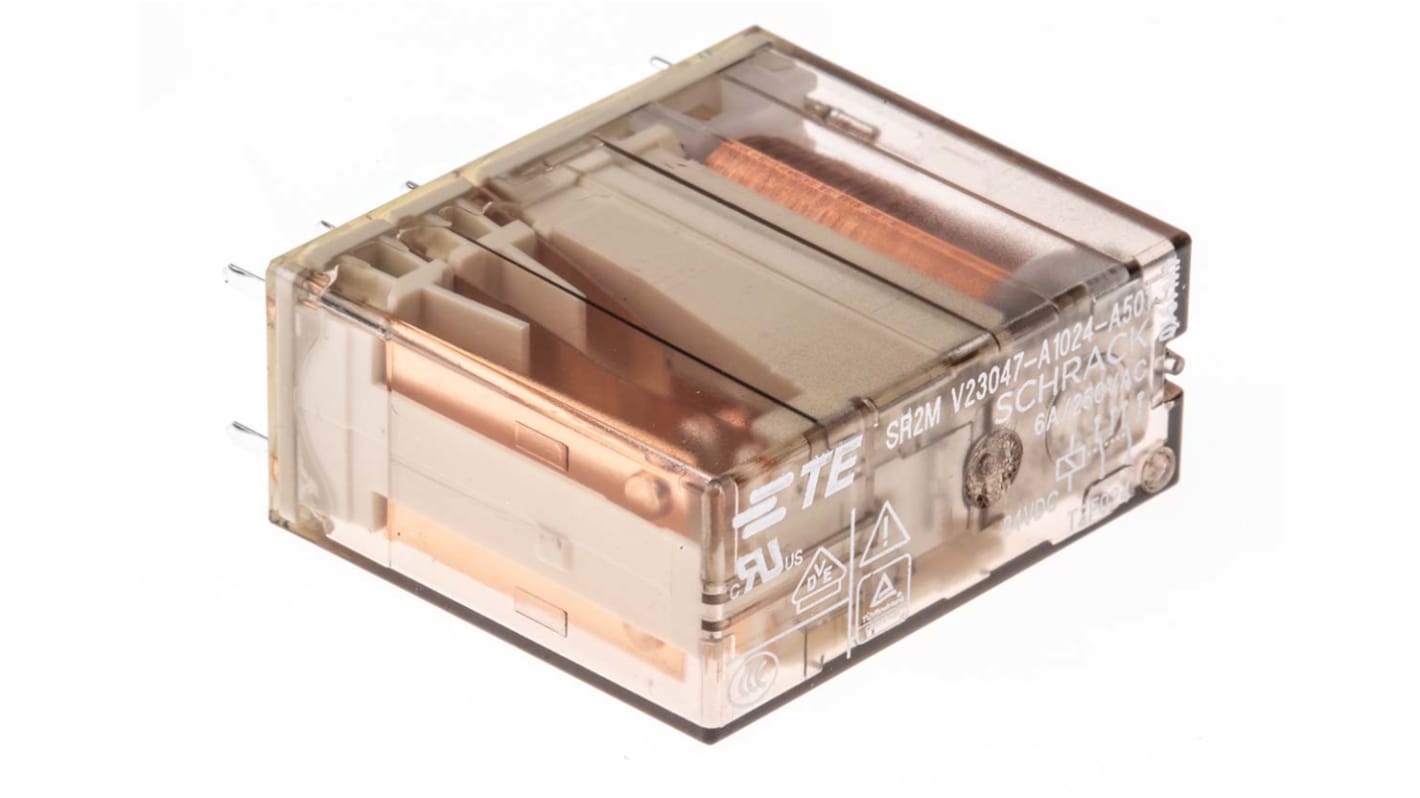

TE Connectivity PCB Mount Force Guided Relay, 24V dc Coil Voltage, 2 Pole, DPDT
- RS-artikelnummer:
- 334-0143
- Tillv. art.nr:
- V23047-A1024-A501 1-1393258-5
- Tillverkare / varumärke:
- TE Connectivity
Tillfälligt slut i lager – restorder för leverans 2024-05-24
Lagt till varukorgen
Pris (ex. moms) Varje
146,49 kr
(exkl. moms)
183,11 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 146,49 kr |
| 5 - 11 | 142,11 kr |
| 12 + | 137,08 kr |
- RS-artikelnummer:
- 334-0143
- Tillv. art.nr:
- V23047-A1024-A501 1-1393258-5
- Tillverkare / varumärke:
- TE Connectivity
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CZ
Produktdetaljer
Safety Relay SR2M Series
2, 3 & 4 Pole low cost safety relay
4kV coil to contact isolation
Forced guided contacts
Fully sealed design
Switching Voltage 440 Vac; 250 Vac
Switching Current 6 A
Operating temperature range: -25 to +70°C
4kV coil to contact isolation
Forced guided contacts
Fully sealed design
Switching Voltage 440 Vac; 250 Vac
Switching Current 6 A
Operating temperature range: -25 to +70°C
Approvals
UL recognised component for Canada and US, TUV
Approvals
UL recognised component for Canada and US, TUV
Specifikationer
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Mounting Type | PCB Mount |
| Contact Configuration | DPDT |
| Number of Poles | 2 |
| Coil Resistance | 823Ω |
| Switching Current | 6A |
| Coil Power | 700mW |
| Maximum Switching Current AC | 6 A |
| Maximum Switching Voltage AC | 400V |
| Terminal Type | Through Hole |
| Depth | 12.6mm |
| Isolation Coil To Contact | 4kV rms |
| Maximum Operating Temperature | +70°C |
| Series | SR2M |
| Contact Material | Silver Alloy |
| Maximum Switching Power AC | 1.5 kVA |
| Length | 29mm |
| Minimum Operating Temperature | -25°C |
| Height | 25.5mm |
