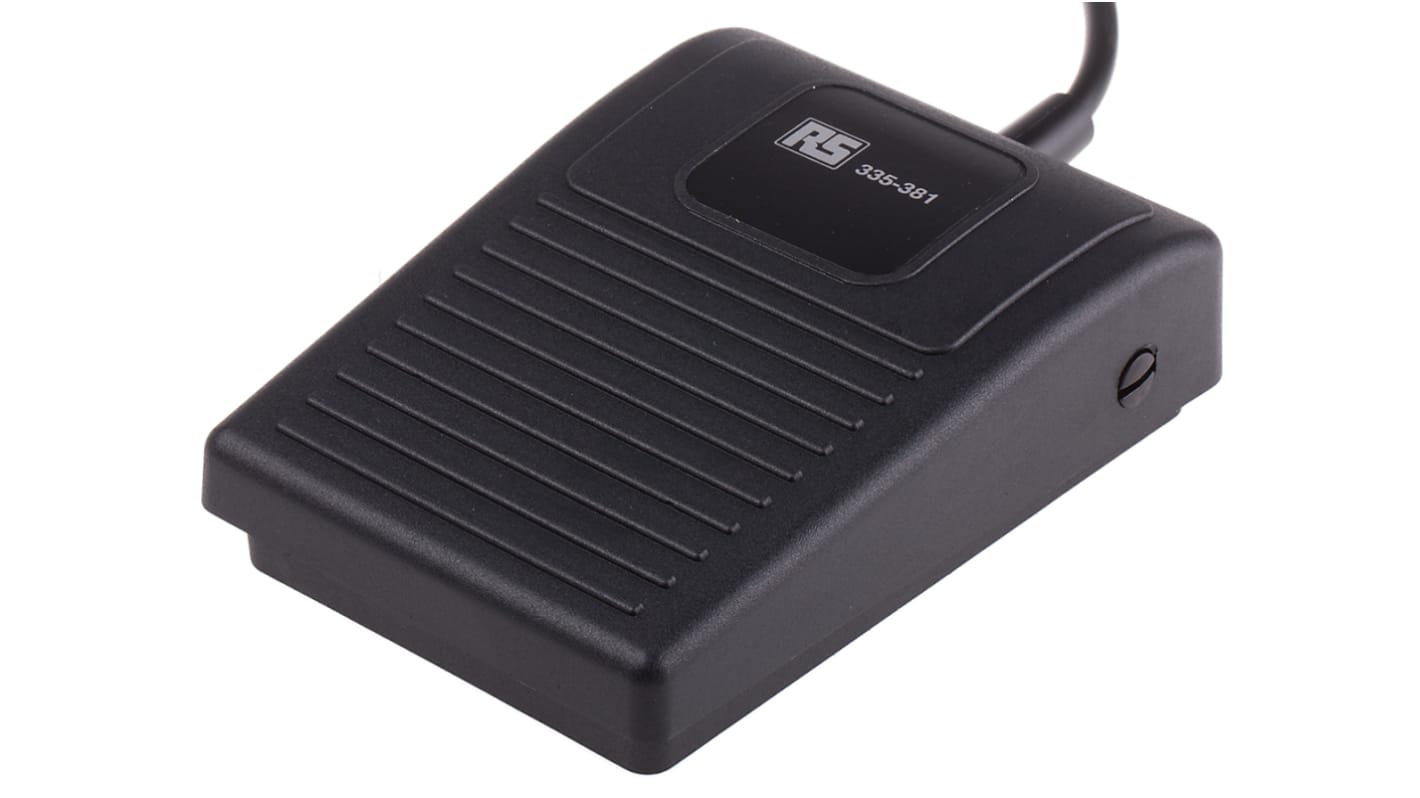

Light Industrial Foot Switch, Thermoplastic SPST-NO IPX7

  • RS-artikelnummer 335-381
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

Light Industrial Foot Switch

Light and easy operation
Tough reinforced plastic

Supplied with

2 m of 3mm PVC bore tubing

Actuators, Switch Elements, Tubing & Accessories

The air operated switch system offers enhanced safety in hazardous areas by allowing remote operation of electrical circuits.
The actuator is a bellows which, when compressed moves air down the air tubing to the switch element. This compressed air then expands a bellows in the switch, which operates the electrical contacts.
When used in wet environments or where electrical switching would be dangerous due to arcing, the switch and all electrical wiring can be located outside the hazardous area giving the operator total electrical isolation for the equipment.
Such applications include: Battery charging rooms, laboratories, garages, or wherever explosive gases, vapours or powders may exist.

When assembled the air switch and actuator form a sealed system, therefore temperature variation will cause pressure changes, which can in extreme cases affect the performance of the switch. To prevent this the total volume of the system must be kept below a critical value for a given temperature range and, to this end, a maximum length of air tubing (and hence volume) can be given for any combination of switch and actuator.
The additional data tables give these lengths in metres; for moderate and extreme temperatures.

Specifikationer
Attribute Value
Contact Configuration SPST-NO
Case Material Thermoplastic
Switch Environment Light Industrial
IP Rating IPX7
Guard Cover Yes
Colour Black
Width 105mm
Length 141mm
Dimensions 141 x 105 x 40mm
Standards Met EN 60950, 2014/35/EU
Height 40mm
33 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
355,28 kr
(exkl. moms)
444,10 kr
(inkl. moms)
Enheter
Per unit
1 +
355,28 kr
