SPNC, 10Amp Switch with 5M PVC cable

  • RS-artikelnummer 191-9491
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IT
Produktdetaljer

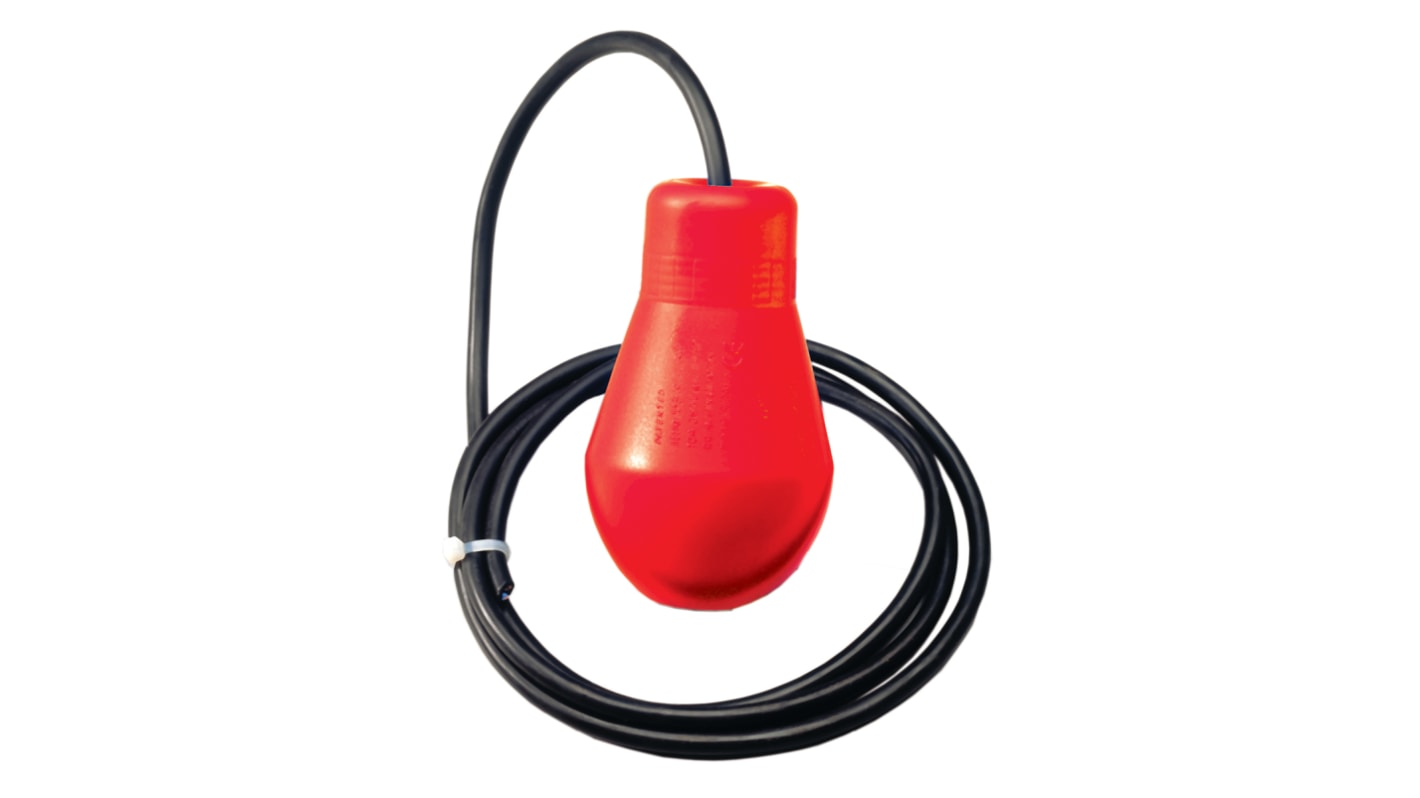

RS PRO Float Switch

The RS PRO external mounting float switch has an output of NC with a maximum switching voltage of 250VAC and switching current of 10A It is made up of High-Density Polyethylene. This float switch is suitable for use in water, industrial wastewater and sewage that can have wide variations of temperature. This small design of the switch is for use in more confined spaces, where there is not enough room for larger types. The rounded body design and floating attitude prevent the accumulation of solids on the body. The switch has additional internal ballast, to bring the centre of gravity and rotation close to the cable entry point. The switching element is a self-cleaning type, that makes the complete switch insensitive to humidity and condensation, allowing this type to operate in widely fluctuating temperatures. The switch contacts are rated at 10 Amp resistive and has 10bar maximum pressure.

Features and Benefits

• Shape avoids ragging in sewer systems
• Use in sewer and industrial waste water
• Unaffected by suspended solids
• Supplied, as standard, with 5 metres of cable and adjustable counterweight
• Operates in turbulent fluids
• Cable length: 5m
• Operating temperature ranges between 0°C and 55°C

Applications

• Suitable for smaller tanks and restricted spaces

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

Specifikationer
Attribute Value
Device Type Float
Mounting Type External
Switch Output NC
Body Material High Density Polyethylene
Cable Length 5m
Minimum Operating Temperature 0°C
Maximum Operating Temperature +55°C
Maximum AC Voltage 250V
Maximum DC Voltage 110V
Maximum Current 10 A
Maximum Pressure 10bar
Current Rating 10 A
