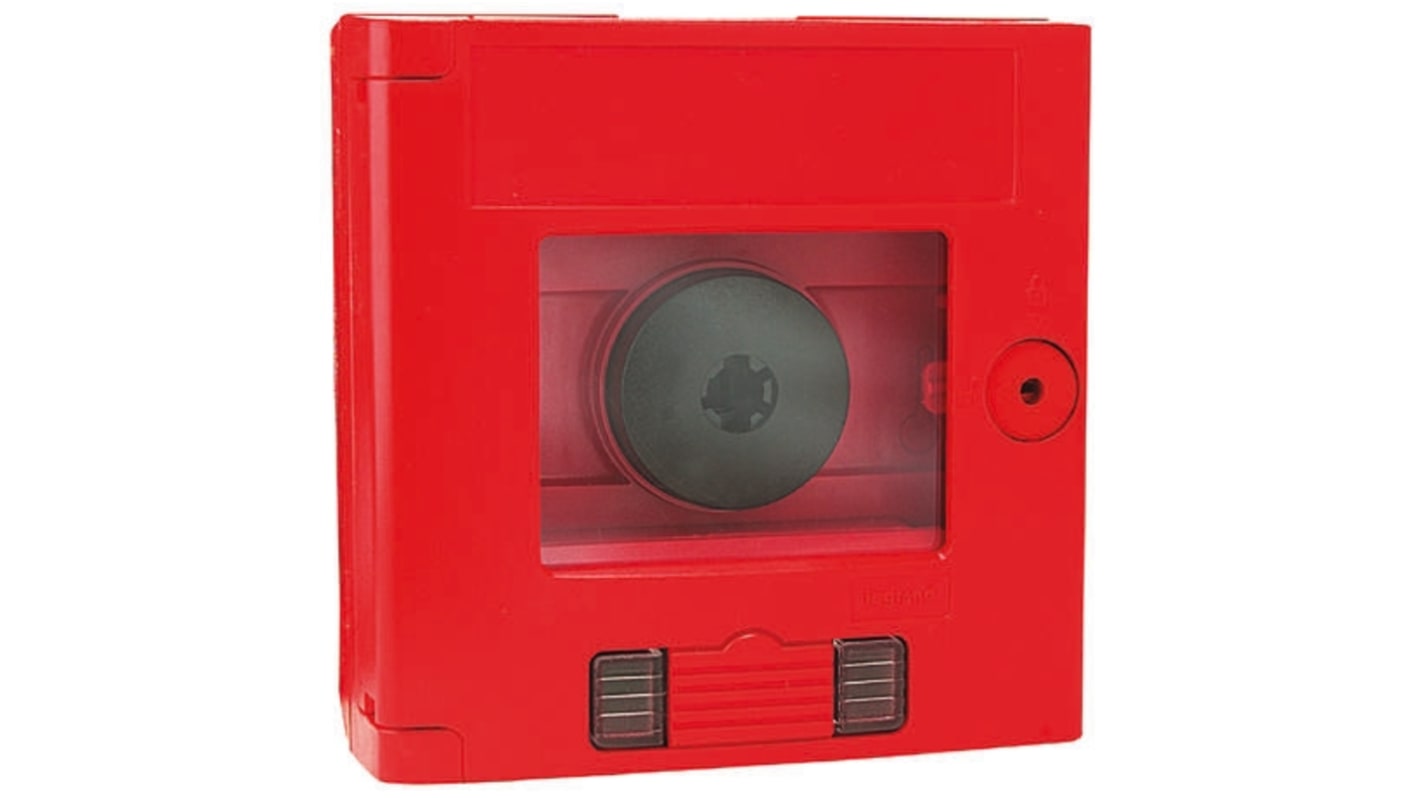

Red Break Glass Call Point, 125 x 125 x 71mm

  • RS-artikelnummer 507-1849
  • Tillv. art.nr 0 380 24
  • Tillverkare / varumärke Legrand
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): FR
Produktdetaljer

"Break glass" safety box, double red position + indicator light

Supplied with:

      –   glass door, on hinges with ability
      to lock with key no. 850 (ref. 013 90).
      –   3 cable entries for PE ISO 20 (from above
      or through the reversible base).
      –   2 x Ø 20 entries at the back of the product.
      –   2 side entries for mouldings 20 x 12.5 and
      32 x 12.5.
      –   1 N/C contact ref. 248 32, 1 N/O contact
       ref. 248 31.

230 Vac 6 A.
400 Vac 4.5 A.
48 Vdc 1 A.
24 Vdc 1.5 A.
Class II – IK 07.
2 indicator lights (green and red) 230 Vac 12 mA.
IP44.
Dimensions: 125 x 125 x 71.

Standards

  NF C 15-100

Specifikationer
Attribute Value
Call Point Type Break Glass Emergency Box
Operation Type Break Glass
Colour Red
Box Material PC
Depth 71 mm
Height 125 mm
Width 125mm
I lager för leverans inom 2 arbetsdagar
Pris (ex. moms) Each
2 869,25 kr
(exkl. moms)
3 586,56 kr
(inkl. moms)
Enheter
Per unit
1 - 9
2 869,25 kr
10 - 19
2 754,48 kr
20 +
2 668,40 kr
Nästa dag-leverans inte möjlig
