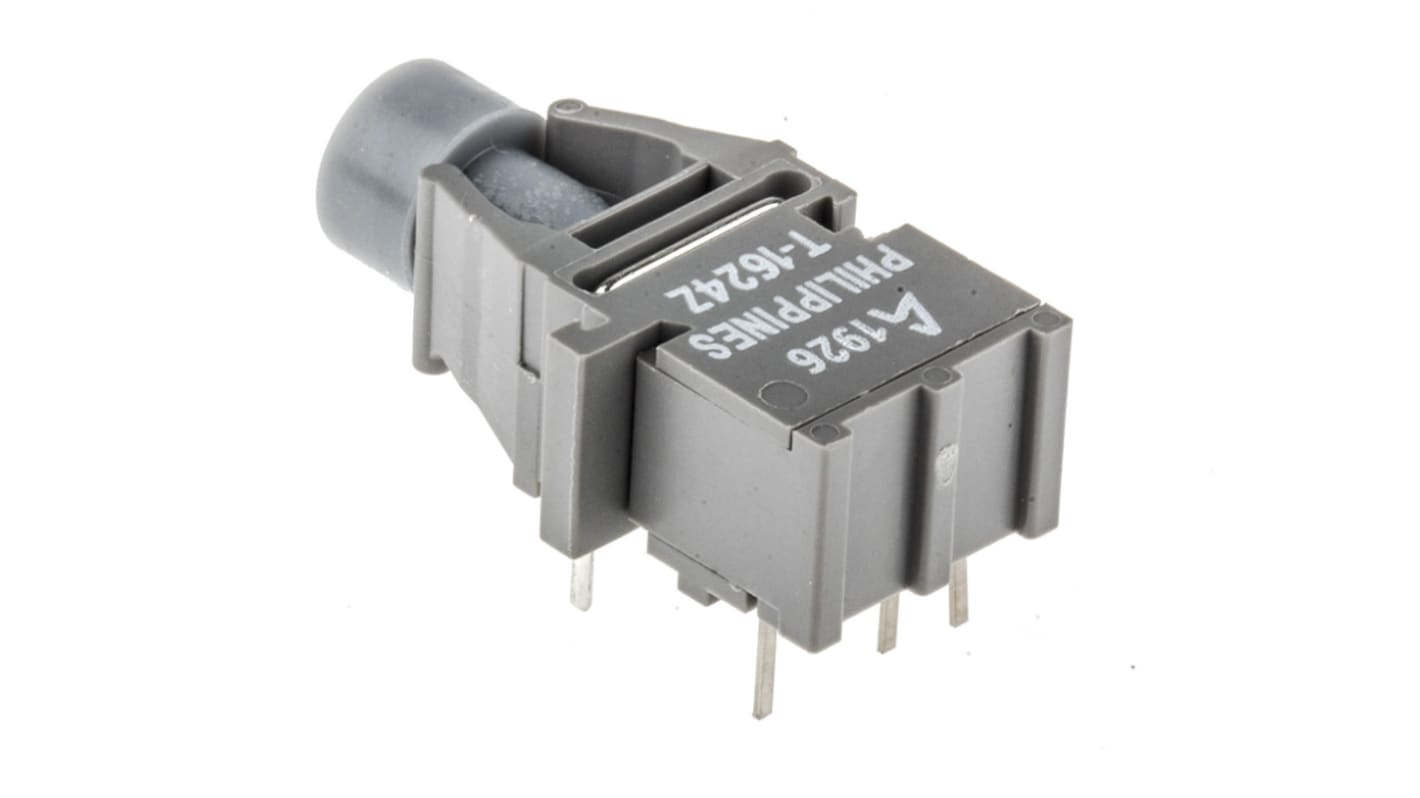

Broadcom AFBR-1624Z, 50MBd Fibre Optic Transmitter 685nm, Round Versatile Link Connector, 18.8 x 12.19 x 7.62mm
- RS-artikelnummer:
- 801-9207
- Tillv. art.nr:
- AFBR-1624Z
- Tillverkare / varumärke:
- Broadcom
- RS-artikelnummer:
- 801-9207
- Tillv. art.nr:
- AFBR-1624Z
- Tillverkare / varumärke:
- Broadcom
Lagstiftning och ursprungsland
Produktdetaljer
AFBR-16xxZ Series Fibre Optic Transmitters
The AFBR-16xxZ transmitter, from Avago Technologies, makes use of a 650nm light emitting diode (LED) source with integrated optics and driver IC for efficient joining with a 1mm polymer optical fibre (POF). The AFBR-16xxZ input is also compatible with TTL logic families. The 3-pin transmitter is packaged in the Versatile Link housing which allows them to be interlocked (N-plexed together) to optimize space and to provide dual connections with the duplex connectors.
The AFBR-16xxZ transmitter and AFBR-26x4Z/25x9Z receivers operate any signal from DC to:
50MBd at up to 50m with 1mm POF,
10MBd at up to 200m
50MBd at up to 120m with 200μm Plastic-Clad Silica (PCS)
50MBd at up to 50m with 1mm POF,
10MBd at up to 200m
50MBd at up to 120m with 200μm Plastic-Clad Silica (PCS)
Fibre Optics, Avago Technologies
Specifikationer
Attribute | Value |
---|---|
Maximum Data Rate | 50MBd |
Connector Shape | Round |
Typical Rise Time | 5ns |
Typical Fall Time | 5ns |
Peak Wavelength | 685nm |
Mounting Type | Through Hole |
Number of Pins | 6 |
Dimensions | 18.8 x 12.19 x 7.62mm |
Connector Type | Versatile Link |
Height | 7.62mm |
Length | 18.8mm |
Width | 12.19mm |
Series | Versatile Link |
