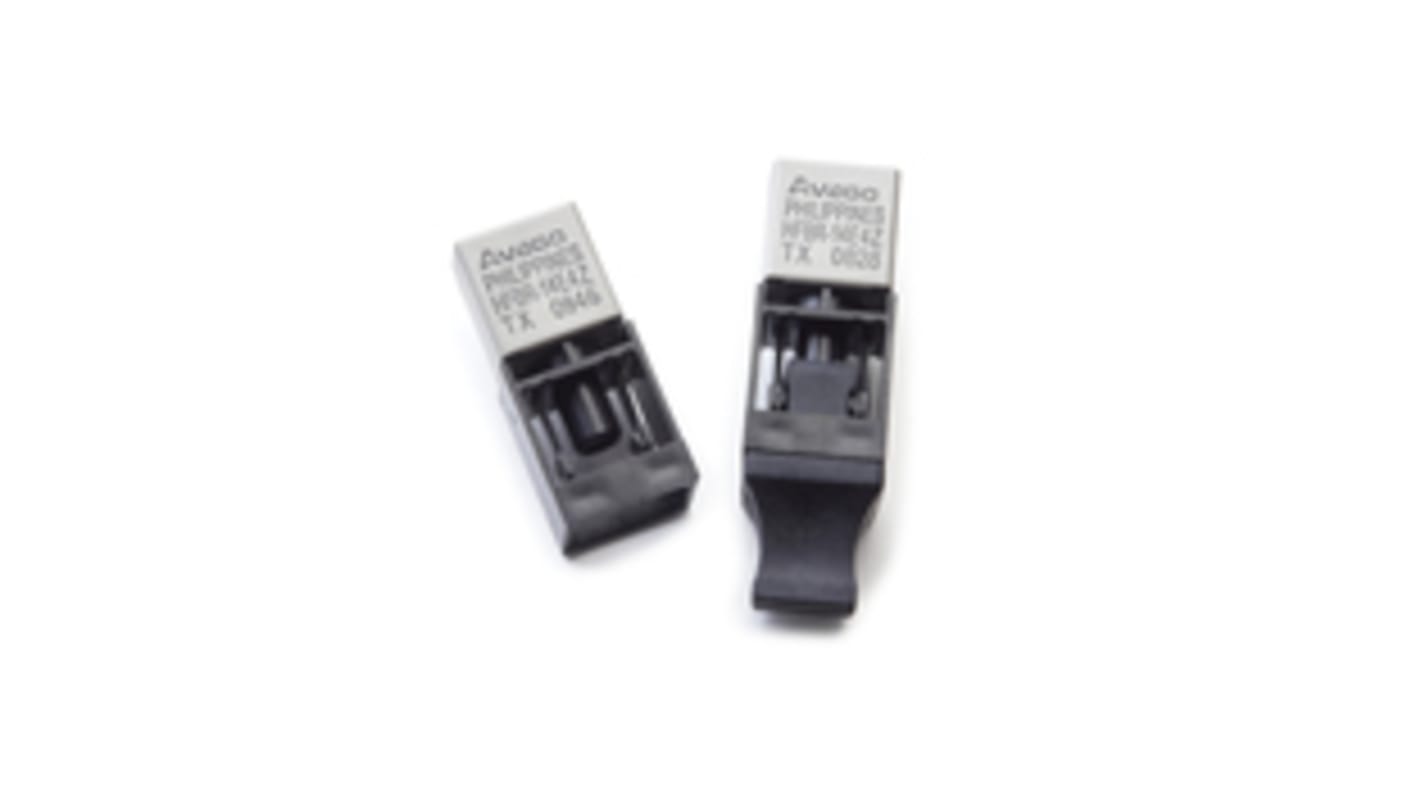

Broadcom HFBR-14E4Z, 160MBd Fibre Optic Transmitter 820nm, Square SC Connector, 27.2 x 12.7 x 10.2mm
- RS-artikelnummer:
- 189-4816
- Tillv. art.nr:
- HFBR-14E4Z
- Tillverkare / varumärke:
- Broadcom
324 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 12)
250,468 kr
(exkl. moms)
313,085 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 12 - 24 | 250,468 kr | 3 005,616 kr |
| 36 - 48 | 230,201 kr | 2 762,412 kr |
| 60 - 96 | 223,917 kr | 2 687,004 kr |
| 108 - 240 | 218,159 kr | 2 617,908 kr |
| 252 + | 212,909 kr | 2 554,908 kr |
- RS-artikelnummer:
- 189-4816
- Tillv. art.nr:
- HFBR-14E4Z
- Tillverkare / varumärke:
- Broadcom
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
HFBR-14xxZ and HFBR-24xxZ Series Fibre Optic Components
Optical Receiver for Industrial Applications with Conductive ST-Threaded Port, RoHS Compliant
The HFBR-0400Z Series of components is designed to provide cost effective, high performance fiber optic communication links for industrial, power generation, power distribution, medical, transportation and gaming applications.
The HFBR-24x2Z fiber optic receiver is designed to operate with the Broadcom HFBR-14x2Z and HFBR-14x4Z fiber optic transmitter up to 5MBd. This part is characterized with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS® fiber optic cable. HFBR-24x2Z receiver incorporates an integrated photo IC containing a photodetector and dc amplifer driving an open-collector Schottky output transistor.
This product is also available in other popular industry-standard connectors: SMA, SC and FC.
The HFBR-24x2Z fiber optic receiver is designed to operate with the Broadcom HFBR-14x2Z and HFBR-14x4Z fiber optic transmitter up to 5MBd. This part is characterized with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS® fiber optic cable. HFBR-24x2Z receiver incorporates an integrated photo IC containing a photodetector and dc amplifer driving an open-collector Schottky output transistor.
This product is also available in other popular industry-standard connectors: SMA, SC and FC.
Features
•Low Cost Receiver
•Integrated Photo IC containing a photodetector and dc amplifier
•Data Rate up to 5MBd
•Link Distances up to 2km
•Specified with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 mm HCS Fiber
•Wide Operating Temperature Range -40C to +85C
•Unique Optical Port Design for Efficient Coupling
•Auto-Insertable and Wave Solderable
•No Board Mounting Hardware Required
•Integrated Photo IC containing a photodetector and dc amplifier
•Data Rate up to 5MBd
•Link Distances up to 2km
•Specified with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 mm HCS Fiber
•Wide Operating Temperature Range -40C to +85C
•Unique Optical Port Design for Efficient Coupling
•Auto-Insertable and Wave Solderable
•No Board Mounting Hardware Required
Applications
•Computer to Peripheral Links
•Computer Monitor Links
•Digital Cross Connect Links
•Modems and Multiplexers
•Suitable for Tempest Systems
•Industrial Control Links
•Computer Monitor Links
•Digital Cross Connect Links
•Modems and Multiplexers
•Suitable for Tempest Systems
•Industrial Control Links
Options:
•HFBR-2412TCZ (Conductive ST-Threaded Port)
•HFBR-2412TZ (Plastic ST-Threaded Port)
•HFBR-2412Z (Plastic ST Port)
•HFBR-2412TZ (Plastic ST-Threaded Port)
•HFBR-2412Z (Plastic ST Port)
Fibre Optics, Avago Technologies
Specifikationer
Attribute | Value |
|---|---|
| Maximum Data Rate | 5Mbit/s |
| Typical Rise Time | 4ns |
| Typical Fall Time | 4ns |
| Peak Wavelength | 865nm |
| Mounting Type | Through Hole |
| Number of Pins | 8 |
| Dimensions | 28.65 x 12.7 x 10.38mm |
| Connector Type | SC |
| Height | 10.38mm |
| Length | 28.65mm |
| Width | 12.7mm |
| Series | HFBR-14xxZ |
| Forward Voltage | 2.09 V |
