- RS-artikelnummer:
- 189-4860
- Tillv. art.nr:
- HFBR-57E0PZ
- Tillverkare / varumärke:
- Broadcom
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 10)
548,236 kr
(exkl. moms)
685,295 kr
(inkl. moms)
Enheter | Per unit | Per Tray* |
10 - 10 | 548,236 kr | 5 482,36 kr |
20 - 40 | 527,943 kr | 5 279,43 kr |
50 - 90 | 507,66 kr | 5 076,60 kr |
100 + | 494,511 kr | 4 945,11 kr |
- RS-artikelnummer:
- 189-4860
- Tillv. art.nr:
- HFBR-57E0PZ
- Tillverkare / varumärke:
- Broadcom
Lagstiftning och ursprungsland
Produktdetaljer

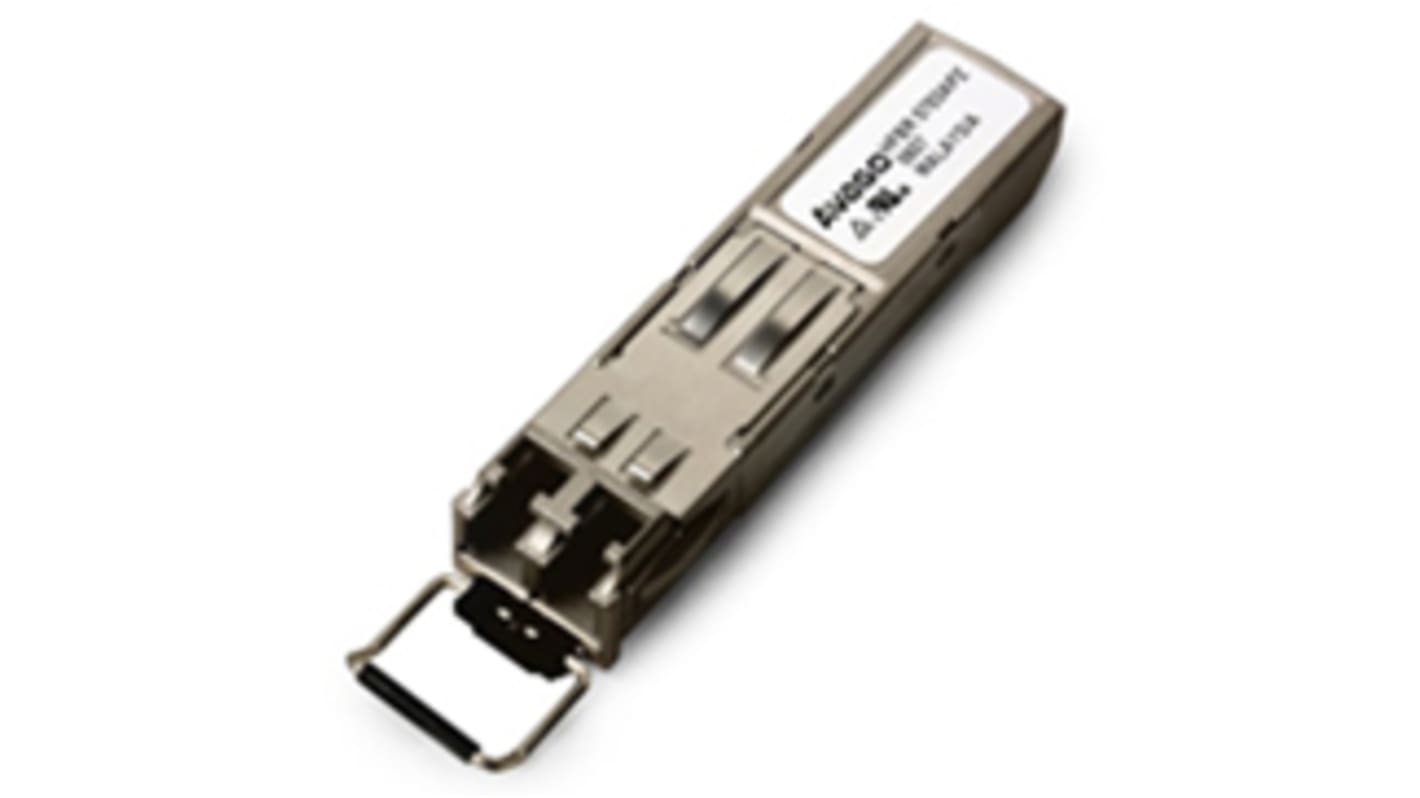

HFBR-57E0 Series Fibre-Optic Transceiver
The HFBR-57E0 series are multimode transceivers with a pluggable LC connector for ATM, FDDI, Fast Ethernet and SONET OC-3/SDH STM-1. The small form factor transceiver can be used in multimode fibre fast Ethernet and SONET OC-3 for ATM switches, routers and SONET/SDH switch set-ups. The Avago Technologies transceiver works on a 1300nm wavelength.
The transmitter part uses a 1300 nm InGaAsP LED and the receiver has InGaAs PIN photodiode together with a silicon trans impedance preamplifier IC.
The transmitter part uses a 1300 nm InGaAsP LED and the receiver has InGaAs PIN photodiode together with a silicon trans impedance preamplifier IC.
RoHS Compliant
Manufactured in an ISO 9001 certified facility
Temperature range: 0°C to +70°C HFBR-57E0LZ/PZ
Full compliance with ATM Forum UNI SONET OC-3 multimode fibre physical layer specification
Full compliance with the optical performance requirements of the FDDI PMD Standard
Full compliance with the optical performance requirements of 100Base-FX version of IEEE802.3u
Industry standard Small Form Pluggable (SFP) package
LC duplex connector optical interface
Operates with 62.5/125μm and 50/125μm multimode fibre
Single +3.3 V power supply
+3.3 V TTL LOS output
Receiver outputs: squelch enabled
Applications: OC-3 SFP transceivers are designed for ATM LAN and WAN applications
Manufactured in an ISO 9001 certified facility
Temperature range: 0°C to +70°C HFBR-57E0LZ/PZ
Full compliance with ATM Forum UNI SONET OC-3 multimode fibre physical layer specification
Full compliance with the optical performance requirements of the FDDI PMD Standard
Full compliance with the optical performance requirements of 100Base-FX version of IEEE802.3u
Industry standard Small Form Pluggable (SFP) package
LC duplex connector optical interface
Operates with 62.5/125μm and 50/125μm multimode fibre
Single +3.3 V power supply
+3.3 V TTL LOS output
Receiver outputs: squelch enabled
Applications: OC-3 SFP transceivers are designed for ATM LAN and WAN applications
Fibre Optics, Avago Technologies
Specifikationer
Attribute | Value |
---|---|
Maximum Data Rate | 125 Mbit/s, 155 Mbit/s |
Transmitter Typical Rise Time | 1.2ns |
Transmitter Typical Fall Time | 2ns |
Receiver Jitter at Maximum Data Rate | 267ns |
Transmitter Jitter at Maximum Data Rate | 227ns |
Number of Pins | 20 |
Mounting Type | Surface Mount |
Dimensions | 57.8 x 13.8 x 13mm |
Connector Type | LC |
Peak Transmitter Wavelength | 1380nm |
Wavelength of Peak Sensitivity | 1380nm |
Height | 13mm |
Length | 57.8mm |
Package Type | SFP |
Width | 13.8mm |
Output Signal Type | ECL, PECL |
Series | HFBR |
