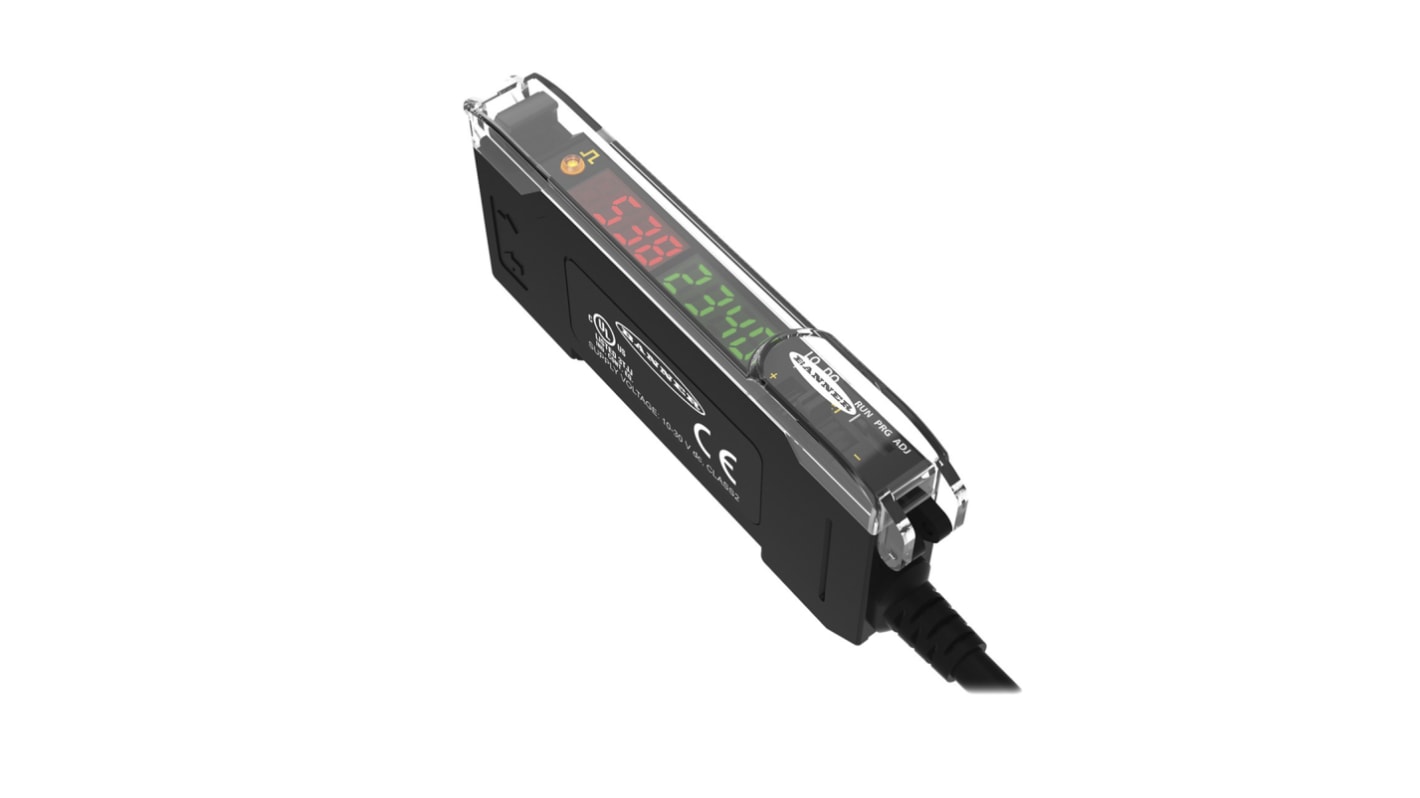

Banner Fibre Amplifier, PNP Output IO-Link, 960 mW, IP50, 10 → 30 V dc

  • RS-artikelnummer 177-8705
  • Tillv. art.nr DF-G1-PS-2M
  • Tillverkare / varumärke Banner
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

DF-G1 Series Fibre Amplifiers

Turck Banner DF-G1 series of fibre amplifiers are a high performance dual digital display that allows simple user set-up and programming. The DF-G1 series features expert TEACH and SET methods to ensure optimal; gain and threshold for all applications.

ECO display mode
Advanced cross talk avoidance algorithm
Response speeds as fast as 200 microseconds
High performance 32 bit microprocessor with a 12 bit ADC
Works with any 2.2 mm fibre optic cable

Turck Banner Sensors

Specifikationer
Attribute Value
Output Type PNP
Terminal Type Cable
Response Time 2 (Long Range) ms, 5 (Extra Long Range) ms, 200 (High Speed) μs, 500 (Standard) μs
Light Source Red LED
Electrical Connection 4-Wire
Power Consumption 960 mW
IP Rating IP50
Housing Material Thermoplastic
Supply Voltage 10 → 30 V dc
Length 86.9mm
Width 10mm
Interface IO-Link
Dimensions 86.9 x 10 x 31.5 mm
Minimum Operating Temperature -10°C
Standards Met CE Certified, CULus Listed
Mounting Type DIN Rail
Depth 31.5mm
Maximum Operating Temperature +55°C
Tillfälligt slut i lager – restorder för leverans 2020-01-20
Pris (ex. moms) Each
2 194,53 kr
(exkl. moms)
2 743,16 kr
(inkl. moms)
Enheter
Per unit
1 +
2 194,53 kr
