- RS-artikelnummer:
- 189-4851
- Tillv. art.nr:
- HFBR-2531Z
- Tillverkare / varumärke:
- Broadcom
800 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 200)
131,257 kr
(exkl. moms)
164,071 kr
(inkl. moms)
Enheter | Per unit | Per Tube* |
200 + | 131,257 kr | 26 251,40 kr |
- RS-artikelnummer:
- 189-4851
- Tillv. art.nr:
- HFBR-2531Z
- Tillverkare / varumärke:
- Broadcom
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

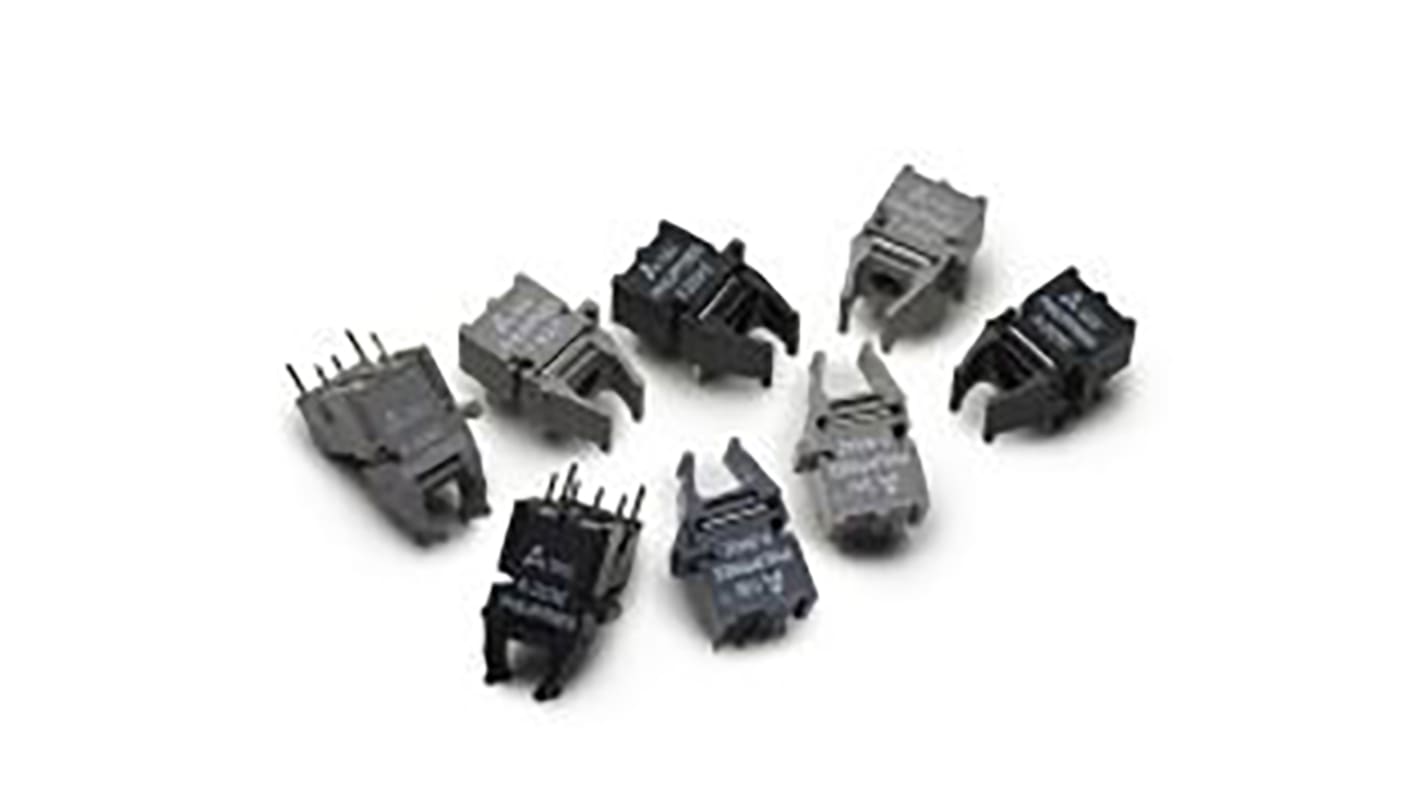

HFBR-0500Z Series Fibre Optic Connection
The HFBR-x5xxZ family, from Avago Technologies, form a part of the Versatile Link series. They are fibre optic link components including transmitters, receivers, connectors and cables. The HFBR-x5xxZ series are suitable solutions for problems with voltage isolation and insulation, EMI/RFI immunity or data security.
This family of devices consists of a variety of package configurations and connectors, providing a range of mechanical design solutions for the necessary application requirements.
The HFBR-x5xxZ transmitters use a 660nm LED for easy visibility. The receivers include a monolithic DC coupled, digital IC receiver with open collector Schottky output transistor.
The HFBR-x5xxZ series are ideal for a wide variety of applications including; motor controller triggering, data communications, local area networks and noise immune communication in audio and video equipment.
This family of devices consists of a variety of package configurations and connectors, providing a range of mechanical design solutions for the necessary application requirements.
The HFBR-x5xxZ transmitters use a 660nm LED for easy visibility. The receivers include a monolithic DC coupled, digital IC receiver with open collector Schottky output transistor.
The HFBR-x5xxZ series are ideal for a wide variety of applications including; motor controller triggering, data communications, local area networks and noise immune communication in audio and video equipment.
Features of the HFBR-x5xxZ series:
- Fibre optic components
- Enhanced digital links: dc-5 MBd
- Extended distance links: up to 120m at 40kBd
- Low current link: 6mA peak supply current
- Horizontal and vertical mounting
- Interlocking feature
- High noise immunity
- Easy connecting: simplex, duplex and latching connectors
- Flame retardant
- Compatible with standard TTL circuitry
- Fibre optic components
- Enhanced digital links: dc-5 MBd
- Extended distance links: up to 120m at 40kBd
- Low current link: 6mA peak supply current
- Horizontal and vertical mounting
- Interlocking feature
- High noise immunity
- Easy connecting: simplex, duplex and latching connectors
- Flame retardant
- Compatible with standard TTL circuitry
Fibre Optics, Avago Technologies
Specifikationer
Attribute | Value |
---|---|
Maximum Data Rate | 5Mbit/s |
Wavelength of Peak Sensitivity | 660 (Typ.)nm |
Number of Pins | 6 |
Mounting Type | Through Hole |
Dimensions | 18.8 x 12.19 x 7.62mm |
Height | 7.62mm |
Length | 18.8mm |
Width | 12.19mm |
Output Signal Type | TTL |
Series | HFBR |
