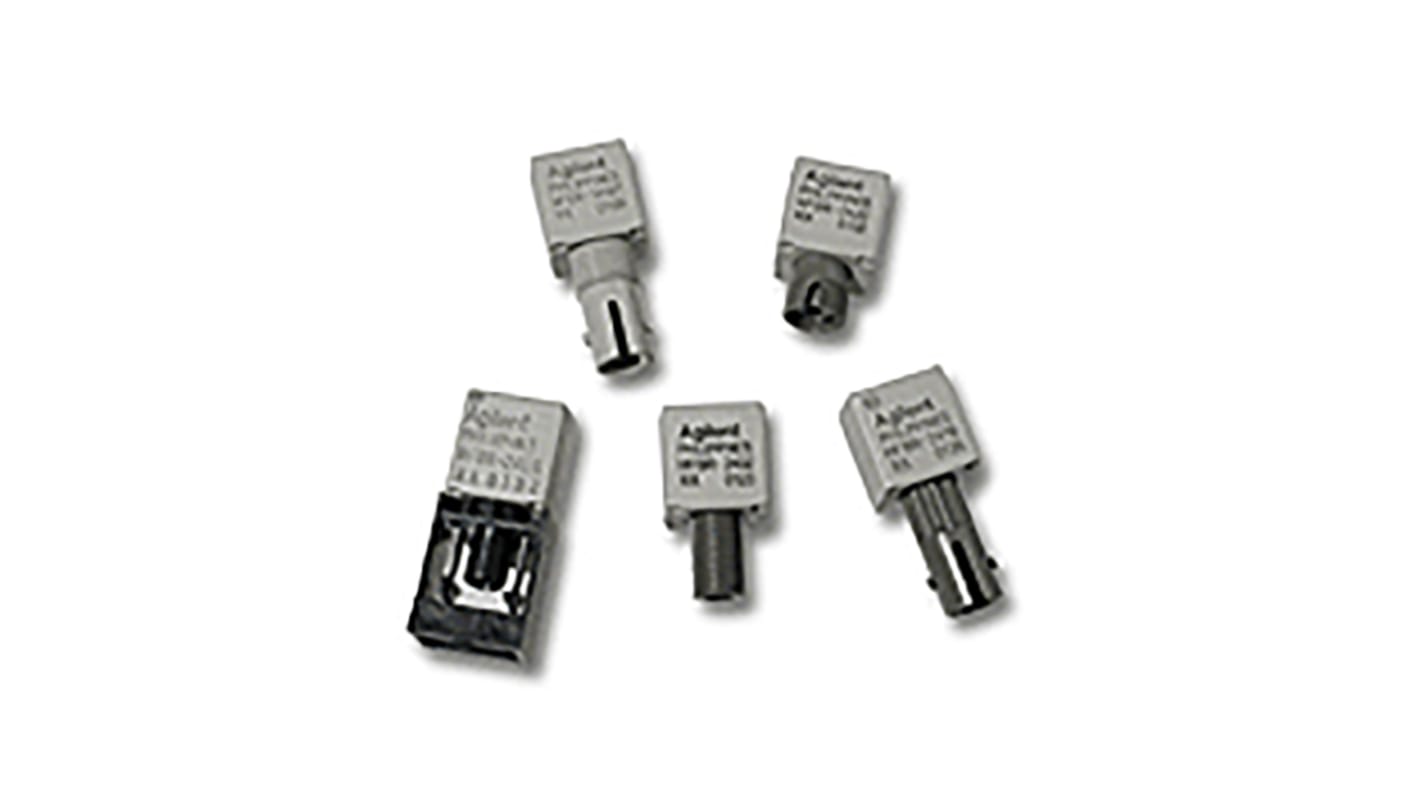

Broadcom HFBR-2412TZ 5Mbit/s 865nm Fibre Optic Receiver, ST Connector
- RS-artikelnummer:
- 189-4835
- Tillv. art.nr:
- HFBR-2412TZ
- Tillverkare / varumärke:
- Broadcom
Tillfälligt slut i lager – restorder för leverans 2024-07-24
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 60)
209,433 kr
(exkl. moms)
261,791 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 60 + | 209,433 kr | 12 565,98 kr |
- RS-artikelnummer:
- 189-4835
- Tillv. art.nr:
- HFBR-2412TZ
- Tillverkare / varumärke:
- Broadcom
Lagstiftning och ursprungsland
Produktdetaljer
HFBR-0400TZ Series Miniature Link Components
The HFBR-x4xxTZ series, from Avago Technologies, are miniature link components with the threaded ST port option. They come with 5.1mm (0.2 inch) of 3/8-32 UNEF-2A threads on the port.
Components with the threaded ST port have the same high electrical, optical and mechnical performance as that of the base components. The HFBR-x4xxTZ devices are suitable for panel mounting to chassis walls with a maximum thickness of 2.8mm (0.11 inch) when using nuts and washers from the kit.
Components with the threaded ST port have the same high electrical, optical and mechnical performance as that of the base components. The HFBR-x4xxTZ devices are suitable for panel mounting to chassis walls with a maximum thickness of 2.8mm (0.11 inch) when using nuts and washers from the kit.
Features of the HFBR-x4xxTZ series:
- Threading enables ST styled port components to be panel mounted
- Compatible with current ST multimode connectors
- Threading enables ST styled port components to be panel mounted
- Compatible with current ST multimode connectors
Fibre Optics, Avago Technologies
Specifikationer
Attribute | Value |
|---|---|
| Maximum Data Rate | 5Mbit/s |
| Wavelength of Peak Sensitivity | 865nm |
| Typical Rise Time | 3.3ns |
| Typical Fall Time | 3.3ns |
| Number of Pins | 8 |
| Mounting Type | Through Hole |
| Dimensions | 27.2 x 12.7 x 10.2mm |
| Connector Type | ST |
| Height | 10.2mm |
| Length | 27.2mm |
| Width | 12.7mm |
| Output Signal Type | TTL |
| Series | HFBR |
