Jag Haul Kit Petzl P044AA00 Containing Heaves with Sealed Ball Bearings P044AA00

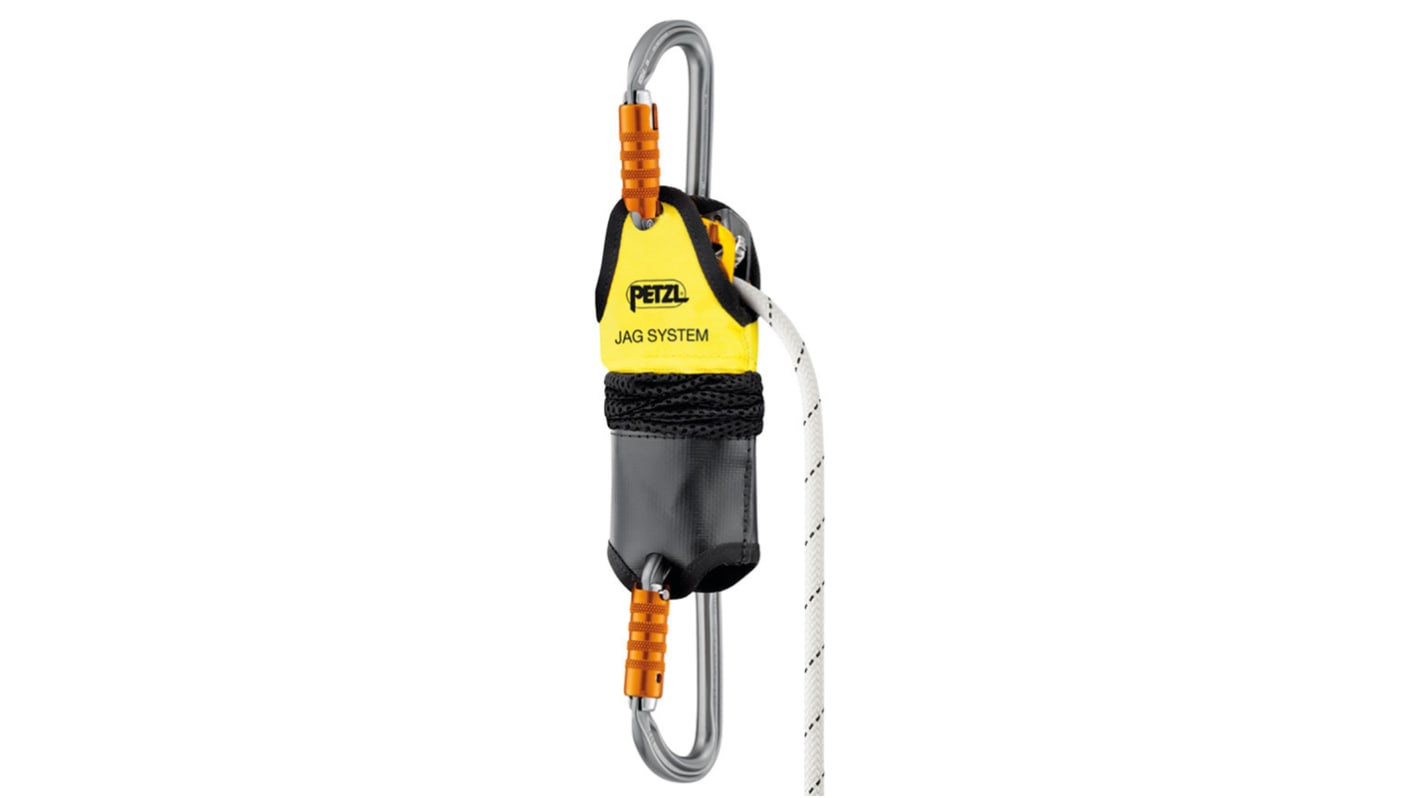

Petzl JAG System Haul Kit

Petzl JAG System is a versatile and compact haul kit. The kit is used for pickoffs a tensioning system and for making a releasable anchor due to the 4:1 mechanical advantage and efficiency. The sheaves have sealed ball bearings. The JAG kit is easy to deploy and the flexible cover prevents the risk of tangling. When collapsed the kit is compact and usage is possible even when the distance to the anchor is short. A colour coded haul end provides immediate identification.

FEATURES and BENEFITS:

JAG system haul kit Pickoffs
Making releasable anchor
Making tensioning system 4:1 Mechanical advantage
Can be coupled with an I’D descender – makes a reversible rescue kit
7.7 mm Lightweight rope
Excellent grip
Excellent efficiency
Sheaves with sealed ball bearings
Haul end colour coded – yellow
Haul end of cover holds connectors in position allowing clipping
Compact collapsed kit
Usage possible even at short distance to anchors
Quick and easy to deploy
Reduced risk of tangling – flexible cover
Versatile
Supplied with 2 x Am’D TRIACT- LOCK auto-locking carabiners

SPECIFICATIONS:

Made from Aluminium, Nylon, Polyurethane Rope diameter – 8 mm
Sheave type – sealed ball bearings
Working load – 6 kN
Breaking strength – 16 kN
Efficiency – 91%
P044AA00
Collapsed length – 0.32 m
Deployed length – 1 m
Weight 610 g

Standards

EAC
