10/100 Multi Mode Fiber Copper Fast Ethe

  • RS-artikelnummer 186-3928
  • Tillv. art.nr MCM110ST2GB
  • Tillverkare / varumärke Startech
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

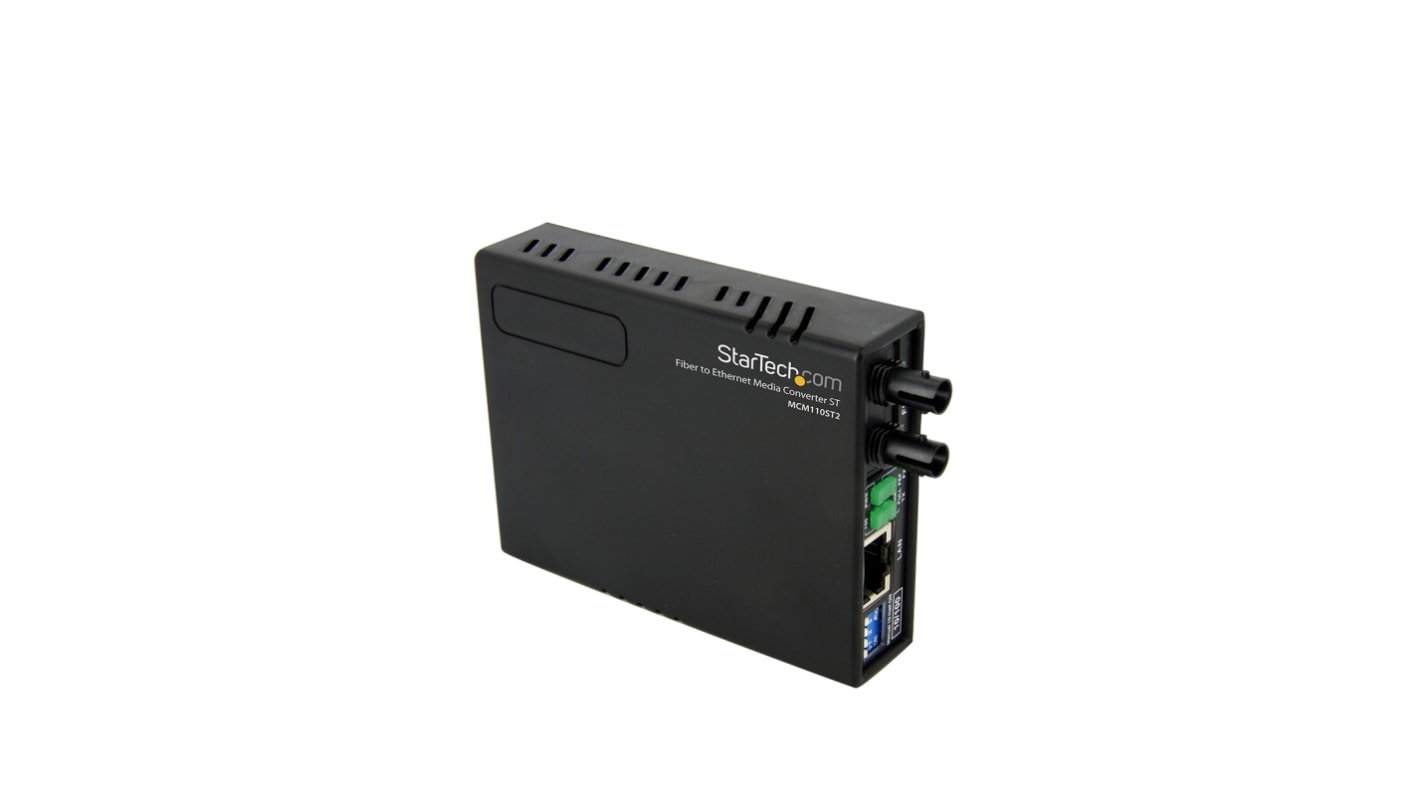

MCM110ST2GB Fiber Media Converter

This Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.

Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

Features & Benefits

• 1310nm wavelength
• Auto detects half/full duplex transfer mode from the TX port.
• Auto negotiation or Force 10/100 Mbps and MDI/MDI-X (Crossover for TX port).
• Compatible with 3COM™, Cisco™, Lucent™ and Nortel™ networks
• Forward 9K jumbo packets in converter mode
• It’s compact design and weight makes it portable and unobtrusive to carry
• LED Indicators for simple Ethernet/Fiber network link monitoring
• Provides switch configuration of half/full duplex transfer mode for FX port.
• Support flow control (Pause)
• Supports a maximum multi mode fiber optic cable distance of 2 km
• Supports a maximum packet size of 1600 bytes.
• Supports IEEE 802.1q Tag VLAN pass thru
• Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
• Supports Link Fault Pass through (LFP)
• Supports Q in Q double tagged frame transparent
• Includes both the UK and EU power plug adapters
• Best value fiber media converter
• Easily installed into any scenario with little to no configuration needed
• Free Lifetime Technical Support
• Lightweight design can be mounted anywhere

Applications

• Connect remote sub-networks to larger fiber optic networks/backbones
• Connect via fiber optics two or more buildings on the same campus
• Designed for ethernet expansion, primarily for large workgroups requiring higher network speeds and increased bandwidth
• Extend your Ethernet connection up to 2km away at full speed using fiber optics.

What’s in the package?

• Media Converter
• UK power plug adapter
• Power Adapter
• User's Manual

FAQs

What is the maximum distance the converter supports?
The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

Specifikationer
Attribute Value
Fibre Operating Mode Half/Full Duplex
Fibre Type Multi Mode
Maximum Transfer Distance 2km
Maximum Data Transfer Rate 10/100Mbps
Connection Port RJ45, SC
8 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
913,92 kr
(exkl. moms)
1 142,40 kr
(inkl. moms)
Enheter
Per unit
1 +
913,92 kr
