- RS-artikelnummer:
- 772-9534
- Tillv. art.nr:
- LAN8720AI-CP
- Tillverkare / varumärke:
- Microchip
- RS-artikelnummer:
- 772-9534
- Tillv. art.nr:
- LAN8720AI-CP
- Tillverkare / varumärke:
- Microchip
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

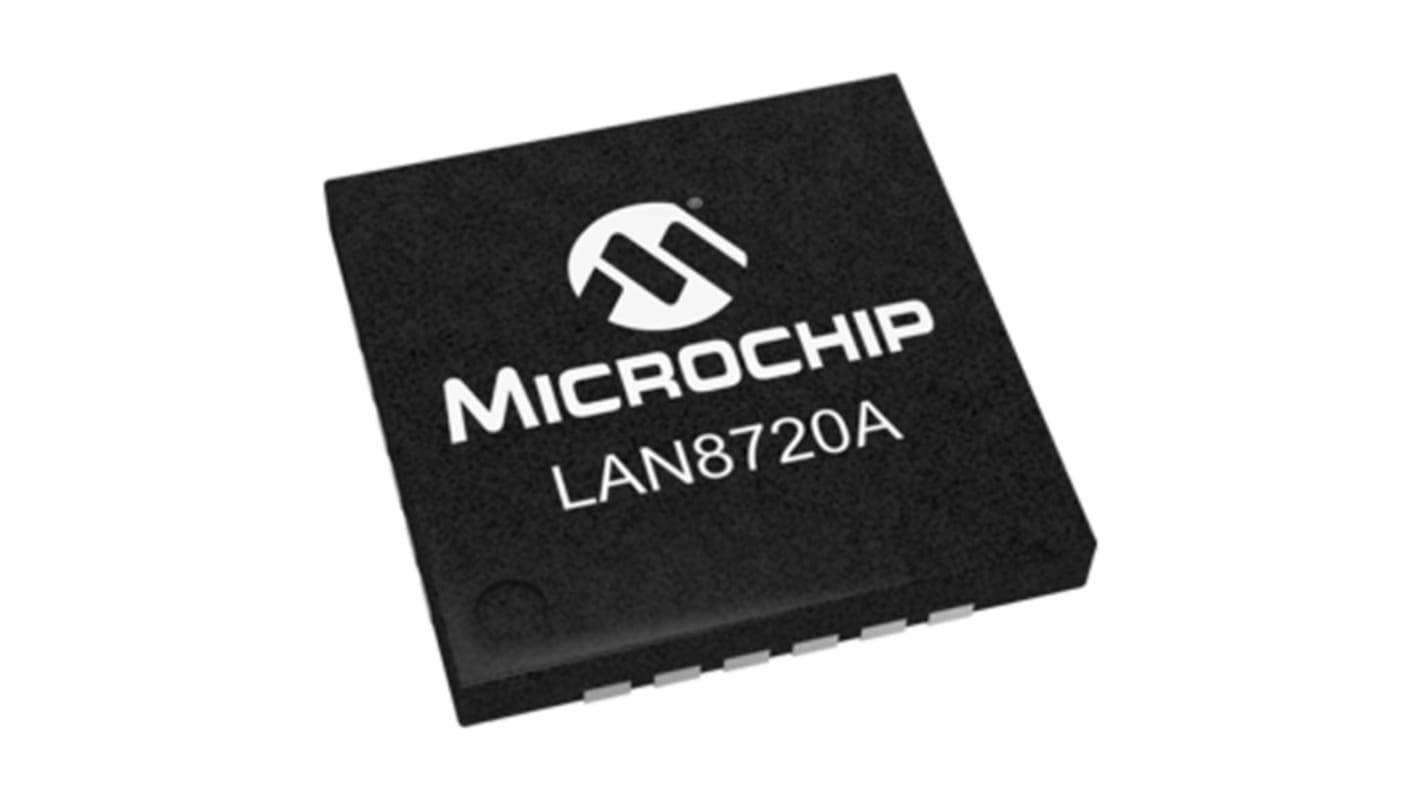

LAN8720A 10/100 Ethernet Transceivers
Microchip's LAN8720A/LAN8720Ai are high-performance, small-footprint, low-power 10BASE-T/100BASE-TX transceivers specifically designed for today's consumer electronics, industrial and enterprise applications. The LAN8720A/LAN8720Ai are the industry's smallest footprint solutions with up to 40% lower power consumption than existing Microchip transceivers. The LAN8720A/LAN8720Ai have an integrated voltage regulator and ESD protection components to help reduce Bill of Material (BOM) costs. The LAN8720A/LAN8720Ai connect via an RMII interface.
Integrated 1.2V linear regulator
Incorporates flexPWR® technology
Industry leading power consumption
Up to 40% reduction from existing Microchip solutions
Flexible I/O voltage range from 3.6V to 1.6V
Extremely low energy detect standby mode
Low-Cost 25MHz crystal for MII/RMII
Incorporates flexPWR® technology
Industry leading power consumption
Up to 40% reduction from existing Microchip solutions
Flexible I/O voltage range from 3.6V to 1.6V
Extremely low energy detect standby mode
Low-Cost 25MHz crystal for MII/RMII
Ethernet Communications - Microchip
Specifikationer
Attribute | Value |
---|---|
IC Type | Transceiver IC |
Data Rate | 10 Mbps, 100Mbps |
Number of Transceivers | 1 |
Standard Supported | IEEE 802.3u |
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 24 |
Typical Operating Supply Voltage | 3.3 V |
Dimensions | 4.1 x 4.1 x 0.95mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
