- RS-artikelnummer:
- 179-3967
- Tillv. art.nr:
- KSZ9893RNXC
- Tillverkare / varumärke:
- Microchip
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Pris (ex. moms) Var (i en bricka med 260)
79,276 kr
(exkl. moms)
99,095 kr
(inkl. moms)
Enheter | Per unit | Per Tray* |
260 + | 79,276 kr | 20 611,76 kr |
- RS-artikelnummer:
- 179-3967
- Tillv. art.nr:
- KSZ9893RNXC
- Tillverkare / varumärke:
- Microchip
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

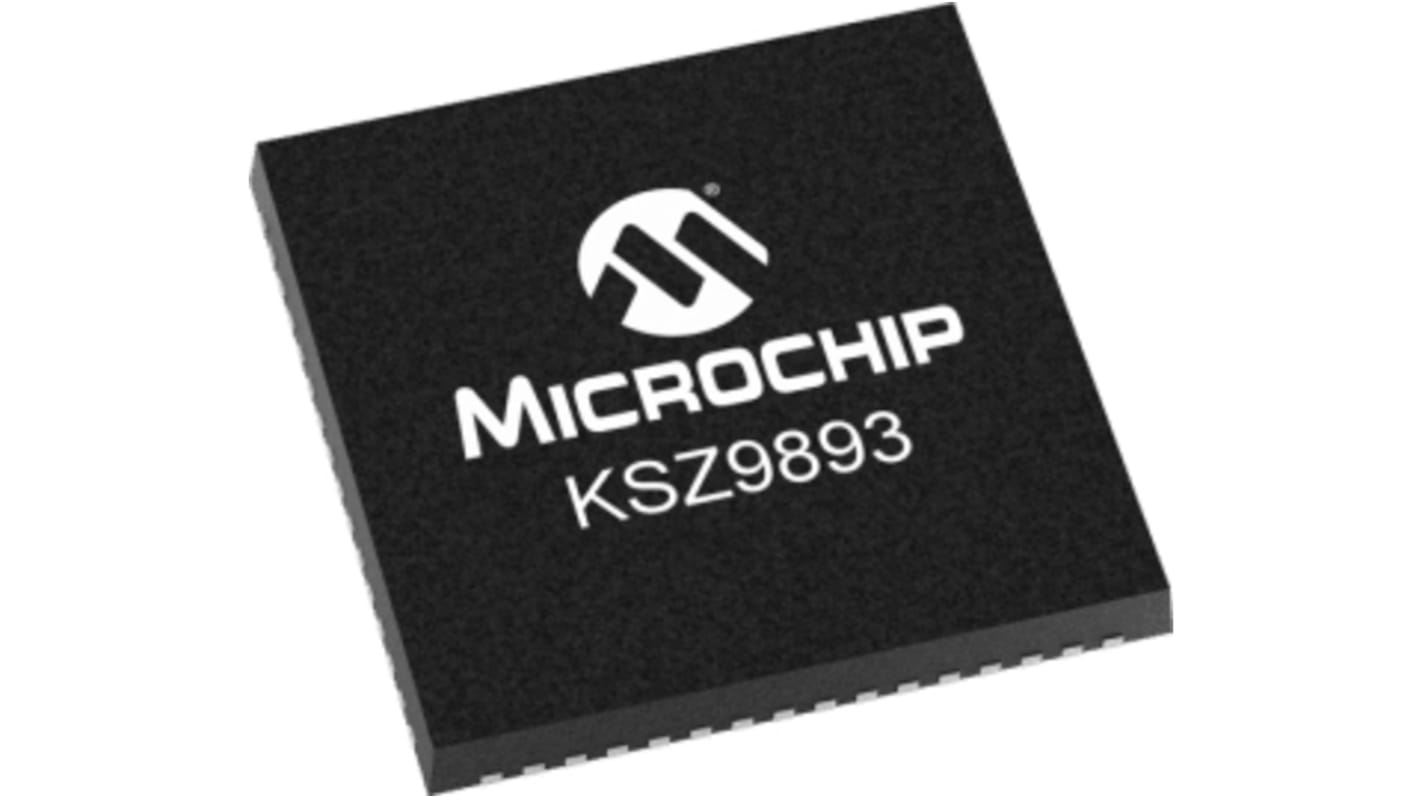

The KSZ9893 is a fully integrated layer 2, managed, three-port gigabit Ethernet switch with numerous advanced features. Two of the three ports incorporate 10/100/1000 Mbps PHYs. The other port has interfaces that can be configured as RGMII, MII or RMII. This port may connect directly to a host processor or to an external PHY. Full register access is available by SPI or I2C interfaces, and by optional in-band management via any of the data ports.
Non-blocking wire-speed Ethernet switching fabric
Full-featured forwarding and filtering control, including Access Control List (ACL) filtering
Full VLAN and QoS support
Two ports with integrated 10/100/1000BASE-T PHYs
One port with 10/100/1000 Ethernet MAC and configurable RGMII/MII/RMII interface
IEEE 802.1X port-based authentication support
EtherGreenTM power management features, including low power standby and IEEE 802.3az
Flexible management interface options: SPI, I2C, MIIM, and in-band management via any port
Full-featured forwarding and filtering control, including Access Control List (ACL) filtering
Full VLAN and QoS support
Two ports with integrated 10/100/1000BASE-T PHYs
One port with 10/100/1000 Ethernet MAC and configurable RGMII/MII/RMII interface
IEEE 802.1X port-based authentication support
EtherGreenTM power management features, including low power standby and IEEE 802.3az
Flexible management interface options: SPI, I2C, MIIM, and in-band management via any port
Specifikationer
Attribute | Value |
---|---|
Network Interface | RGMII,MII,RMII |
IC Type | Switch IC |
Data Rate | 10/100Mbps |
Number of Ports | 3 |
Mounting Type | Surface Mount |
VLAN Support | Yes |
Package Type | VQFN |
Pin Count | 64 |
Dimensions | 8 x 8 x 0.85mm |
Maximum Operating Temperature | +70 °C |
Minimum Operating Temperature | 0 °C |
