- RS-artikelnummer:
- 821-2945
- Tillv. art.nr:
- MHRJ126P6CR
- Tillverkare / varumärke:
- MH Connectors
- RS-artikelnummer:
- 821-2945
- Tillv. art.nr:
- MHRJ126P6CR
- Tillverkare / varumärke:
- MH Connectors
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

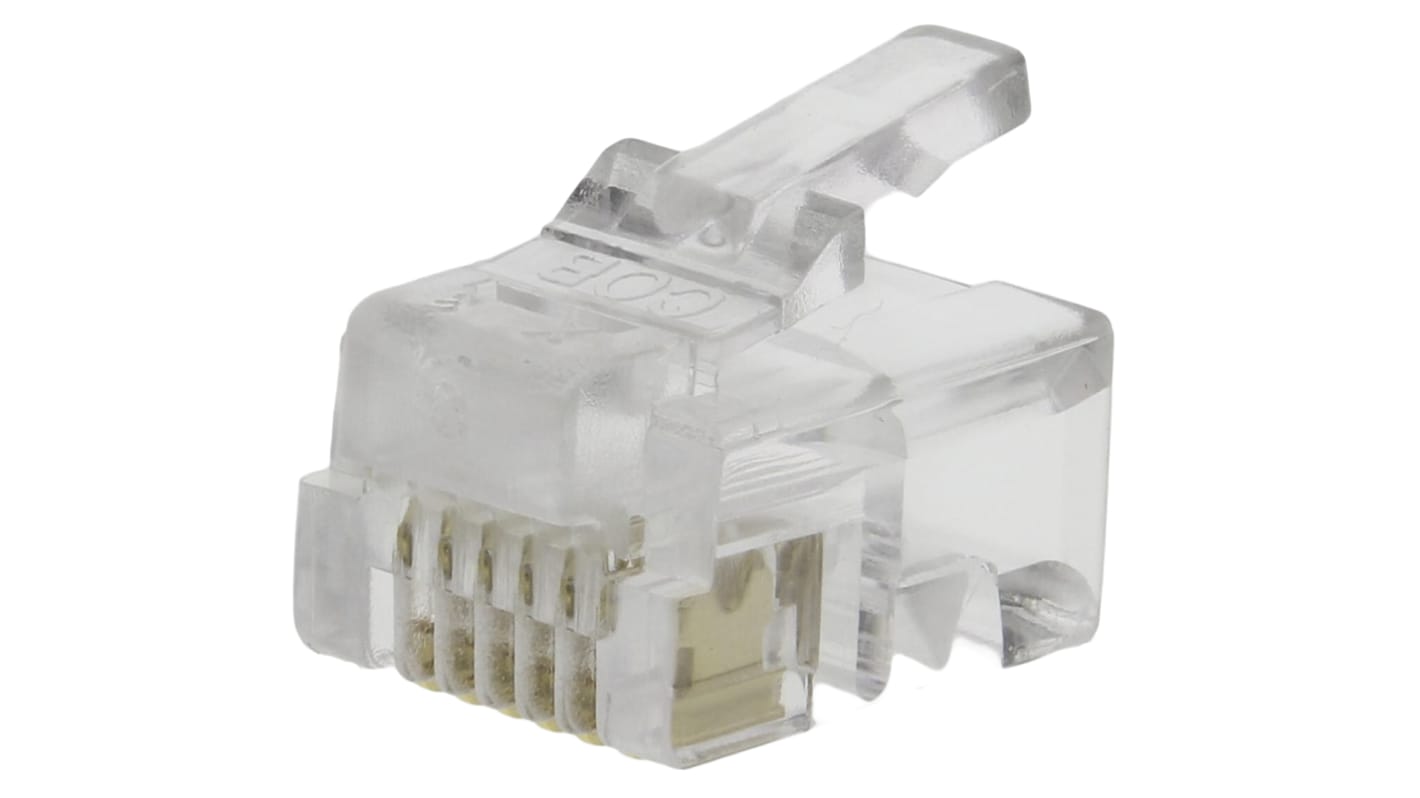

MH Connectors RJ12 Modular Plug
The MH connectors MHRJ series RJ12 modular plug is a robust, male plug with gold plated contacts along with a polycarbonate housing. These can be crimped with standard crimp tools and have insulating contacts with a true knife blade. The plug has a length of 13.33mm and width of 9.65mm.
Features and Benefits
6P6C number of ways
Straight orientation
Straight orientation
Certifications
UL94V-0 approved
Specifikationer
Attribute | Value |
---|---|
Ethernet Connector Type | RJ12 Connector |
Gender | Male |
Mounting Type | Cable Mount |
Number of Ways | 6P6C |
Shield Type | UTP |
Orientation | Straight |
Length | 13.33mm |
Width | 9.65mm |
Series Number | MHRJ12-6P6CR |
Series | MHRJ |
Contact Plating | Gold |
