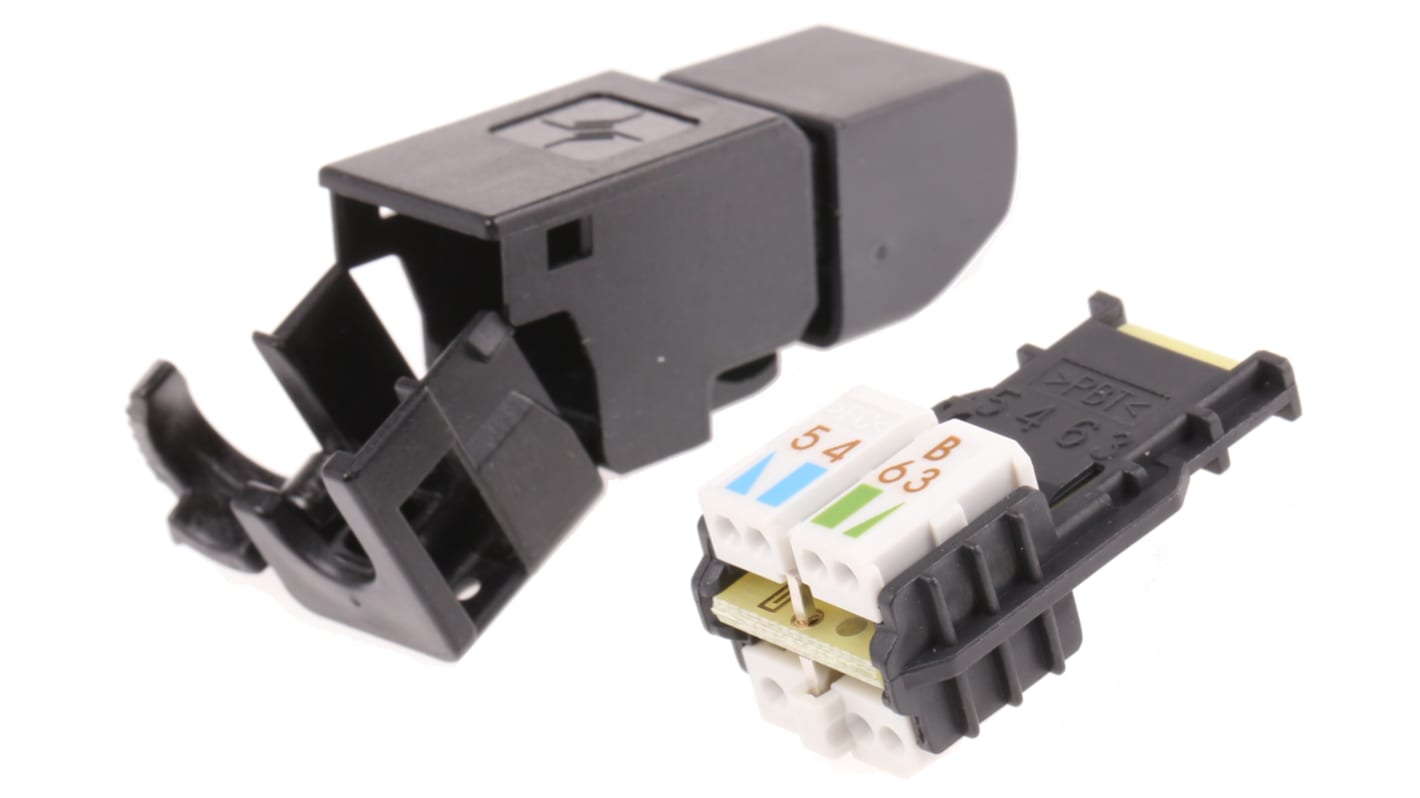

Telegartner UFP8 Series Male RJ45 Connector, Cable Mount, Cat6a, UTP Shield
- RS-artikelnummer:
- 765-3698
- Tillv. art.nr:
- J00026A3001
- Tillverkare / varumärke:
- Telegartner
22 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
151,74 kr
(exkl. moms)
189,68 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 14 | 151,74 kr |
| 15 - 49 | 141,02 kr |
| 50 + | 132,05 kr |
- RS-artikelnummer:
- 765-3698
- Tillv. art.nr:
- J00026A3001
- Tillverkare / varumärke:
- Telegartner
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
UFP8 T568B Cat 6a Field Termination
≥ 750 mating cycles
Contact finish material: Ni1.2Au0.8
Housing material: PC UL94-V0 black
Cu conductor diameter:...solid 0.51 – 0.64 mm (AWG 24/1 – 22/1) or stranded 0.46 – 0.76 mm (AWG 27/7 – 22/7)
Core diameter: 0.85 – 1.1 mm
Outer diameter of cable: 5.5 – 8.5 mm
Reusable piercing contacts: ≤ 4 cycles
Temperature range: -40°C to 70°C
Contact finish material: Ni1.2Au0.8
Housing material: PC UL94-V0 black
Cu conductor diameter:...solid 0.51 – 0.64 mm (AWG 24/1 – 22/1) or stranded 0.46 – 0.76 mm (AWG 27/7 – 22/7)
Core diameter: 0.85 – 1.1 mm
Outer diameter of cable: 5.5 – 8.5 mm
Reusable piercing contacts: ≤ 4 cycles
Temperature range: -40°C to 70°C
Specifikationer
Attribute | Value |
|---|---|
| Ethernet Connector Type | RJ45 Connector |
| Gender | Male |
| LAN Category | Cat6a |
| Mounting Type | Cable Mount |
| Shield Type | UTP |
| Orientation | Straight |
| Length | 16.35mm |
| Width | 13.8mm |
| Depth | 44.2mm |
| Series | UFP8 |
| Series Number | J00026A |
| Contact Plating | Nickel Gold Alloy |
