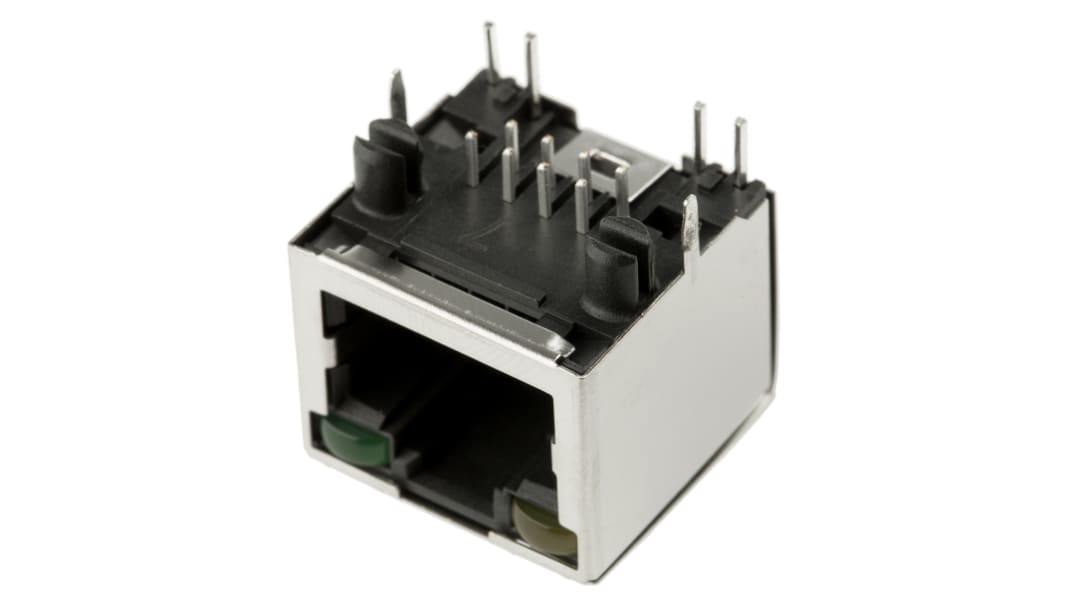

Amphenol, RJHS, Female Cat5e RJ45 Connector

  • RS-artikelnummer 257-8785
  • Tillv. art.nr RJHSE5381
  • Tillverkare / varumärke Amphenol ICC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Amphenol LED Sockets

From Amphenol, this range of PCB mounting RJ45 (8//8 way) socket have built-in LEDs and are designed for category 5 performance. Available in both shielded and unshielded versions, a thermoplastic body ensures a component that is robust and compact. The range is available not only with discrete green and yellow LEDs, but also with bi-colour LED versions. The bi-colour types have two LEDs, both with green/yellow indication. All models are highly reliable and excellent quality.

Features & Benefits

A maximum contact resistance of 10 mΩ A minimum insulation resistance of 500 mΩ
A current rating of 1.5A
A voltage rating of 125 V ac

RJ45 Socket LED Ratings

Forward Current: 7 mA Forward Voltage: 2 V to 1 V (Typical.)
Reverse Voltage: 5 V Minimum
Power Dissipation Green: 24 mW
Power Dissipation Yellow: 36 mW

Note

For discrete types, viewing from the front of the socket, the green LED is on the right, the yellow on the left.

//media.rs-online.com/t_line/L0257878-10.gif
//media.rs-online.com/t_line/L257877-01.gif
//media.rs-online.com/t_line/L257878-01.gif
Specifikationer
Attribute Value
Ethernet Connector Type RJ45 Connector
Gender Female
LAN Category Cat5e
Mounting Type Through Hole
Number of Ports 1
Number of Ways 8
Connector Type RJ45
Shield Type Tin Plated Copper Alloy
Orientation Right Angle
Length 16.51mm
Depth 15.75mm
Series RJHS
Contact Material Phosphor Bronze
Contact Plating Gold over Nickel
1106 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
20,99 kr
(exkl. moms)
26,24 kr
(inkl. moms)
Enheter
Per unit
1 - 14
20,99 kr
15 - 49
19,54 kr
50 +
18,72 kr
