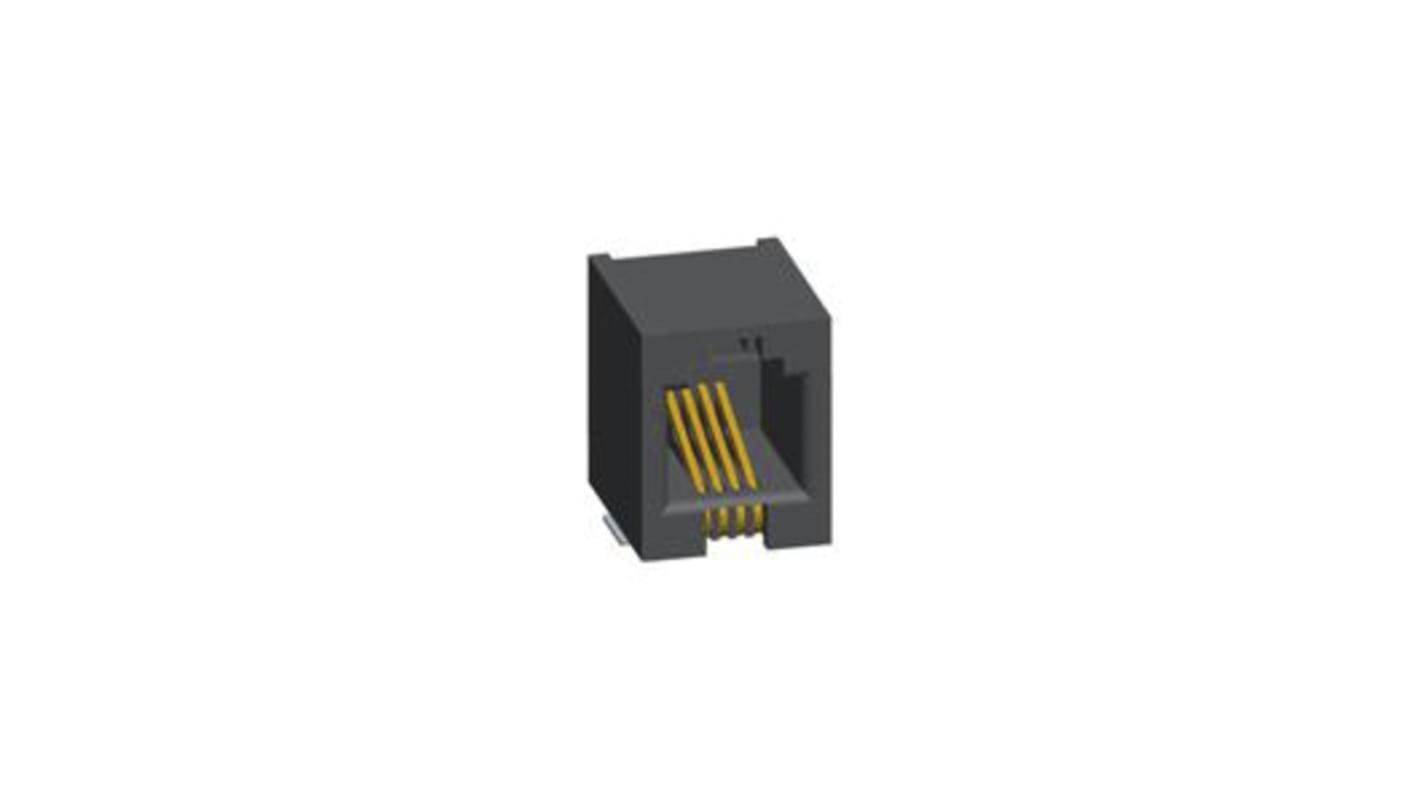

Amphenol FCI, Female Cat3 RJ22 Connector

  • RS-artikelnummer 182-2208
  • Tillv. art.nr 73306-111LF
  • Tillverkare / varumärke Amphenol ICC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): FR
Produktdetaljer

RJ45 Modular Jack, Input Output Connectors, CAT 3, Standard, 4P4C, Right Angle, Surface Mount, without Shield, 1 Port.

Specifikationer
Attribute Value
Ethernet Connector Type RJ22 Connector
Gender Female
LAN Category Cat3
Mounting Type PCB Mount
Number of Ways 4
Connector Type Modular Jack
Shield Type Unshielded
Orientation Right Angle
Length 11.68mm
Width 12.7mm
Depth 14mm
Series Number 73306
Contact Material Phosphor Bronze
Contact Plating Gold
Tillfälligt slut i lager – restorder för leverans 2020-11-12
Pris (ex. moms) Each (On a Reel of 280)
10,467 kr
(exkl. moms)
13,084 kr
(inkl. moms)
Enheter
Per unit
Per Reel*
280 +
10,467 kr
2 930,76 kr
