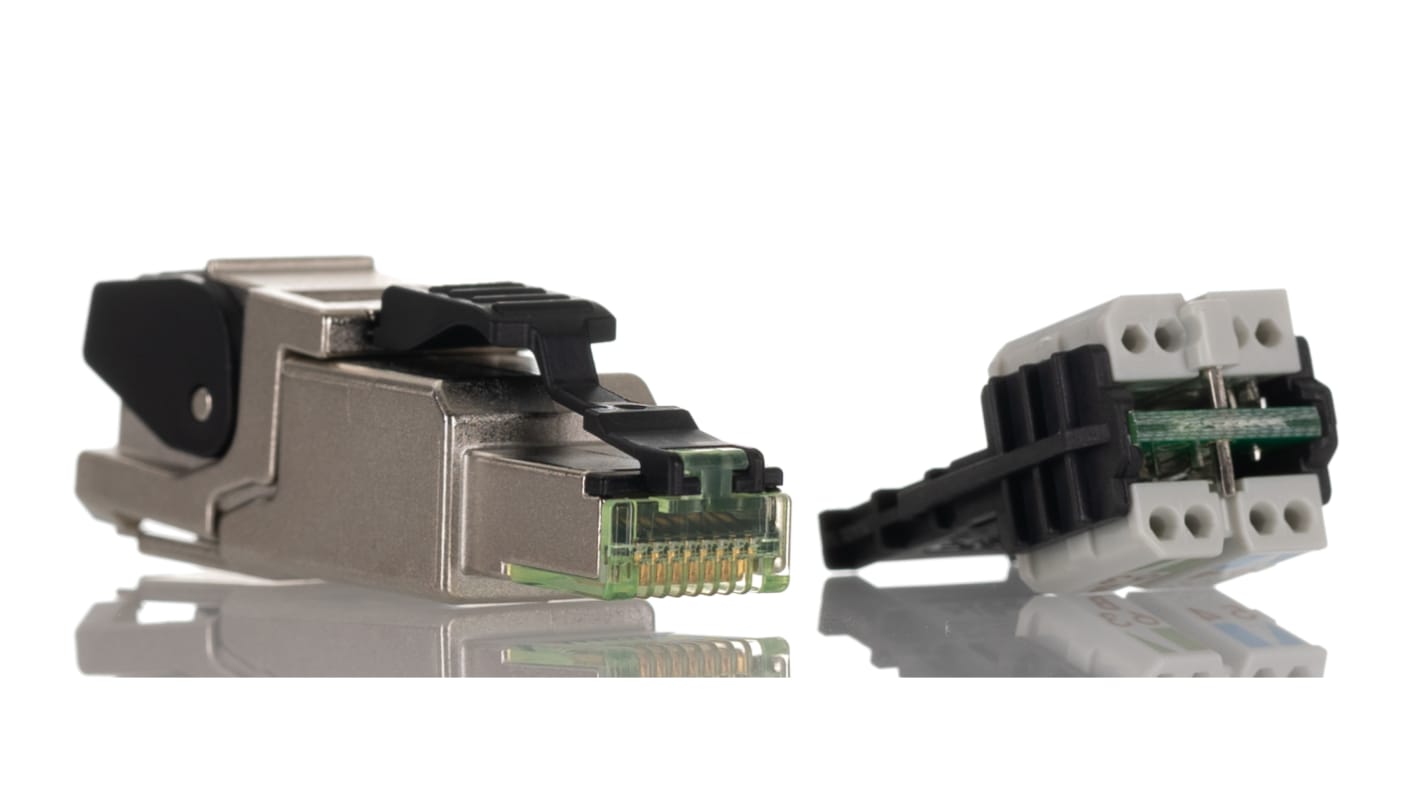

Molex, Male Cat5e, Cat6a RJ45 Connector

  • RS-artikelnummer 134-8796
  • Tillv. art.nr 130047-8010
  • Tillverkare / varumärke Molex
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

Brad® RJ45 Field Attachable Shielded Plugs

From Molex, a range of Cat6a RJ45 field attachable shielded connectors. These IP20 RJ45 plugs are best suited for harsh environment and high vibration applications. With gold plated brass contacts in a robust diecast zinc housing, these male Cat6a connectors provide an excellent solution to the most demanding systems. The straight and right angled field attachable connectors, terminated by IDC method and feature a push to lock coupling mechanism ensuring a secure mating connection. Delivering speeds of 500 MHz for 10 Gbit Ethernet this range of RJ45 plugs are a must for the latest industry designs. All models are highly reliable and excellent quality.

Features & Benefits

Fully shielded IDC Connection
IP20 rated
Cat6a performance
Push to lock coupling
10 Gbit Ethernet

Applications

GPS Telematics
Mobile data
Railway data networks
Food and beverage production
High-speed video communication

Specifikationer
Attribute Value
Ethernet Connector Type RJ45 Connector
Gender Male
LAN Category Cat5e, Cat6a
Mounting Type Cable Mount
Number of Ways 8P8C
Connector Type RJ45 Field Attachable IDC Connector
Shield Type Shielded
Orientation Straight
IP Rating IP20, IP67
Length 13.8mm
Width 6.6mm
Depth 52.2mm
Series Number 130047
Contact Material Phosphor Bronze
Contact Plating Gold over Nickel
69 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) 1 Bag of 1
239,78 kr
(exkl. moms)
299,72 kr
(inkl. moms)
Påse(ar)
1 - 4
239,78 kr
5 - 9
228,20 kr
10 - 14
216,31 kr
15 - 19
209,49 kr
20 +
196,05 kr
