COMMSCOPE, SL110, Female Cat5e RJ45 Modular Jack

  • RS-artikelnummer 124-1154
  • Tillv. art.nr 2-1375191-2
  • Tillverkare / varumärke COMMSCOPE
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

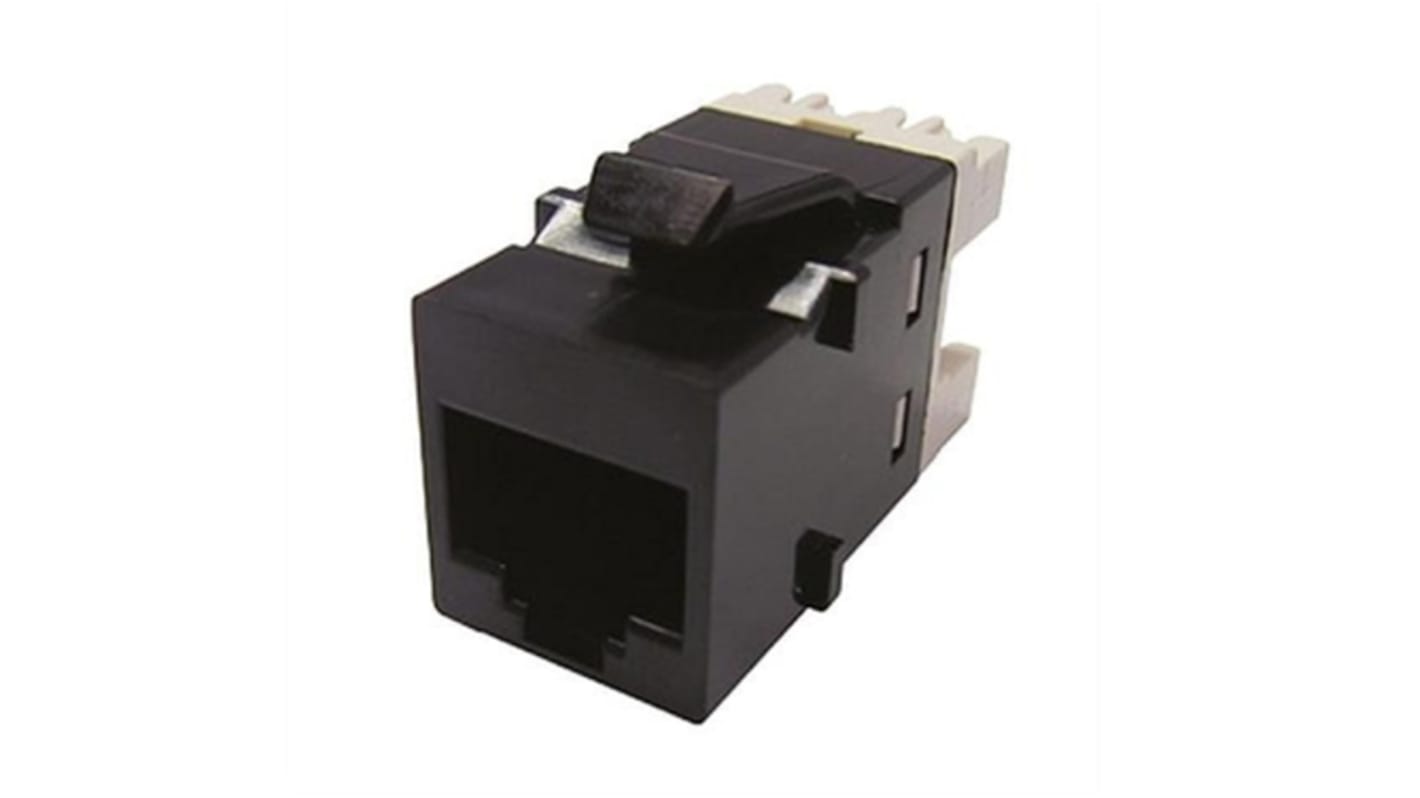

COMMSCOPE RJ45 Jack Connector

The COMMSCOPE SL110 series Cat5e female RJ45 connector is a panel-mount unshielded twisted pair eight conductors modular jack. This RJ45 jack comes with IDC 110 punch-down blocks and built-in strain relief. The Cat5e jacks have gold-plated beryllium copper contacts in a black polycarbonate housing. This RJ45 modular jack accepts both, solid 24AWG to 22AWG and stranded 26AWG to 24AWG cables.

Features and Benefits

Excellent quality
High reliability

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL94 V-0

Specifikationer
Attribute Value
Gender Female
Ethernet Connector Type RJ45 Connector
LAN Category Cat5e
Mounting Type Panel Mount
Number of Ways 8
Connector Type Jack
Shield Type UTP
Orientation Straight
Series SL110
Contact Material Beryllium Copper
Contact Plating Gold
45 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
167,82 kr
(exkl. moms)
209,78 kr
(inkl. moms)
Enheter
Per unit
1 - 9
167,82 kr
10 - 24
153,24 kr
25 - 49
139,69 kr
50 - 149
129,25 kr
150 +
120,25 kr
