STEGO Enclosure Heater, 230V ac, 150W Output, 150W Input, +200°C, 180mm x 60mm x 120mm
- RS-artikelnummer:
- 144-7576
- Tillv. art.nr:
- 02033.0-00
- Tillverkare / varumärke:
- STEGO
Tillfälligt slut i lager – restorder för leverans 2024-06-10
Lagt till varukorgen
Pris (ex. moms) Varje
2 536,07 kr
(exkl. moms)
3 170,09 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 2 536,07 kr |
- RS-artikelnummer:
- 144-7576
- Tillv. art.nr:
- 02033.0-00
- Tillverkare / varumärke:
- STEGO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
Stego Hazardous Area Compact Heaters, CREx 02 Series
Introducing the Compact convection heater of temperature classes T3, T4 and T5 for use in areas with explosion hazard for prevention of formation of condensation and temperature fluctuations. Also benefitting in protection against frost in control and switch cabinets, and in measuring equipment.
Features and Benefits
• For areas with explosion hazard
• Large convection surface
• Clip and screw flange fixing
• Ready-to-use with strain relief
• Maintenance free
• Temperature class T3 (200°C max) 50 W to 250 W
• Temperature class T4 (135°C max) 50 W to 200 W
• Temperature class T5 (100°C max) 50 W to 100 W
• Large convection surface
• Clip and screw flange fixing
• Ready-to-use with strain relief
• Maintenance free
• Temperature class T3 (200°C max) 50 W to 250 W
• Temperature class T4 (135°C max) 50 W to 200 W
• Temperature class T5 (100°C max) 50 W to 100 W

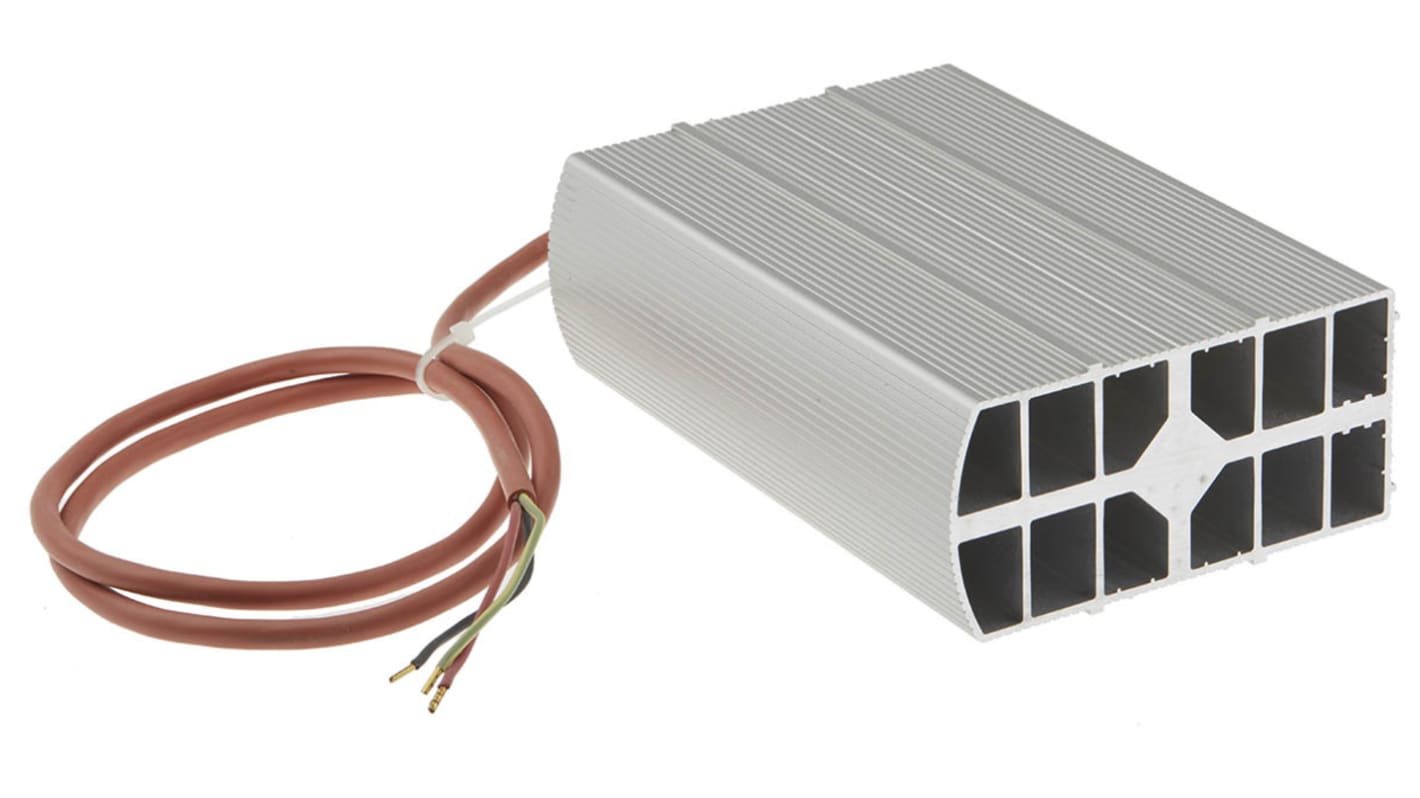

Stego Elektrotechnik Enclosure Heater
The Stego Elektrotechnik is a 150W enclosure heater belongs to CREx 020 series. This compact heater of temperature class T3 for use in areas with explosion hazard for prevention of formation of condensation and temperature fluctuations. It provides protection against frost in control and switch cabinets and in measuring equipment.
Features and Benefits
• Ambient temperature range between -60°C and 85°C
• Clip and screw flange fixing
• Compact in dimension 120 x 60 x 180mm
• For areas with explosion hazard
• Large convection surface
• Maintenance free
• Ready-to-use with strain relief
• Clip and screw flange fixing
• Compact in dimension 120 x 60 x 180mm
• For areas with explosion hazard
• Large convection surface
• Maintenance free
• Ready-to-use with strain relief
Applications
• Hazardous area
Certifications
• CE
• EAC approved
• EPS 16 ATEX 1 109 X
• Ex
• IEC
• IECEx
• IP66 rated
• EAC approved
• EPS 16 ATEX 1 109 X
• Ex
• IEC
• IECEx
• IP66 rated
Specifikationer
Attribute | Value |
|---|---|
| Output Power | 150W |
| Input Power Rating | 150W |
| Supply Voltage | 230V ac |
| Surface Temperature | +200°C |
| Depth | 120mm |
| Height | 180mm |
| Width | 60mm |
| Series | CREx 020 |
