- RS-artikelnummer:
- 103-336
- Tillv. art.nr:
- FLH250 17025010107
- Tillverkare / varumärke:
- Pfannenberg
Tillfälligt slut i lager – restorder för leverans 2024-06-27
Lagt till varukorgen
Pris (ex. moms) Varje
1 342,01 kr
(exkl. moms)
1 677,51 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 1 342,01 kr |
10 - 24 | 1 296,17 kr |
25 - 49 | 1 227,91 kr |
50 - 99 | 1 136,67 kr |
100 + | 1 022,56 kr |
- RS-artikelnummer:
- 103-336
- Tillv. art.nr:
- FLH250 17025010107
- Tillverkare / varumärke:
- Pfannenberg
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

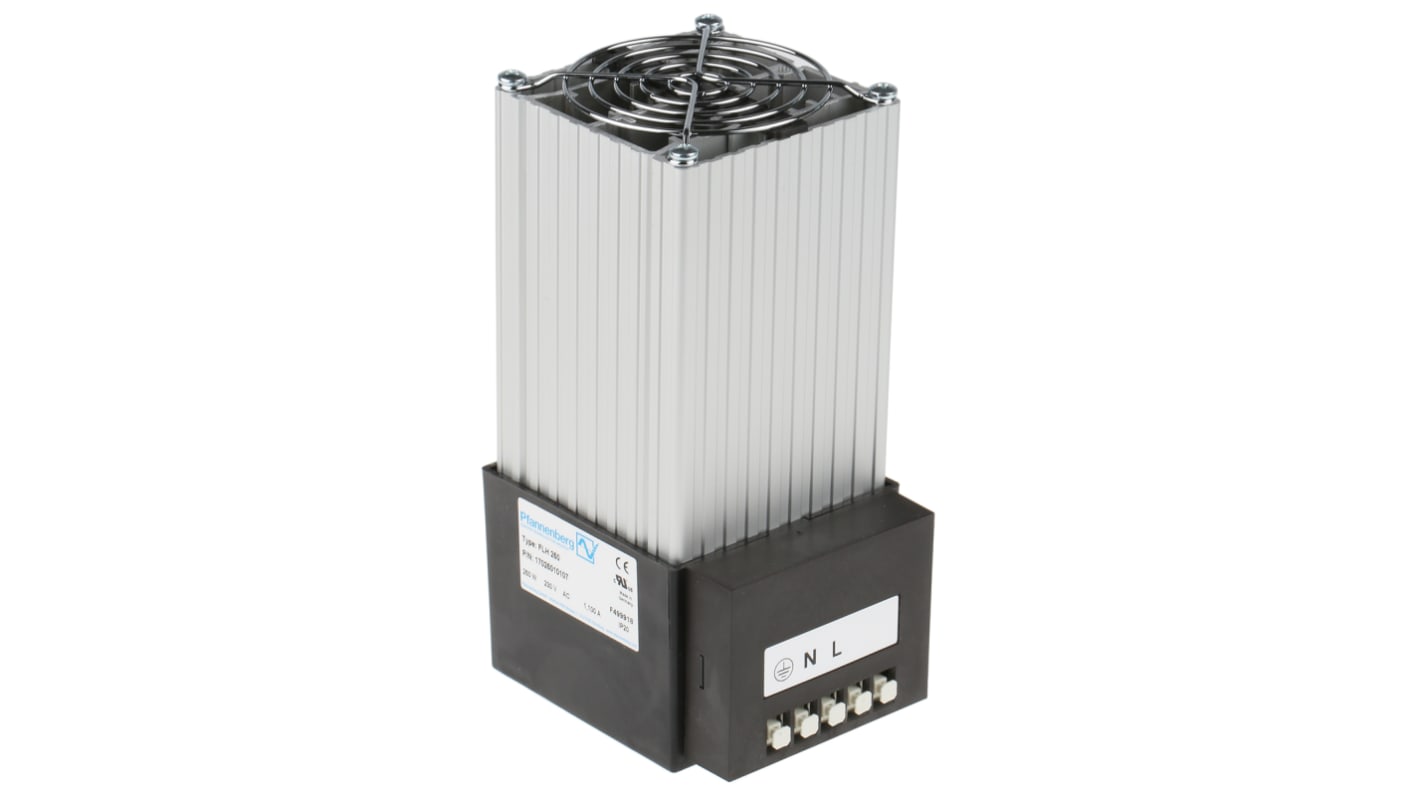

Fan Heater - Pfannenberg FLH 250
Plug-in terminal connection
Suitable for both 50Hz and 60Hz
Duty cycle 100%
Heating element is resistance type with temperature monitor
Fitting position is airflow vertical, exit at top
Airflow 50m3/h (50Hz), 61m3/h (60Hz)
Constructed from aluminium extrusion, clear anodised
Binding post connection capacity: single filament 2 x 0.5 - 2.5mm2; fine multi-filament (soldered, wire and sleeve, pin terminal) 2 x 0.5 - 1.5mm2
Snap-in mounting for 35mm DIN-rail in accordance with EN 50022
Operating temperature -20°C to +70°C
Storage temperature -40°C to +70°C
Protection rating IP44
Suitable for both 50Hz and 60Hz
Duty cycle 100%
Heating element is resistance type with temperature monitor
Fitting position is airflow vertical, exit at top
Airflow 50m3/h (50Hz), 61m3/h (60Hz)
Constructed from aluminium extrusion, clear anodised
Binding post connection capacity: single filament 2 x 0.5 - 2.5mm2; fine multi-filament (soldered, wire and sleeve, pin terminal) 2 x 0.5 - 1.5mm2
Snap-in mounting for 35mm DIN-rail in accordance with EN 50022
Operating temperature -20°C to +70°C
Storage temperature -40°C to +70°C
Protection rating IP44
Note
Guard (see designation +2) adds 3mm to height dimension quoted
Accessories available separately include thermostats FLZ510, FLZ520, FLZ530, hygrostat FLZ600
Accessories available separately include thermostats FLZ510, FLZ520, FLZ530, hygrostat FLZ600
Approvals
UL
Specifikationer
Attribute | Value |
---|---|
Output Power | 250W |
Air Flow | 50 m³/h, 61m³/h |
Supply Voltage | 230V ac |
Surface Temperature | 70°C |
Depth | 104mm |
Height | 183.5mm |
Width | 85mm |
