- RS-artikelnummer:
- 866-1552
- Tillv. art.nr:
- 73000195 M22-PVT-K12
- Tillverkare / varumärke:
- Eaton
22 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
576,65 kr
(exkl. moms)
720,81 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 576,65 kr |
10 - 14 | 553,67 kr |
15 + | 529,82 kr |
- RS-artikelnummer:
- 866-1552
- Tillv. art.nr:
- 73000195 M22-PVT-K12
- Tillverkare / varumärke:
- Eaton
Lagstiftning och ursprungsland
Produktdetaljer

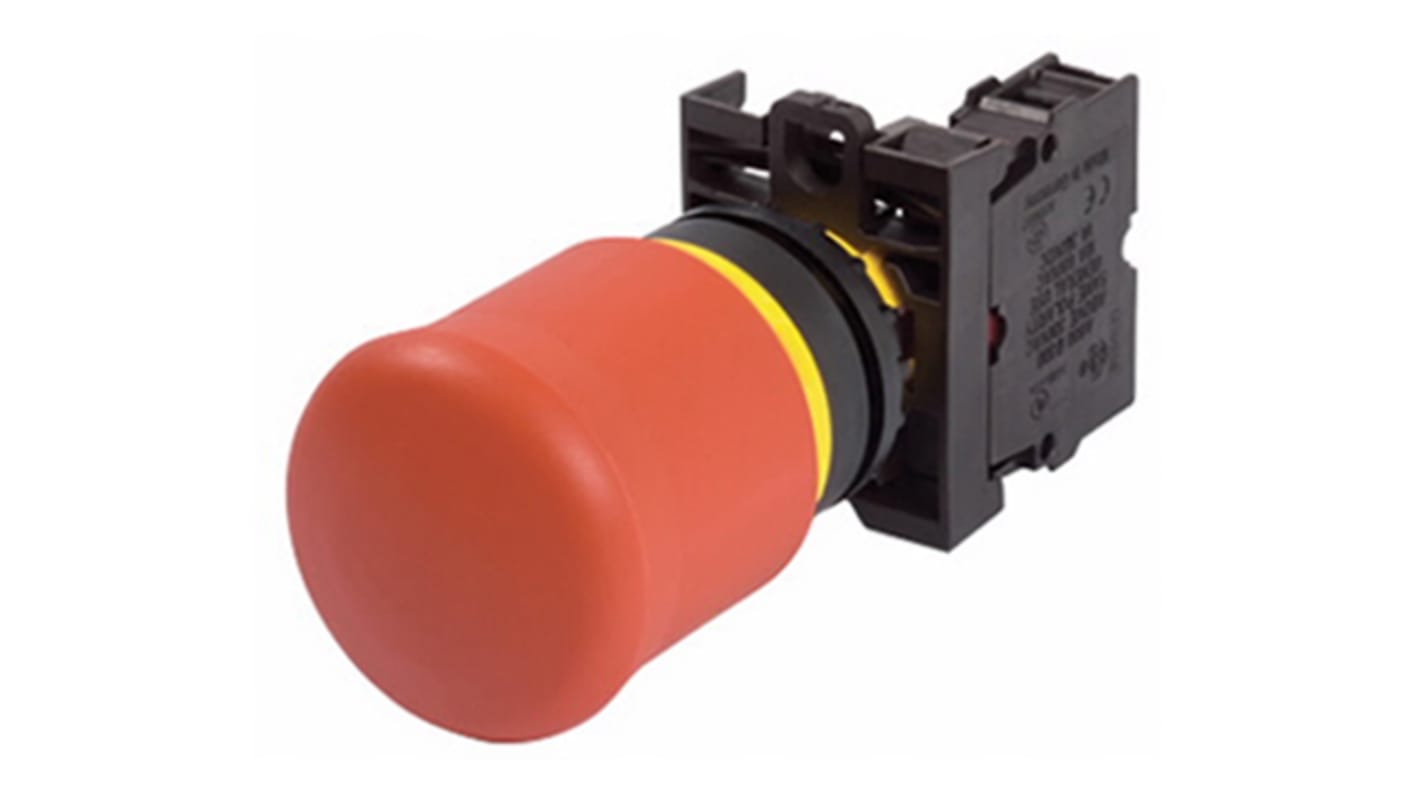

Eaton Emergency Stop Push Button, 81.6g Weight, Silver Bezel - RMQ-Titan Series - 73000195 M22-PVT-K12
Want to be sure you can put the brakes on your heavy machinery? Choose this emergency stop push button from Eaton to reduce risk and prevent injury. The turn-to-release function is designed to prevent accidental restarting of equipment after a stop, giving safety top priority. Thanks to a wide operating temperature range between -25°C and +70°C, you're assured the unit holds its own in harsh industrial environments. You'll find devices like this commonly used with potentially hazardous industrial equipment such as lathes and conveyor belts.
• Standard cutout diameter of 22.5mm means you can install it on a panels or enclosure in a snap
• IP69 rating indicates protection from high-pressure, high-temperature jets of water
• Mechanical lifespan of over 100,000 operations for a long service life
• IP69 rating indicates protection from high-pressure, high-temperature jets of water
• Mechanical lifespan of over 100,000 operations for a long service life
What does a 2NO/2NC configuration mean?
This configuration means the switch has two normally open and two normally closed contacts, which allows for more flexible control options in an electrical circuit.
What colour is this stop button?
It's red, making it easily identifiable as an emergency device in busy industrial settings.
Part of the Eaton E-Stop family
Note
Eaton formerly known as Moeller
Specifikationer
Attribute | Value |
---|---|
Mounting Type | Panel Mount |
Cutout Diameter | 22mm |
Contact Configuration | 1NO + 2NC |
Push Button Actuation | Pull Release |
Illuminated | No |
Series | M22 |
Colour | Red |
Push Button Shape | Round |
Voltage Rating | 24V |
Depth | 177.8mm |
Width | 127mm |
Height | 12.7mm |
Switch Operation | Maintained |
Push Button Material | Plastic |
Housing Colour | Black |
Bezel Material | Metal |
