- RS-artikelnummer:
- 721-6536
- Tillv. art.nr:
- AE20M-24
- Tillverkare / varumärke:
- Moflash
367 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
166,07 kr
(exkl. moms)
207,59 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 166,07 kr |
10 - 14 | 157,32 kr |
15 + | 152,39 kr |
- RS-artikelnummer:
- 721-6536
- Tillv. art.nr:
- AE20M-24
- Tillverkare / varumärke:
- Moflash
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

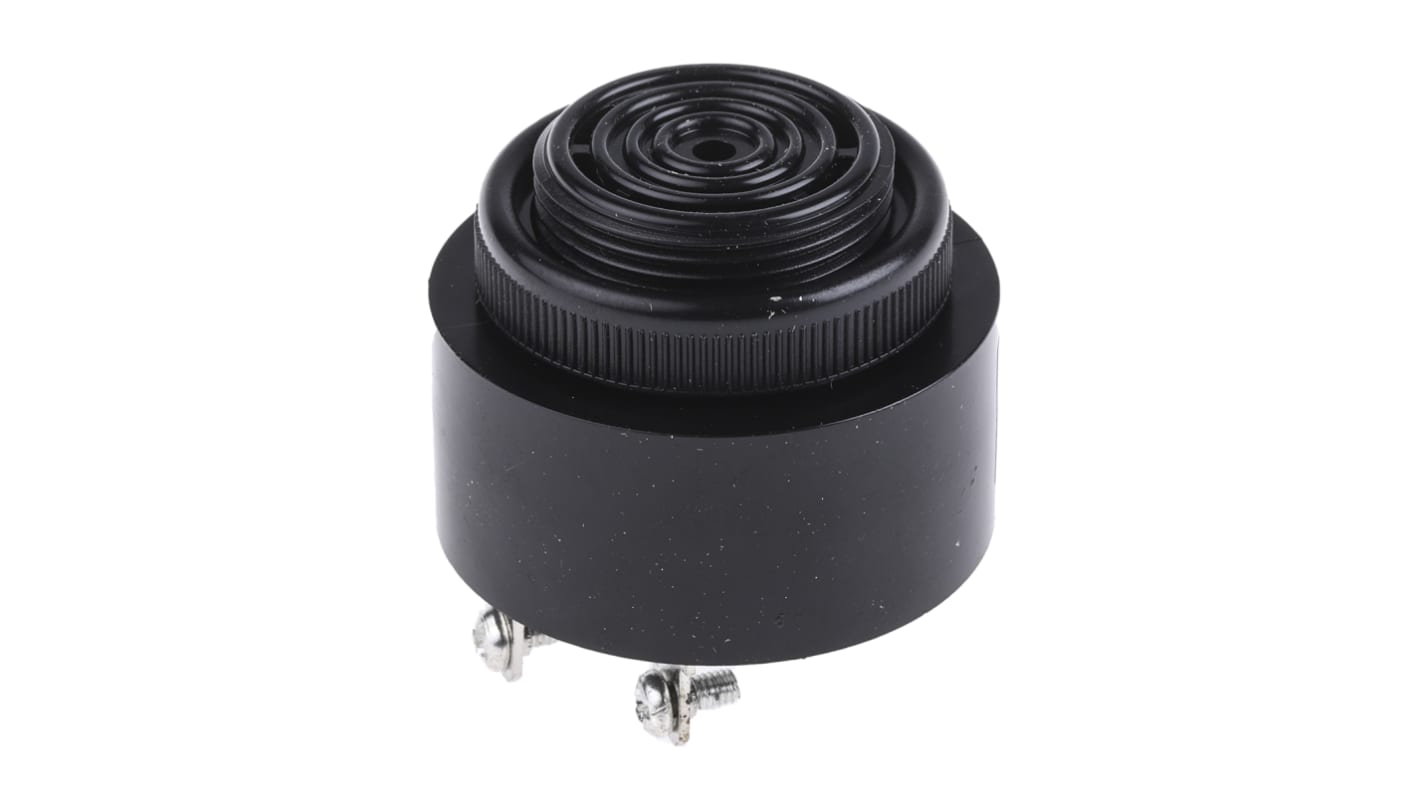

Moflash Buzzer, 85dB, 24 V DC - AE20M Series - AE20M-24
Looking for a compact, energy-efficient signalling device for your industrial applications? Choose this panel mount buzzer from Moflash. Its miniature design makes it a good fit for most panel setups, and its low current consumption rate of 25mA means it's an energy-saving choice. This buzzer has a single-stage alarm that can be set to a continuous or fast, pulsing tone. You can select between the two using a three-pin connection combination.
Features and Benefits
• Intensity of 85 decibels (dB) for a highly audible alarm sound, even in noisy places
• Wide operating temperature range of -20°C to +60°C for use in demanding environments
• Base made of ABS (acrylonitrile butadiene styrene) plastic for resistance to impact and corrosion
• IP55 (ingress protection) rating for resistance to dust and low-pressure water jets from any direction
• Wide operating temperature range of -20°C to +60°C for use in demanding environments
• Base made of ABS (acrylonitrile butadiene styrene) plastic for resistance to impact and corrosion
• IP55 (ingress protection) rating for resistance to dust and low-pressure water jets from any direction
Applications
• Process and packaging plants
• Automation industry
• Construction sites
• Fire truck warning systems
• Automation industry
• Construction sites
• Fire truck warning systems
How do I mount this buzzer?
You can mount this buzzer directly to a machine panel. It features a locking pin for a secure attachment that won't come loose, even in the event of heavy vibration.
Specifikationer
Attribute | Value |
---|---|
Supply Voltage | 24 V |
IP Rating | IP55 |
Decibels at 1 Metre | 95dB |
Current Type | DC |
Number Of Tones | 1 |
Housing Colour | Black |
Mounting Style | Panel Mount |
Diameter | 43 mm |
Application Type | Buzzer |
Maximum Decibel | 95dB |
Series | AE20M |
Housing Material | ABS Plastic |
Maximum Temperature | +60°C |
Tone Type | Continuous |
Standards Met | CE Certified UKCA |
Minimum Temperature | -20°C |
- RS-artikelnummer:
- 721-6536
- Tillv. art.nr:
- AE20M-24
- Tillverkare / varumärke:
- Moflash
