    Ewellix Makers in Motion Miniature Electric Linear Actuator -, 24V dc, 2300N, 305mm

    RS-artikelnummer:
    885-5312
    Tillv. art.nr:
    CAHB-21-B1N-305521-AAA000-000 EU
    Tillverkare / varumärke:
    Ewellix Makers in Motion
    Ewellix Makers in Motion
    Se alla Electric Linear Actuators
    14 I lager för leverans inom 1 arbetsdagar
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    5 948,96 kr

    (exkl. moms)

    7 436,20 kr

    (inkl. moms)

    EnheterPer unit
    1 +5 948,96 kr
    RS-artikelnummer:
    885-5312
    Tillv. art.nr:
    CAHB-21-B1N-305521-AAA000-000 EU
    Tillverkare / varumärke:
    Ewellix Makers in Motion
    COO (Country of Origin):
    CN

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    CN

    Produktdetaljer

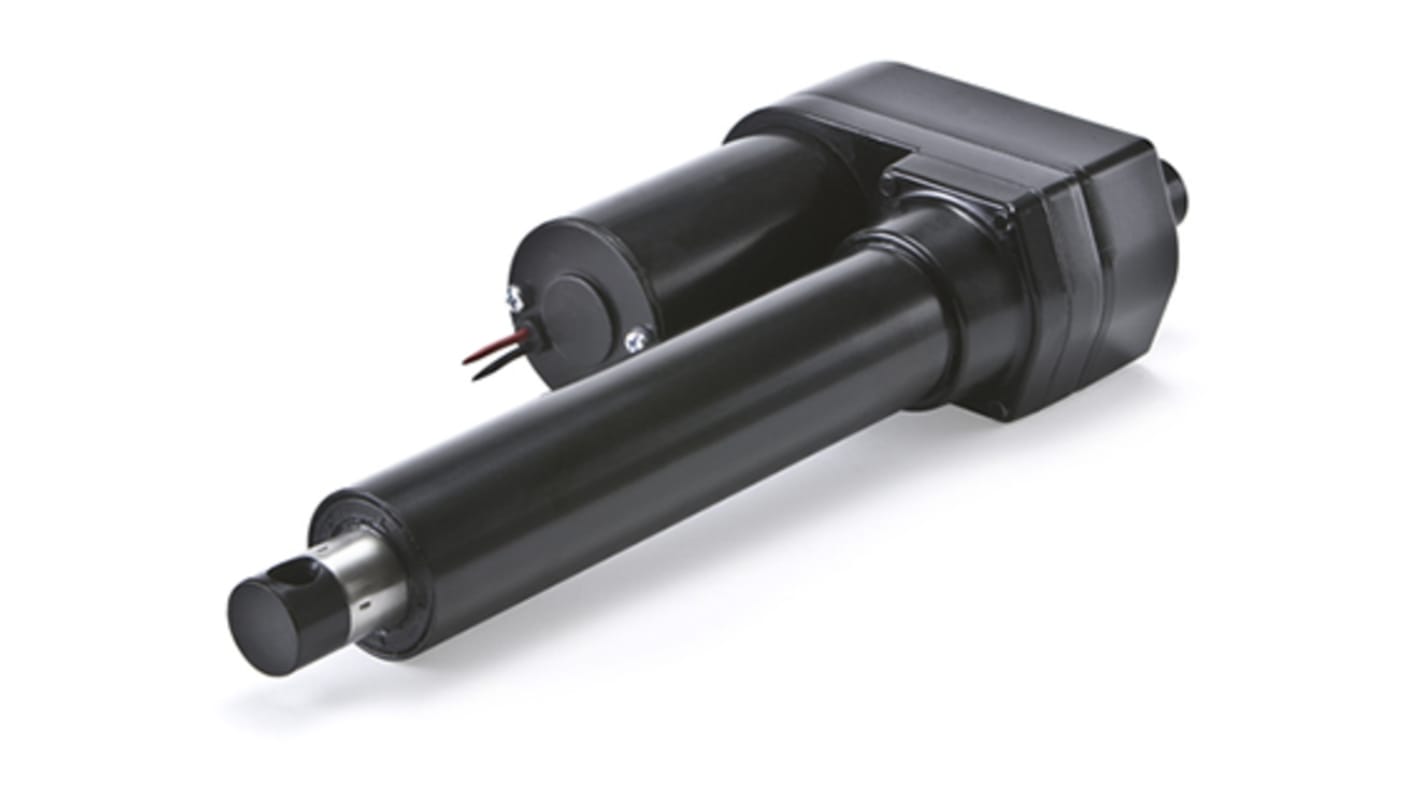

    SKF CAHB-21 Series Linear Actuator


    The SKF CAHB-21 Series Linear Actuator has been specially designed to operate in temperatures from -40 to 85°C at a 25% duty cycle. Featuring robust metal gears and corrosion resistant housing, these actuators are ideal for medium and heavy load applications. They also have the benefit of being virtually maintenance free.


    Features and Benefits


    • High efficiency ball screw
    • Extension tube (Stainless steel)
    • Protection tube (Steel)
    • Enhanced corrosion resistance
    • Mechanical overload protection (Clutch)
    • Lubricated for service life
    • Robust, designed for tough environment
    • No back driving
    • Certified (CE: EN 55011)


    Product Application Information


    Typical applications include the medical industry, factory automation, food and beverage and renewable energy.



    SKF Easy 3, CARE 33, MATRIX, CASM and CAHB Actuators


    Compact design
    Overload protection
    Various stroke lengths and movement of loads up to 50kg
    Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users
    Can be operated without limit switches


    Specifikationer

    AttributeValue
    Actuator TypeMiniature
    SeriesCAHB–21
    Maximum Load2300N
    Maximum Speed No Load45 → 65mm/s
    Maximum Stroke Length305mm
    Input Voltage24V dc
