Ewellix Makers in Motion Micro Linear Actuator, 300mm, 24V dc, 2000N, 9mm/s
- RS-artikelnummer:
- 178-6823
- Tillv. art.nr:
- MAX10-B300395AC52M0-000
- Tillverkare / varumärke:
- Ewellix Makers in Motion
Se alla Electric Linear Actuators
Tillfälligt slut i lager – restorder för leverans 2023-11-16
Pris (ex. moms) Each
5 749,39 kr
(exkl. moms)
7 186,74 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 5 749,39 kr |
- RS-artikelnummer:
- 178-6823
- Tillv. art.nr:
- MAX10-B300395AC52M0-000
- Tillverkare / varumärke:
- Ewellix Makers in Motion
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CH
Produktdetaljer

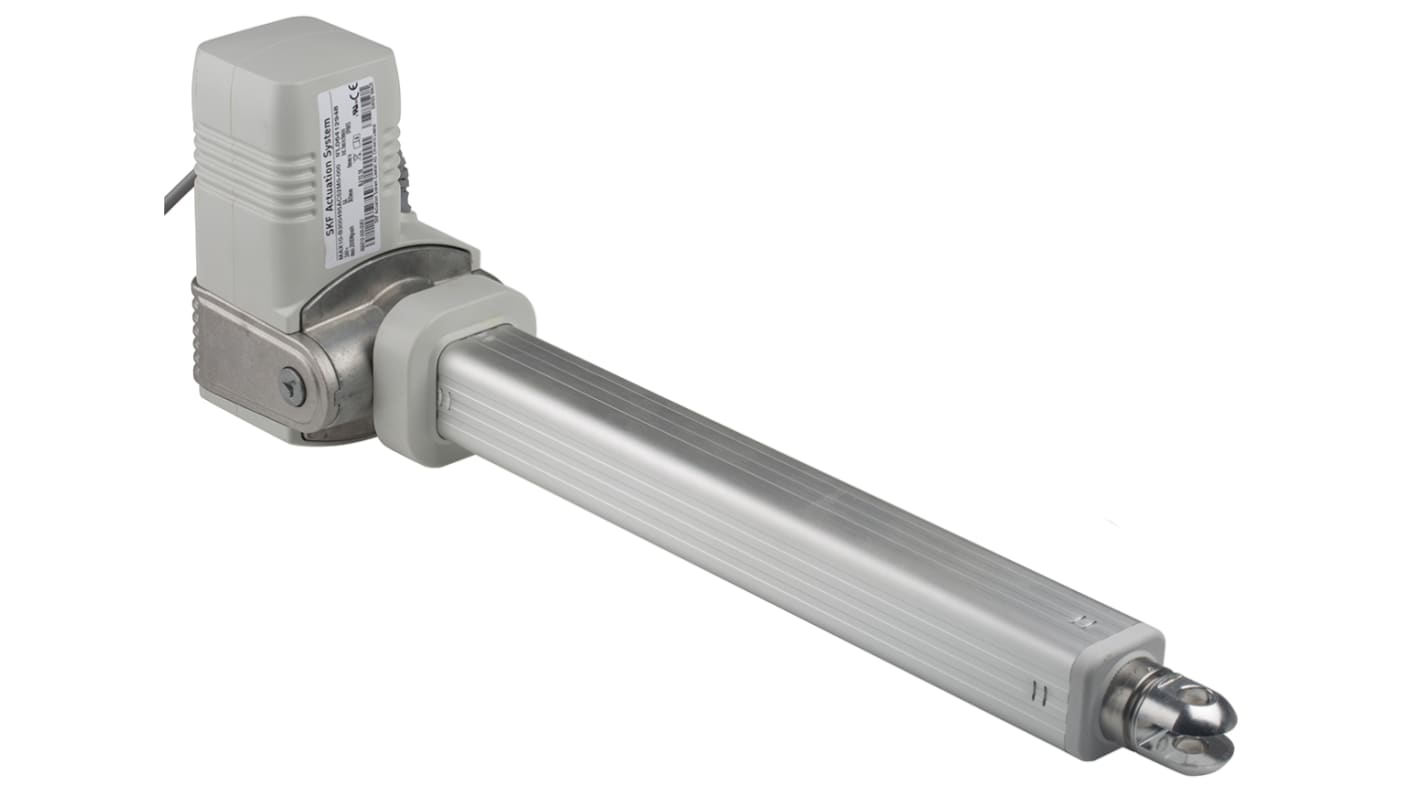

SKF Electric Linear Actuator
The SKF linear actuator is a compact designed electric actuator from the MAX10 series. It has a control unit operating switch and accessories. This actuator has a 120W motor powered with synchronous motor technology. The speed of the motor is 9mm/s. It requires 24VDC input voltage.
Features and Benefits
• 300mm stroke length
• Back up nut as standard
• Can handle maximum load up to 2000N
• Low noise level
• Back up nut as standard
• Can handle maximum load up to 2000N
• Low noise level
Applications
• Automation applications
• Industrial applications
• IT application
• Industrial applications
• IT application
Specifikationer
| Attribute | Value |
| Actuator Type | Micro Linear Actuator |
| Maximum Stroke Length | 300mm |
| Maximum Load | 2000N |
| Input Voltage | 24V dc |
| Series | MAX10 |
| Maximum Speed No Load | 9mm/s |
| Motor Technology | Synchronous Motor |
