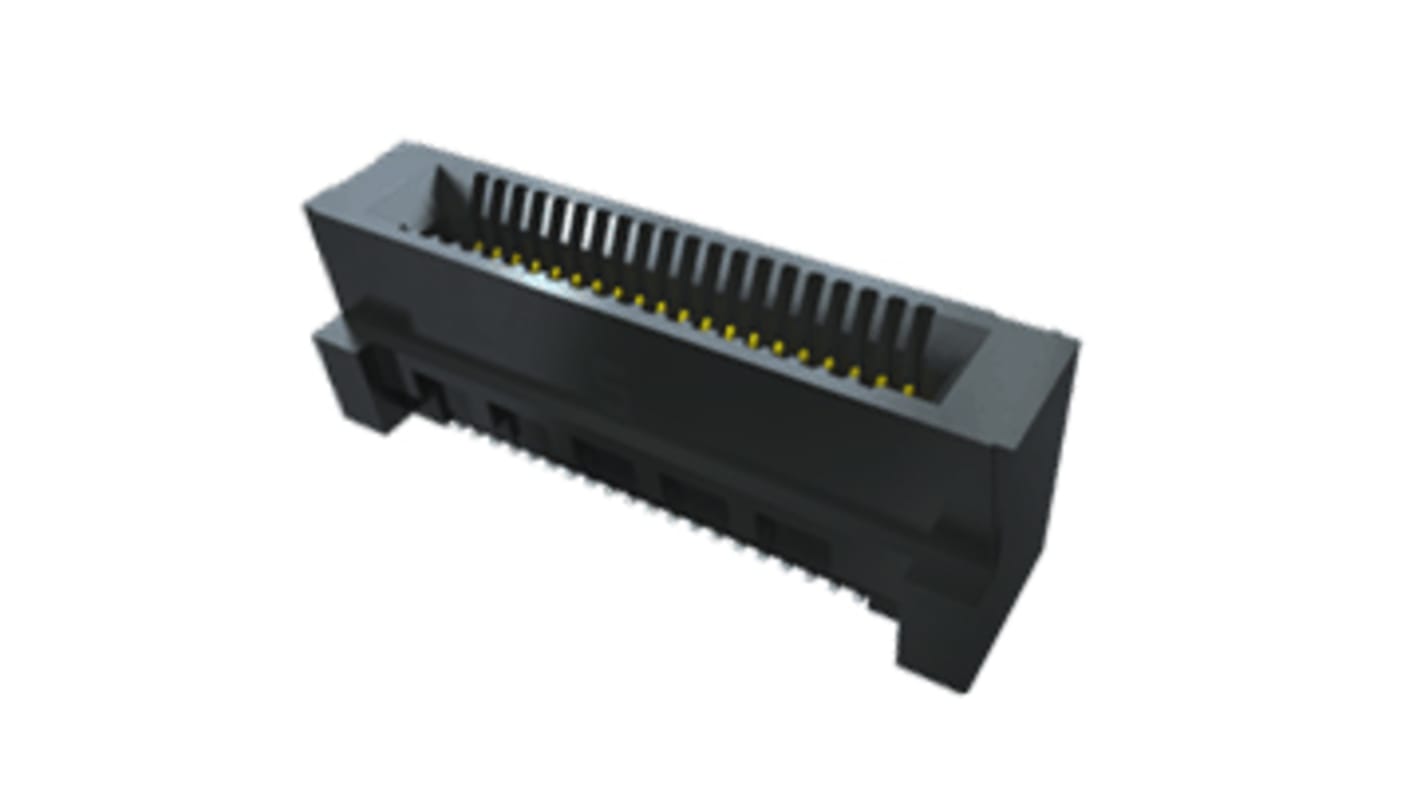

Samtec HSEC8-PE Series Vertical Female Edge Connector, Surface Mount, 80-Contacts, 0.8mm Pitch, 2-Row, Solder
- RS-artikelnummer:
- 159-2499
- Tillv. art.nr:
- HSEC8-140-01-S-DV-A-K
- Tillverkare / varumärke:
- Samtec
Tillfälligt slut i lager – restorder för leverans 2024-05-15
Lagt till varukorgen
Pris (ex. moms) Varje
82,38 kr
(exkl. moms)
102,98 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 82,38 kr |
| 10 - 49 | 78,99 kr |
| 50 - 99 | 69,03 kr |
| 100 - 499 | 65,75 kr |
| 500 + | 55,79 kr |
- RS-artikelnummer:
- 159-2499
- Tillv. art.nr:
- HSEC8-140-01-S-DV-A-K
- Tillverkare / varumärke:
- Samtec
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MY
Produktdetaljer
0.80 mm Edge Rate® High-Speed Edge Card Connector, Vertical
Rugged Edge Rate® contact
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available (HSEC8-PE)
Optional board locks and cable latching features
Optional weld tab for mechanical strength
Samtec 28+ Gbps Solution
Extended Life Product™ (E.L.P.™)
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available (HSEC8-PE)
Optional board locks and cable latching features
Optional weld tab for mechanical strength
Samtec 28+ Gbps Solution
Extended Life Product™ (E.L.P.™)
Specifikationer
Attribute | Value |
|---|---|
| Body Orientation | Vertical |
| Gender | Female |
| Number of Contacts | 80 |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper |
| Housing Material | Liquid Crystal Polymer |
| Series | HSEC8-PE |
| Length | 27.8mm |
| Minimum Operating Temperature | -55°C |
| Width | 7mm |
| Card Type | Card Edge |
| Maximum Operating Temperature | +125°C |
| Depth | 7.8mm |
