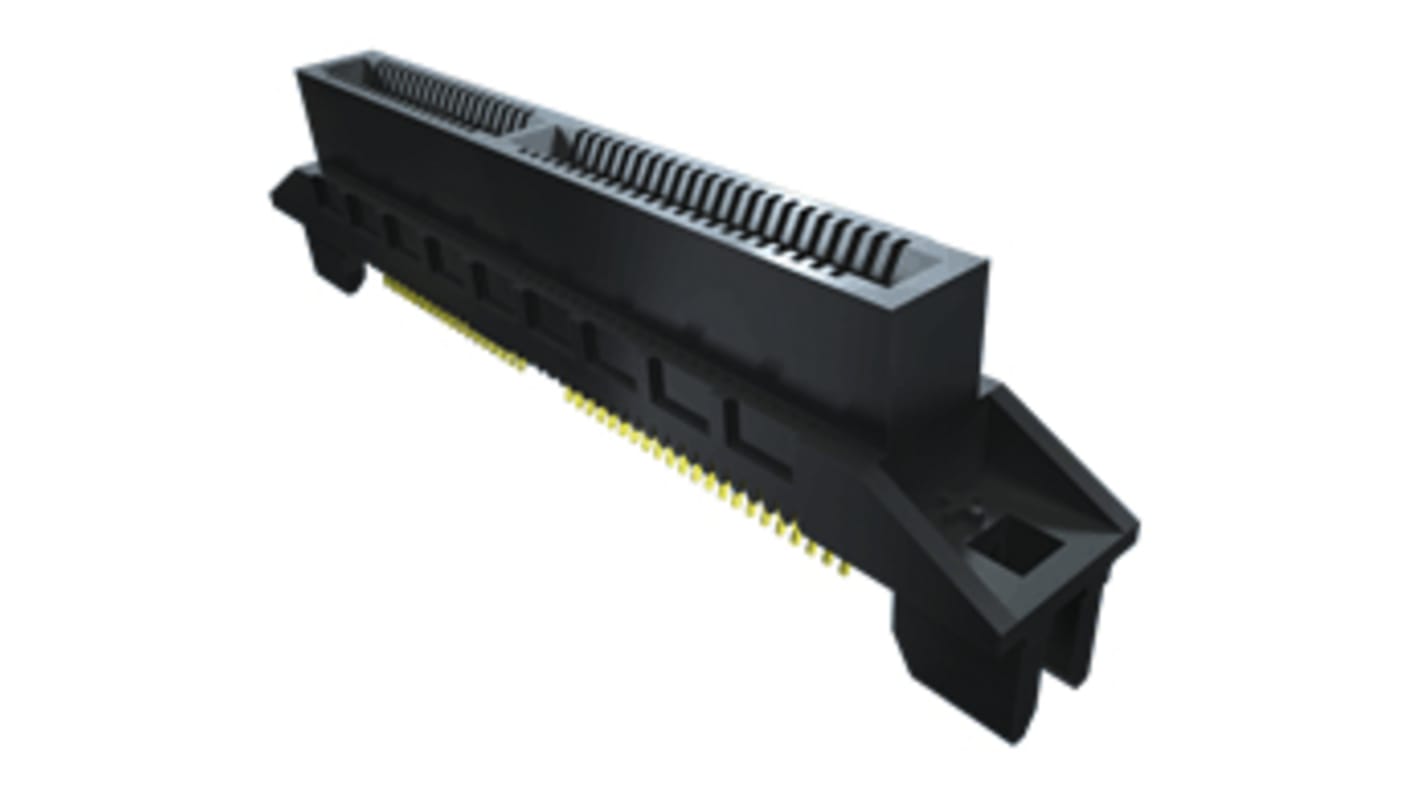

Samtec MEC8-EM Series Female Edge Connector, Edge Mount, 20-Contacts, 0.8mm Pitch, 2-Row, Solder Termination
- RS-artikelnummer:
- 158-7572
- Tillv. art.nr:
- MEC8-110-02-L-D-EM2
- Tillverkare / varumärke:
- Samtec
Tillfälligt slut i lager – restorder för leverans 2024-05-14
Lagt till varukorgen
Pris (ex. moms) Varje
70,67 kr
(exkl. moms)
88,34 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 70,67 kr |
| 10 - 49 | 67,61 kr |
| 50 - 99 | 58,64 kr |
| 100 - 499 | 55,68 kr |
| 500 + | 46,93 kr |
- RS-artikelnummer:
- 158-7572
- Tillv. art.nr:
- MEC8-110-02-L-D-EM2
- Tillverkare / varumärke:
- Samtec
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
0.80 mm Mini Edge Card Connector, Edge Mount
0.80 mm (.0315") pitch
Accepts .062" (1.60 mm) thick cards
Double row design up to 140 pins
Accepts .062" (1.60 mm) thick cards
Double row design up to 140 pins
Specifikationer
Attribute | Value |
|---|---|
| Body Orientation | Straight |
| Gender | Female |
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Mounting Type | Edge Mount |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating | 2.2A |
| Voltage Rating | 265 V ac |
| Housing Material | Liquid Crystal Polymer |
| Series | MEC8-EM |
| Maximum Operating Temperature | +125°C |
| Width | 7mm |
| Length | 86mm |
| Card Type | Card Edge |
| Depth | 8.5mm |
| Minimum Operating Temperature | -55°C |
