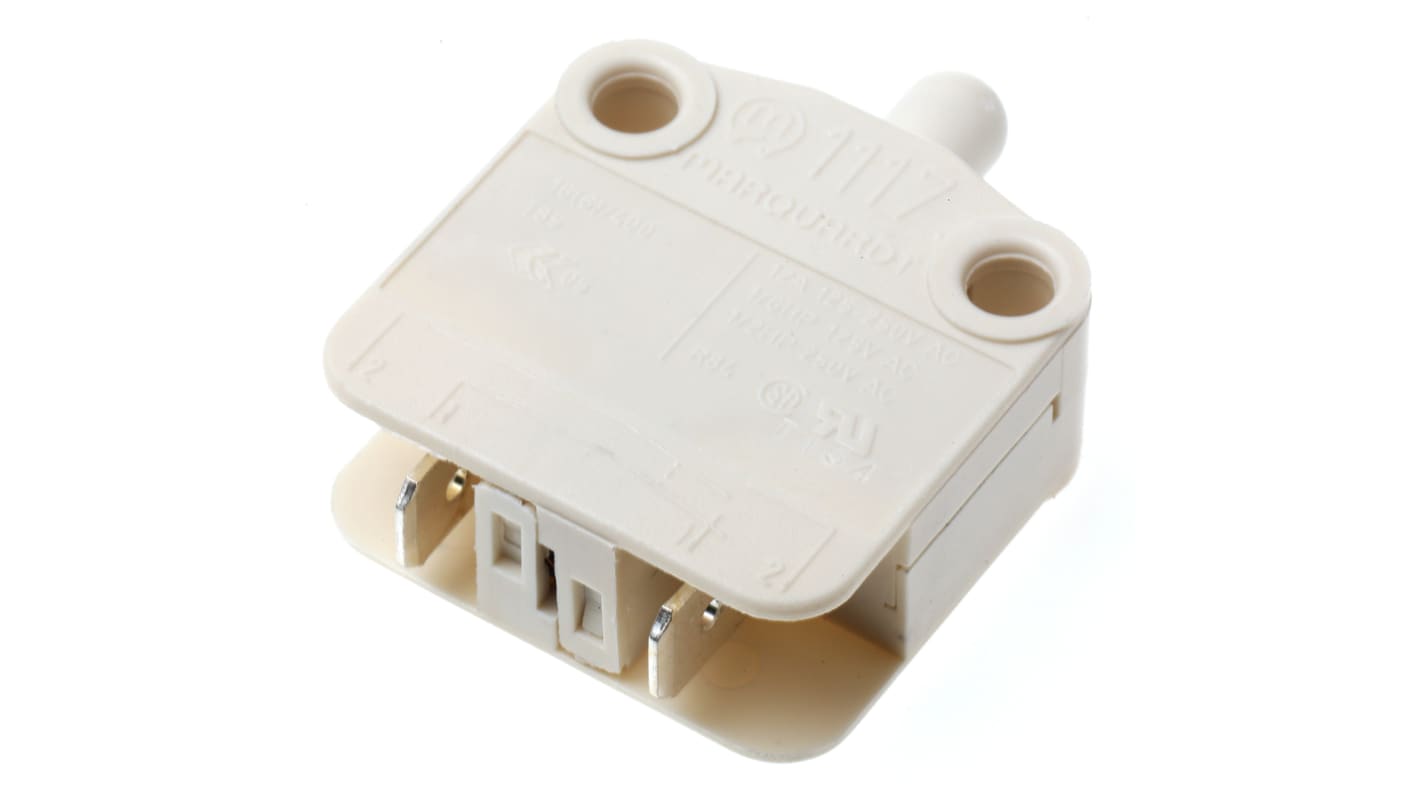

Marquardt Door Micro Switch, Plunger, SPST 16 A @ 250 V ac IP40, -40 → +85°C

RS-artikelnummer:: 575-535
Tillv. art.nr:: 1117.0206
Tillverkare / varumärke:: Marquardt

Marquardt Door Micro Switch, Plunger, SPST 16 A @ 250 V ac IP40, -40 → +85°C

219 I lager för avsändande samma dag

880 Inom 1 arbetsdag(ar) (UK lager)

Lagt till varukorgen

Pris (ex. moms) Varje

60,94 kr

(exkl. moms)

76,18 kr

(inkl. moms)

Enheter	Per unit
1 - 9	60,94 kr
10 - 49	57,87 kr
50 - 99	54,26 kr
100 +	50,00 kr

RS-artikelnummer:: 575-535
Tillv. art.nr:: 1117.0206
Tillverkare / varumärke:: Marquardt

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: TN

Produktdetaljer

Marquardt Push Button Switches - 1115 & 1117 Series

The Marquardt 1115 Series and 1117 Series are single pole snap action switches with high switching capabilities of up to 16A. Actuators on both the 1115 Series and 1117 Series snap action switches are able to operate in most directions making them ideal for use in door opening/closing applications. These Marquardt snap action switches are offered with various contact configurations each with termination being made via the 6.3mm Faston or Quick Connect style terminals.

UL 94 V-0 flammability
Mechanical life 100,000 operations
Suitable for use in Class II appliances

Approvals

UL; CSA; ENEC

Specifikationer

Attribute	Value
Actuator Type	Plunger
Contact Configuration	SPST
Contact Current Rating	16 A @ 250 V ac
Terminal Type	Tab
IP Rating	IP40
Contact Material	Silver
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Operating Temperature Range	-40 → +85°C
