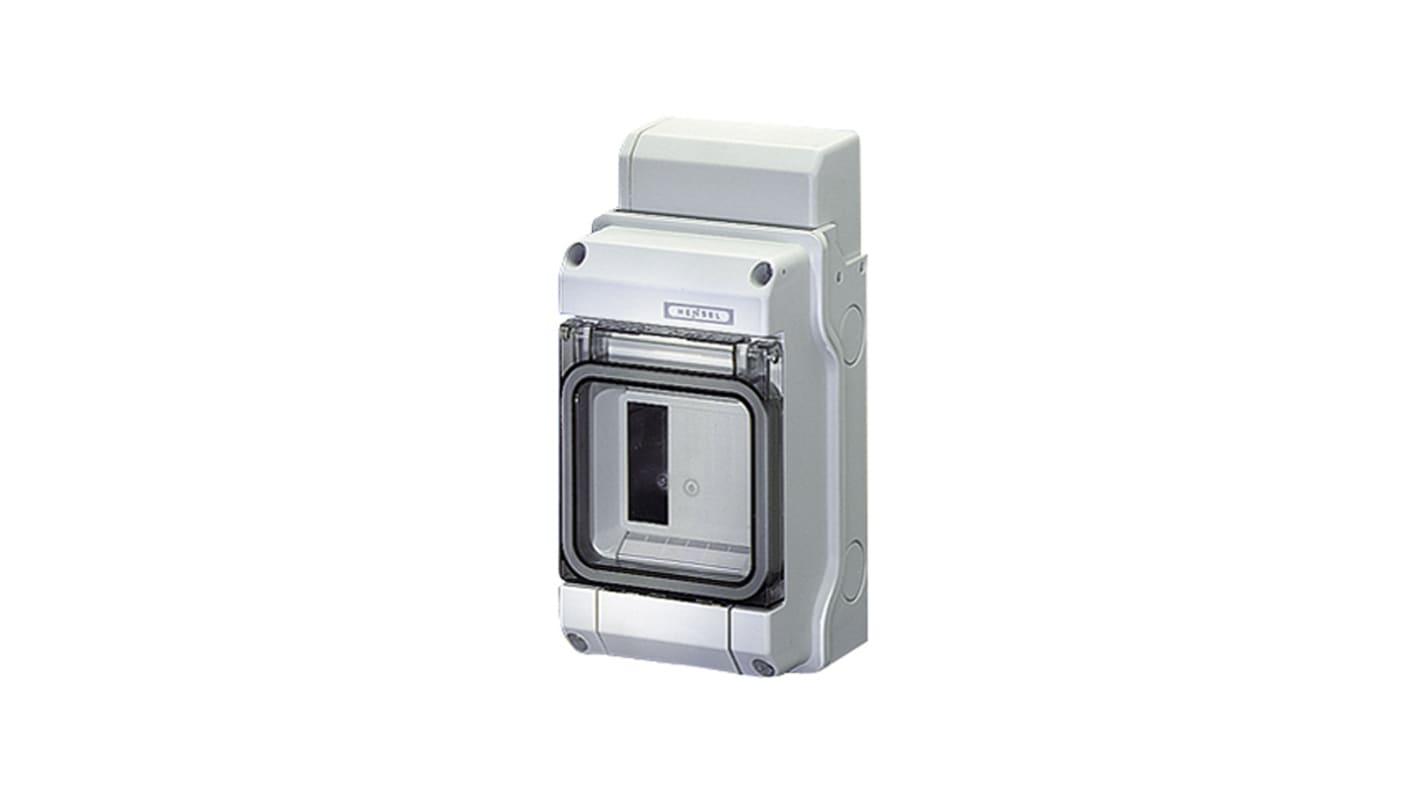

HENSEL 1, 3 Phase Distribution Board, 3 Way, 63 A
- RS-artikelnummer:
- 183-2854
- Tillv. art.nr:
- KV7103
- Tillverkare / varumärke:
- HENSEL
3 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
640,65 kr
(exkl. moms)
800,81 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 640,65 kr |
- RS-artikelnummer:
- 183-2854
- Tillv. art.nr:
- KV7103
- Tillverkare / varumärke:
- HENSEL
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
3 modules: 1 x 3 x 18 mm
1-row
Knockouts: top and bottom walls 2x m20 each
Per pe/n number x cross section 1 x 25 mm², 4 x 4 mm² cu, fixconnect® terminal technology, for terminal technology refer to technical data
For the installation of din rail equipment, top hat profile 35 mm
With transparent lid, sealable
Locking device for hinged lid and sealing facility see accessories
With cable entry cover
Protective cover can be cut out
Colour: grey, ral 7035
1-row
Knockouts: top and bottom walls 2x m20 each
Per pe/n number x cross section 1 x 25 mm², 4 x 4 mm² cu, fixconnect® terminal technology, for terminal technology refer to technical data
For the installation of din rail equipment, top hat profile 35 mm
With transparent lid, sealable
Locking device for hinged lid and sealing facility see accessories
With cable entry cover
Protective cover can be cut out
Colour: grey, ral 7035
Specifikationer
Attribute | Value |
|---|---|
| Number of Outgoing Ways | 3 |
| Electrical Phase | 1, 3 |
| Maximum Current | 63 A |
| Lockable | Yes |
| Series | KV |
