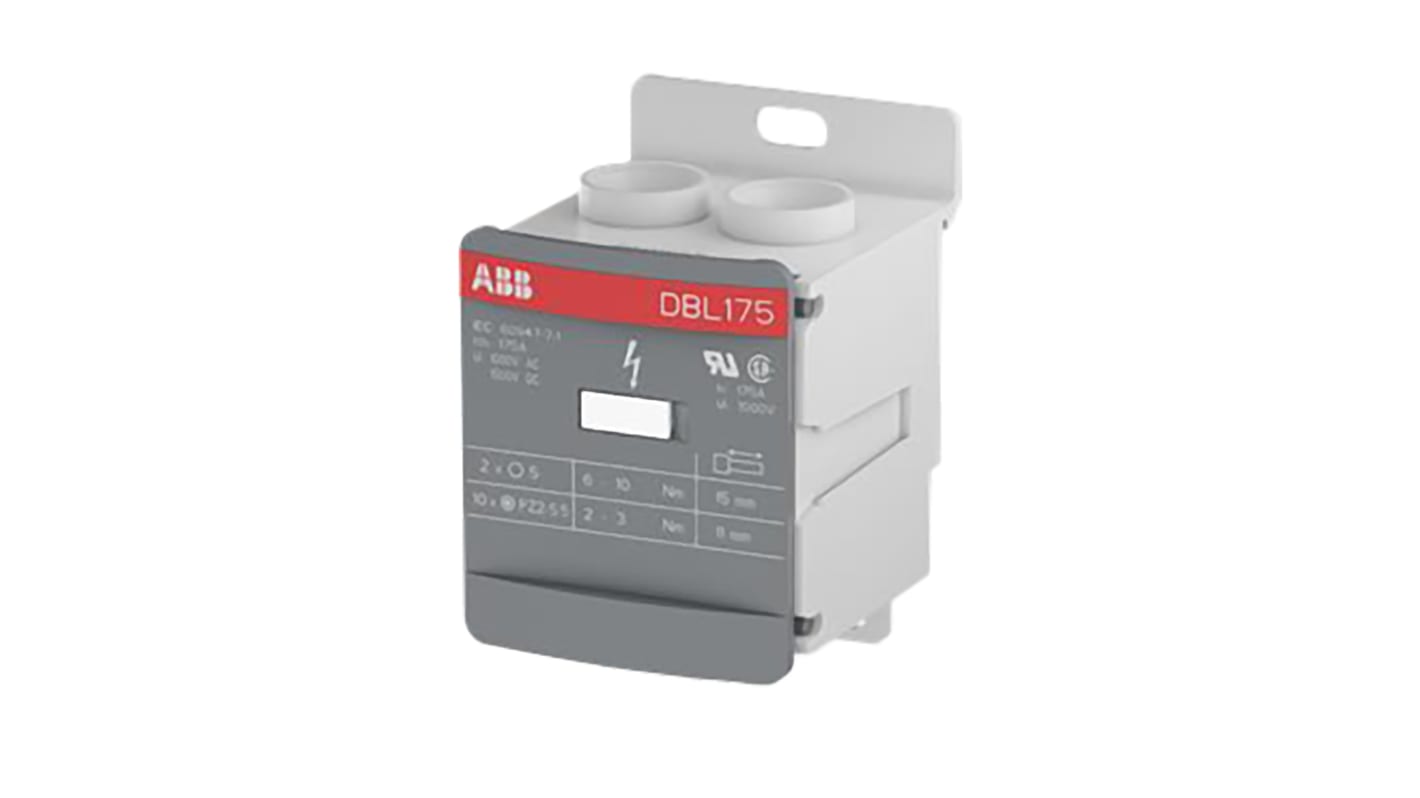

Entrelec Distribution Block, 12 Way, 10 → 70 (End 1) mm², 2.5 → 16 (End 2) mm², 175A, 1 kV ac, 1.5 kV dc,
- RS-artikelnummer:
- 100-3922
- Tillv. art.nr:
- 1SNL317510R0000
- Tillverkare / varumärke:
- Entrelec
19 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
508,82 kr
(exkl. moms)
636,02 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 508,82 kr |
- RS-artikelnummer:
- 100-3922
- Tillv. art.nr:
- 1SNL317510R0000
- Tillverkare / varumärke:
- Entrelec
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
DBL Series Distribution Terminal Blocks
ABB DBL modular distribution terminal blocks for installation on modular blocks. Either plate or DIN rail mounted.
DBL Series
Specifikationer
Attribute | Value |
|---|---|
| Number of Ways | 12 |
| Termination Method | Screw Down |
| Wire Size | 14 → 6 (End 2) AWG, 6 → 2/0 (End 1) AWG |
| Housing Material | Polyamide |
| IP Rating | IP10 |
| Current Rating | 175A |
| Voltage Rating | 1 kV ac, 1.5 kV dc |
| Cable CSA | 10 → 70 (End 1) mm², 2.5 → 16 (End 2) mm² |
| Length | 46.2mm |
| Width | 52.3mm |
| Height | 72.5mm |
| Colour | Grey |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -55°C |
