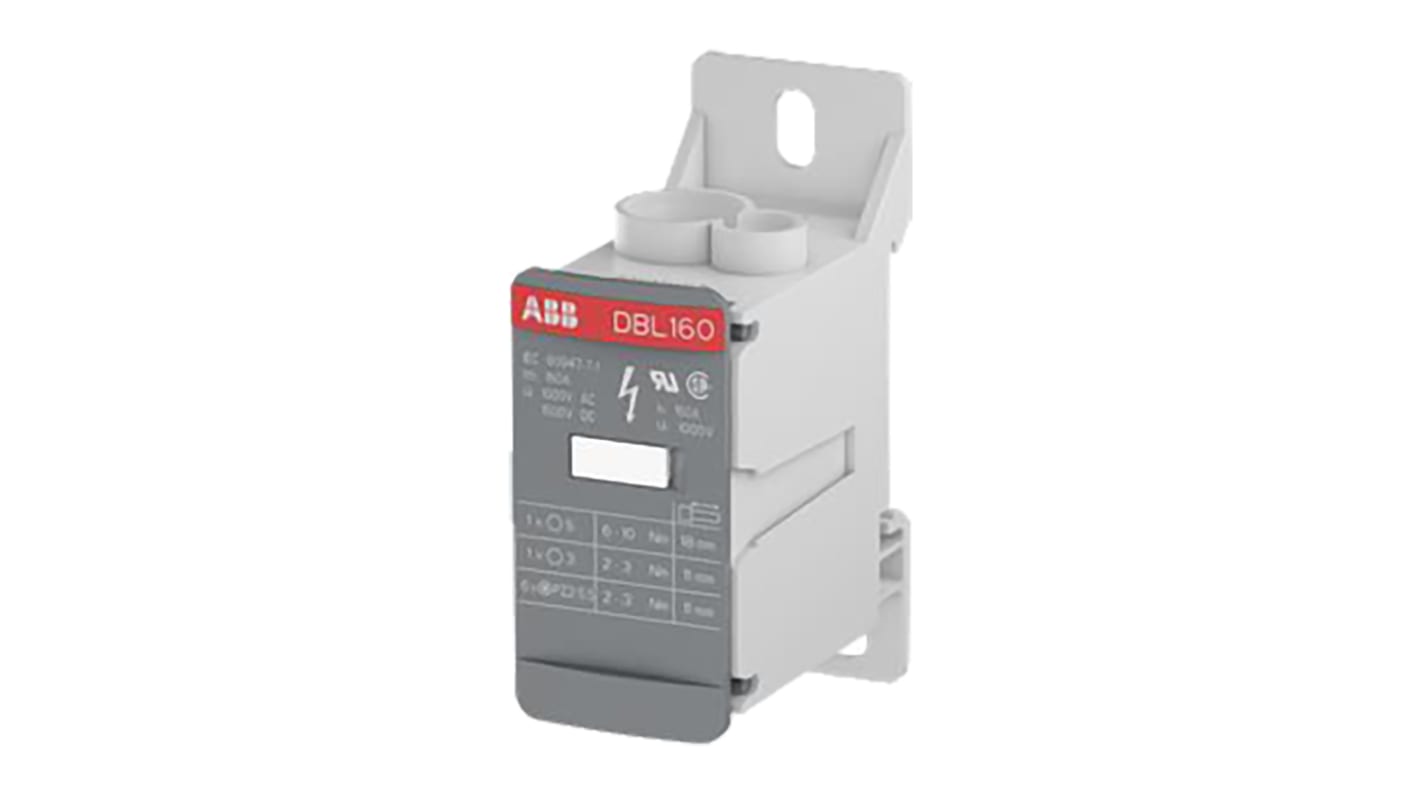

Entrelec Distribution Block, 10 → 70 (End 1) mm², 2.5 → 16 (End 2) mm², 6 → 16 (End 1) mm²

  • RS-artikelnummer 100-3921
  • Tillv. art.nr 1SNL316010R0000
  • Tillverkare / varumärke Entrelec
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IN
Produktdetaljer

DBL Series Distribution Terminal Blocks

ABB DBL modular distribution terminal blocks for installation on modular blocks. Either plate or DIN rail mounted.

DBL Series

Specifikationer
Attribute Value
Number of Ways 8
Termination Method Screw Down
Wire Size 6 → 2/0 (End 1) AWG, 10 → 6 (End 1) AWG, 14 → 6 (End 2) AWG
Housing Material Polyamide
IP Rating IP10
Current Rating 160A
Voltage Rating 1 kV ac, 1.5 kV dc
Cable CSA 2.5 → 16 (End 2) mm², 6 → 16 (End 1) mm², 10 → 70 (End 1) mm²
Length 28.2mm
Width 50.7mm
Height 75mm
Colour Grey
Maximum Operating Temperature +110°C
Minimum Operating Temperature -55°C
34 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
245,67 kr
(exkl. moms)
307,09 kr
(inkl. moms)
Enheter
Per unit
1 +
245,67 kr
