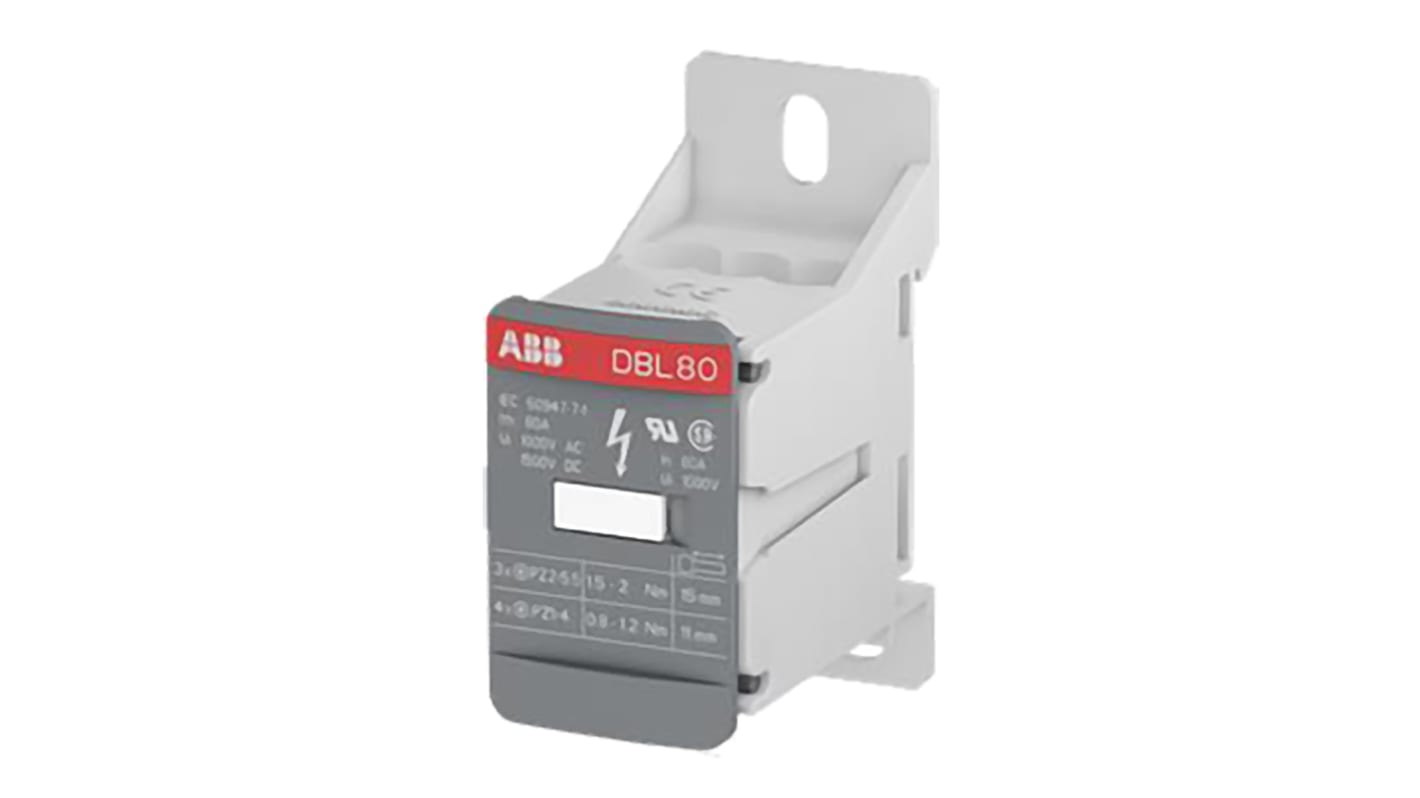

Entrelec Distribution Block, 2.5 → 16 (End 1) mm², 2.5 → 16 (End 2) mm², 7 Way, 80A, 1 kV ac, 1.5 kV dc

  • RS-artikelnummer 100-3919
  • Tillv. art.nr 1SNL308010R0000
  • Tillverkare / varumärke Entrelec
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IN
Produktdetaljer

DBL Series Distribution Terminal Blocks

ABB DBL modular distribution terminal blocks for installation on modular blocks. Either plate or DIN rail mounted.

DBL Series

Specifikationer
Attribute Value
Number of Ways 7
Termination Method Screw Down
Wire Size 14 → 10 (End 2) AWG, 14 → 4 (End 1) AWG
Housing Material Polyamide
IP Rating IP20
Current Rating 80A
Voltage Rating 1 kV ac, 1.5 kV dc
Cable CSA 2.5 → 16 (End 1) mm², 2.5 → 16 (End 2) mm²
Length 28.4mm
Width 50.2mm
Height 66mm
Colour Grey
Maximum Operating Temperature +110°C
Minimum Operating Temperature -55°C
Tillfälligt slut i lager – restorder för leverans 2020-03-05
Pris (ex. moms) Each
99,14 kr
(exkl. moms)
123,92 kr
(inkl. moms)
Enheter
Per unit
1 +
99,14 kr
